SDO HMI 2014-11-15 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.31 | 0.00 | 4.29 | -9.06 | 340.39 | 29.72 | 247.17 | 0.5302 | -421.3 | -323.7 | |
|
previous
or next observation for the same group /

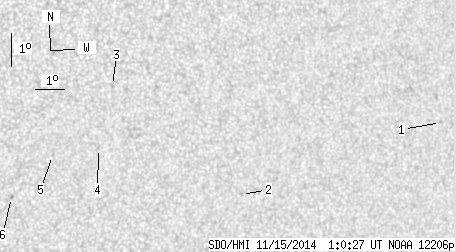

back to the solar disc SDO HMI 2014-11-15 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 1.11 | -8.55 | 348.99 | 38.32 | 253.00 | 0.6436 | -264.0 | -294.4 | |
| 0.00 | 1.29 | 0.00 | 0.77 | -10.52 | 341.91 | 31.24 | 246.23 | 0.5594 | 484.0 | 425.1 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -7.10 | 337.19 | 26.52 | 249.23 | 0.4759 | -722.0 | -569.9 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -9.00 | 336.85 | 26.19 | 245.28 | 0.4818 | -630.0 | -487.2 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -9.17 | 335.33 | 24.67 | 243.63 | 0.4618 | -628.0 | -522.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -10.42 | 334.08 | 23.41 | 239.96 | 0.4533 | -768.0 | -709.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
