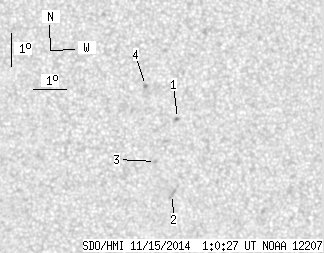

SDO HMI 2014-11-15 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.26 | 0.00 | 4.29 | -9.66 | 323.09 | 12.42 | 224.63 | 0.3041 | 920.8 | 737.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.67 | -8.63 | 323.46 | 12.79 | 227.83 | 0.2966 | 892.0 | 791.8 | |
| 0.00 | 3.53 | 0.00 | 1.84 | -10.94 | 323.39 | 12.72 | 222.31 | 0.3227 | 896.0 | 724.6 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -9.93 | 322.83 | 12.16 | 223.26 | 0.3041 | 966.0 | 662.8 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -7.62 | 322.45 | 11.78 | 228.16 | 0.2728 | 929.0 | 792.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
