group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
12208	33.90	213.56	17.39	109.79	-11.77	307.74	-2.93	168.87	0.2694	-187.3	-190.3

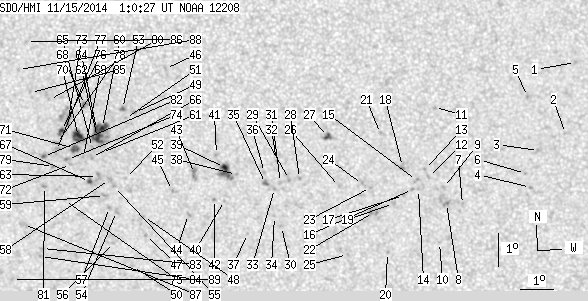

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-11-15 01:00:27 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.55	0.00	0.79	-8.80	319.49	8.82	216.92	0.2535	880.0	682.7
2	0.00	0.95	0.00	0.49	-10.95	319.24	8.57	211.54	0.2811	687.0	523.0
3	0.00	2.92	0.00	1.51	-11.47	318.43	7.76	208.16	0.2818	865.0	571.7
4	0.00	1.38	0.00	0.71	-12.60	318.22	7.55	205.70	0.2970	932.0	681.4
5	0.00	0.95	0.00	0.48	-9.82	318.06	7.39	210.02	0.2545	935.0	739.6
6	0.00	0.95	0.00	0.49	-12.17	318.05	7.39	205.87	0.2893	952.0	798.5
7	0.00	1.29	0.00	0.67	-13.11	316.15	5.48	198.68	0.2918	837.0	657.5
8	0.00	2.92	0.00	1.51	-13.08	315.66	4.99	197.15	0.2887	1064.0	861.3
9	0.00	2.06	0.00	1.06	-12.58	315.56	4.89	197.35	0.2803	793.0	622.1
10	0.00	0.77	0.00	0.40	-14.28	315.47	4.80	195.38	0.3072	647.0	568.2
11	0.00	1.03	0.00	0.53	-10.13	315.25	4.58	199.26	0.2394	753.0	695.0
12	0.00	1.72	0.00	0.89	-12.24	315.10	4.43	196.15	0.2726	890.0	720.6
13	0.00	1.03	0.00	0.53	-12.03	314.97	4.30	195.94	0.2685	858.0	709.6
14	0.00	1.12	0.00	0.58	-12.64	314.80	4.13	194.73	0.2777	668.0	576.2
15	0.00	1.81	0.00	0.93	-12.36	314.73	4.07	194.77	0.2729	902.0	791.8
16	0.00	1.55	0.00	0.80	-12.64	314.61	3.95	194.10	0.2769	843.0	679.0
17	0.00	1.12	0.00	0.58	-12.82	314.34	3.68	193.01	0.2789	948.0	721.8
18	0.00	3.27	0.00	1.68	-11.93	314.30	3.63	193.64	0.2641	832.0	856.0
19	0.00	2.41	0.00	1.24	-13.07	314.04	3.37	191.79	0.2818	930.0	696.7
20	0.00	1.38	0.00	0.72	-14.58	313.88	3.21	190.24	0.3062	814.0	610.7
21	0.00	1.12	0.00	0.57	-10.92	313.62	2.96	192.00	0.2448	957.0	733.3
22	0.00	5.16	0.00	2.66	-13.34	313.43	2.77	189.55	0.2845	593.0	844.7
23	0.00	1.29	0.00	0.66	-12.57	313.34	2.67	189.68	0.2714	758.0	614.3
24	0.00	0.69	0.00	0.35	-12.48	313.09	2.42	188.87	0.2692	952.0	843.5
25	0.00	1.03	0.00	0.54	-14.64	312.65	1.98	186.35	0.3042	812.0	608.7
26	0.00	1.12	0.00	0.57	-12.54	312.39	1.73	186.31	0.2686	861.0	619.6
27	1.98	4.56	1.01	2.33	-11.00	312.02	1.36	185.53	0.2421	1169.5	871.0
28	0.00	1.03	0.00	0.53	-12.29	311.18	0.51	181.91	0.2629	940.0	781.7
29	0.00	1.72	0.00	0.88	-12.32	310.87	0.21	180.77	0.2633	969.0	821.1
30	0.00	1.63	0.00	0.84	-13.77	310.63	-0.04	179.87	0.2877	678.0	529.2
31	0.00	2.15	0.00	1.10	-12.41	310.60	-0.07	179.76	0.2649	803.0	628.2
32	0.00	0.69	0.00	0.35	-11.74	310.48	-0.19	179.28	0.2535	807.0	688.5
33	0.00	0.86	0.00	0.44	-12.60	310.42	-0.25	179.09	0.2680	900.0	813.2
34	0.00	0.43	0.00	0.22	-13.46	310.42	-0.25	179.13	0.2826	767.0	622.2
35	0.00	2.84	0.00	1.46	-12.44	310.15	-0.52	178.07	0.2655	1206.0	963.5
36	0.00	1.12	0.00	0.57	-12.10	310.12	-0.55	177.92	0.2598	772.0	439.8
37	0.00	0.69	0.00	0.36	-13.98	309.59	-1.08	176.40	0.2919	652.0	519.4
38	0.00	0.77	0.00	0.40	-12.16	309.27	-1.40	174.74	0.2618	770.0	589.7
39	2.67	13.76	1.37	7.06	-11.95	308.90	-1.76	173.29	0.2588	-631.3	68.8
40	0.00	1.03	0.00	0.53	-12.96	308.90	-1.77	173.70	0.2759	539.0	417.9
41	0.00	1.55	0.00	0.79	-11.55	308.67	-2.00	172.18	0.2526	-656.0	-602.8
42	0.00	1.03	0.00	0.53	-12.93	308.59	-2.07	172.62	0.2760	899.0	673.5
43	0.00	5.85	0.00	3.00	-12.13	307.99	-2.67	170.01	0.2641	-950.0	-761.5
44	0.00	1.81	0.00	0.93	-13.40	307.79	-2.87	170.13	0.2857	-920.0	-729.8
45	0.00	1.03	0.00	0.53	-12.66	307.32	-3.35	167.98	0.2750	978.0	737.0
46	0.00	1.63	0.00	0.83	-8.93	307.15	-3.51	163.51	0.2144	-821.0	-638.3
47	0.00	0.95	0.00	0.49	-14.05	306.47	-4.20	166.29	0.3009	-753.0	-642.1
48	0.00	0.86	0.00	0.45	-13.46	306.42	-4.25	165.63	0.2916	-830.0	-689.3
49	0.00	1.55	0.00	0.79	-10.27	306.20	-4.47	161.37	0.2410	-1086.0	-884.7
50	0.00	0.43	0.00	0.22	-15.02	306.05	-4.62	165.79	0.3182	-702.0	-645.0
51	0.00	0.95	0.00	0.48	-10.46	305.93	-4.74	160.57	0.2455	-929.0	-697.6
52	0.00	1.38	0.00	0.71	-12.29	305.89	-4.77	162.72	0.2751	-655.0	-447.7
53	0.43	2.67	0.22	1.36	-10.15	305.84	-4.83	159.81	0.2411	-1118.4	-896.3
54	0.00	2.75	0.00	1.43	-13.31	305.60	-5.07	162.84	0.2929	-749.0	-672.4
55	0.00	1.20	0.00	0.62	-12.54	305.55	-5.11	161.86	0.2808	-841.0	-709.5
56	0.00	1.55	0.00	0.81	-14.27	305.48	-5.18	163.44	0.3088	-625.0	-529.0
57	0.00	1.63	0.00	0.85	-13.19	305.39	-5.28	162.04	0.2920	-919.0	-723.2
58	0.00	2.06	0.00	1.06	-12.33	305.40	-5.26	161.12	0.2782	-788.0	-806.1
59	0.00	2.06	0.00	1.07	-12.82	305.24	-5.43	161.16	0.2869	-952.0	-853.9
60	4.90	27.52	2.51	14.10	-10.73	305.22	-5.44	158.38	0.2540	-1218.6	-666.8
61	0.00	0.86	0.00	0.44	-11.50	305.18	-5.49	159.30	0.2664	-762.0	-634.0
62	6.88	-60.00	3.53	-60.00	-11.04	305.07	-5.60	158.26	0.2598	-1159.6	999999
63	0.00	4.21	0.00	2.17	-12.23	305.04	-5.63	159.80	0.2788	-850.0	-855.6
64	2.67	-60.00	1.37	-60.00	-10.80	305.04	-5.63	157.81	0.2562	-1036.8	999999
65	0.00	1.12	0.00	0.57	-11.35	304.91	-5.76	158.16	0.2656	-844.0	-688.2
66	0.00	1.46	0.00	0.75	-11.65	304.87	-5.80	158.46	0.2707	-865.0	-831.6
67	0.95	1.98	0.49	1.02	-12.39	304.79	-5.87	159.19	0.2827	-994.1	-826.3
68	0.00	3.27	0.00	1.67	-10.04	304.69	-5.97	155.33	0.2467	-1186.0	-995.4
69	0.00	1.12	0.00	0.58	-11.62	304.63	-6.04	157.61	0.2717	-939.0	-814.0
70	7.57	11.27	3.88	5.78	-11.01	304.49	-6.18	156.22	0.2632	-1198.4	-841.0
71	3.01	5.25	1.55	2.70	-11.38	304.36	-6.31	156.35	0.2697	-1073.7	-875.7
72	0.00	0.95	0.00	0.49	-11.87	304.23	-6.44	156.64	0.2782	-951.0	-744.7
73	0.60	16.00	0.31	8.19	-10.46	304.20	-6.47	154.32	0.2568	-1157.7	-806.8
74	0.00	1.72	0.00	0.89	-11.72	304.14	-6.53	156.13	0.2764	-831.0	-786.9
75	0.00	0.77	0.00	0.40	-12.98	304.01	-6.65	157.52	0.2966	-650.0	-560.3
76	1.72	3.96	0.88	2.03	-10.83	303.98	-6.69	154.20	0.2640	-1114.6	-867.1
77	0.00	3.78	0.00	1.95	-11.44	303.81	-6.86	154.65	0.2745	-761.0	-749.6
78	0.00	2.49	0.00	1.28	-11.23	303.82	-6.85	154.32	0.2712	-773.0	-714.5
79	0.00	1.12	0.00	0.58	-11.93	303.71	-6.96	155.08	0.2827	-985.0	-830.8
80	0.00	1.20	0.00	0.62	-9.89	303.64	-7.03	151.33	0.2525	-732.0	-653.0
81	0.00	1.46	0.00	0.76	-12.55	303.41	-7.25	155.11	0.2941	-955.0	-875.1
82	0.52	2.06	0.27	1.06	-11.63	303.41	-7.26	153.67	0.2803	-962.5	-770.3
83	0.00	1.55	0.00	0.81	-14.47	303.29	-7.38	157.33	0.3241	-908.0	-646.1
84	0.00	0.86	0.00	0.45	-14.72	303.22	-7.45	157.44	0.3283	-799.0	-618.5
85	0.00	0.86	0.00	0.44	-9.68	303.06	-7.60	148.99	0.2543	-901.0	-651.0
86	0.00	1.20	0.00	0.61	-8.13	302.98	-7.69	145.19	0.2331	-858.0	-689.5
87	0.00	4.13	0.00	2.15	-13.73	302.73	-7.94	154.81	0.3166	-840.0	-652.3
88	0.00	1.12	0.00	0.57	-8.98	302.72	-7.95	146.32	0.2475	-696.0	-545.2
89	0.00	1.46	0.00	0.77	-15.44	302.32	-8.34	155.97	0.3450	-669.0	-510.5

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
