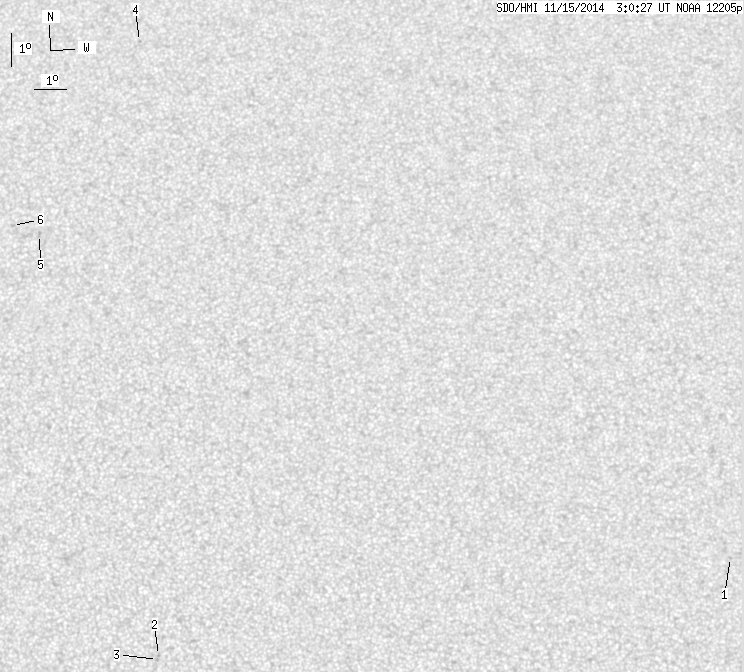

SDO HMI 2014-11-15 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.23 | 0.00 | 3.76 | 16.12 | 302.66 | -6.91 | 278.67 | 0.2852 | -15.7 | -126.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.48 | 10.66 | 320.03 | 10.46 | 307.44 | 0.2258 | -892.0 | -743.2 | |
| 0.00 | 0.95 | 0.00 | 0.47 | 7.79 | 302.75 | -6.82 | 53.75 | 0.1465 | 887.0 | 615.9 | |
| 0.00 | 1.29 | 0.00 | 0.65 | 7.67 | 302.72 | -6.85 | 54.53 | 0.1457 | 891.0 | 688.7 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 26.67 | 301.39 | -8.18 | 17.46 | 0.4254 | 733.0 | 637.6 | |
| 0.00 | 2.06 | 0.00 | 1.09 | 20.52 | 298.55 | -11.02 | 30.46 | 0.3545 | -851.0 | -596.6 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 20.79 | 297.66 | -11.91 | 31.99 | 0.3658 | -862.0 | -646.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
