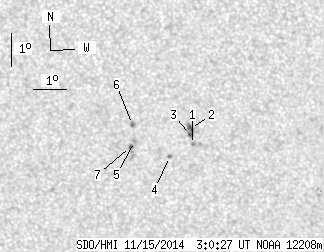

SDO HMI 2014-11-15 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.61 | 19.27 | 1.87 | 9.98 | -10.11 | 298.63 | -10.94 | 140.17 | 0.2928 | 122.1 | -72.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.67 | -10.26 | 299.64 | -9.93 | 143.12 | 0.2841 | 930.0 | 789.6 | |
| 1.89 | 6.54 | 0.98 | 3.37 | -9.77 | 299.59 | -9.98 | 141.92 | 0.2782 | 1177.0 | 905.6 | |
| 0.95 | -2.00 | 0.49 | -2.00 | -9.96 | 299.58 | -9.99 | 142.31 | 0.2806 | 1020.0 | 999999 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -10.63 | 298.92 | -10.65 | 141.99 | 0.2963 | 798.0 | 651.4 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -10.18 | 297.86 | -11.71 | 138.36 | 0.3020 | -1095.0 | -800.1 | |
| 0.00 | 2.41 | 0.00 | 1.25 | -9.67 | 297.82 | -11.75 | 137.07 | 0.2961 | -946.0 | -842.3 | |
| 0.77 | 5.50 | 0.40 | 2.86 | -10.34 | 297.73 | -11.84 | 138.39 | 0.3053 | -999.3 | -737.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
