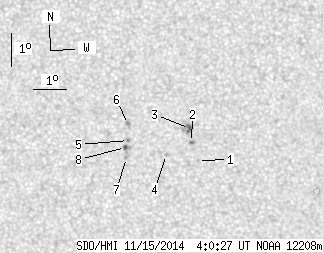

SDO HMI 2014-11-15 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.49 | 20.21 | 1.29 | 10.45 | -10.12 | 298.70 | -10.33 | 141.82 | 0.2864 | -258.8 | -86.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.78 | 299.90 | -9.12 | 146.47 | 0.2832 | -680.0 | -489.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -10.23 | 299.73 | -9.29 | 144.87 | 0.2773 | 927.0 | 802.4 | |
| 1.63 | 6.37 | 0.84 | 3.28 | -9.81 | 299.68 | -9.34 | 143.81 | 0.2719 | 1221.8 | 862.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -10.60 | 298.96 | -10.07 | 143.47 | 0.2899 | 850.0 | 655.8 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -10.19 | 297.81 | -11.22 | 139.56 | 0.2965 | -949.0 | -737.2 | |
| 0.00 | 3.27 | 0.00 | 1.69 | -9.70 | 297.82 | -11.20 | 138.50 | 0.2902 | -1082.0 | -794.4 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -10.70 | 297.72 | -11.30 | 140.49 | 0.3039 | -794.0 | -643.8 | |
| 0.86 | 4.04 | 0.45 | 2.10 | -10.40 | 297.71 | -11.32 | 139.79 | 0.3003 | -995.9 | -818.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
