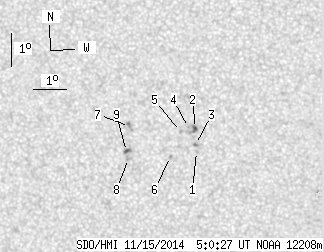

SDO HMI 2014-11-15 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.15 | 20.73 | 1.11 | 10.70 | -10.11 | 298.78 | -9.70 | 143.50 | 0.2797 | 429.6 | 103.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.62 | -10.45 | 299.82 | -8.66 | 147.17 | 0.2742 | 793.0 | 599.1 | |
| 0.95 | 4.65 | 0.49 | 2.39 | -9.75 | 299.81 | -8.67 | 145.67 | 0.2645 | 1147.7 | 897.8 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -10.24 | 299.79 | -8.68 | 146.66 | 0.2714 | 1084.0 | 852.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -9.72 | 299.60 | -8.88 | 144.96 | 0.2662 | 900.0 | 707.8 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -9.84 | 299.35 | -9.13 | 144.49 | 0.2703 | 786.0 | 590.6 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -10.61 | 299.02 | -9.46 | 145.16 | 0.2839 | 936.0 | 678.6 | |
| 0.00 | 3.78 | 0.00 | 1.95 | -9.70 | 297.80 | -10.68 | 139.83 | 0.2845 | -1002.0 | -747.3 | |
| 0.00 | 2.75 | 0.00 | 1.43 | -10.68 | 297.73 | -10.74 | 141.82 | 0.2977 | -664.0 | -650.1 | |
| 1.20 | 2.84 | 0.62 | 1.47 | -10.46 | 297.68 | -10.80 | 141.22 | 0.2955 | -1015.3 | -856.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
