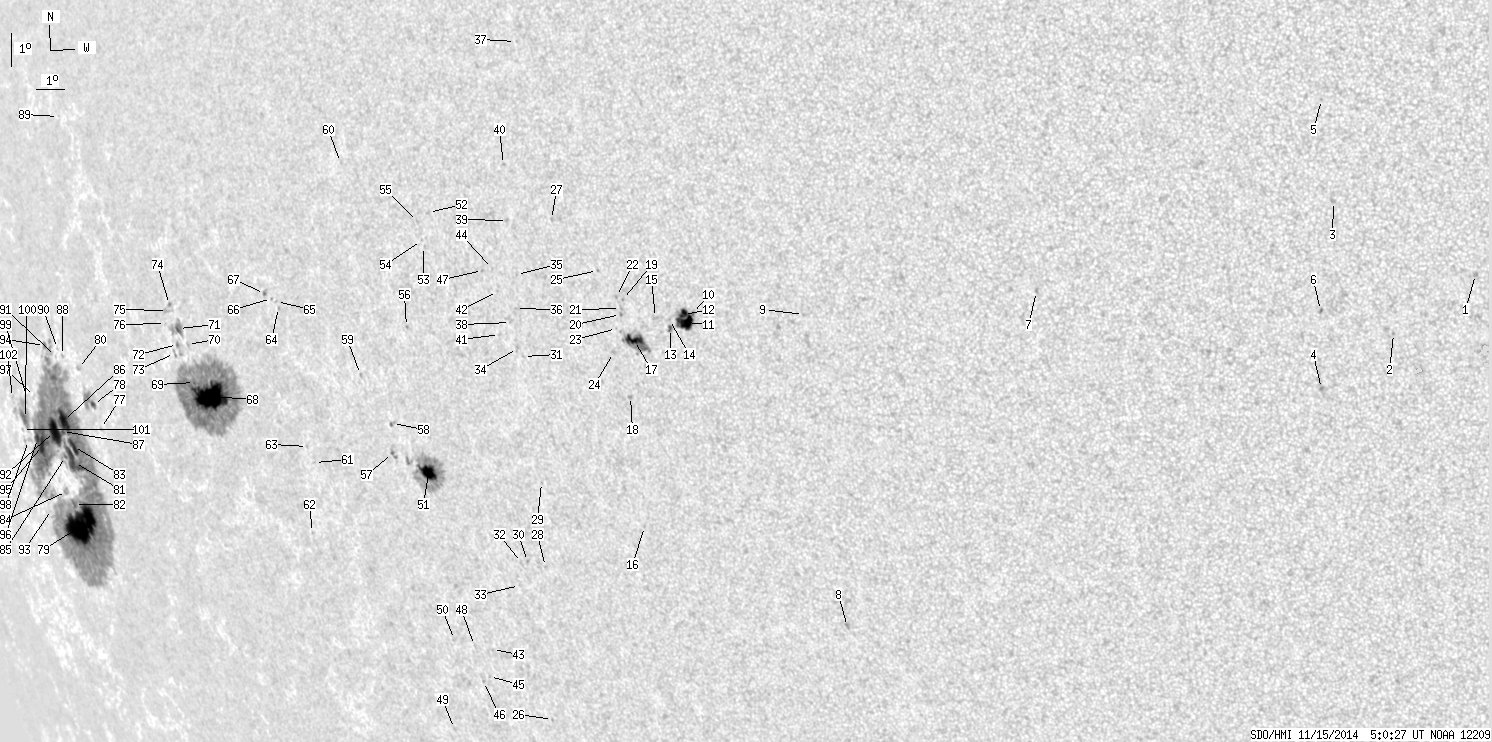

SDO HMI 2014-11-15 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 272.68 | 1530.65 | 307.97 | 1752.09 | -14.43 | 246.24 | -62.23 | 107.81 | 0.8924 | -15.3 | -45.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.15 | 0.00 | 1.10 | -7.51 | 299.53 | -8.94 | 139.29 | 0.2374 | 675.0 | 628.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -9.32 | 296.98 | -11.49 | 136.84 | 0.2887 | 1026.0 | 776.5 | |
| 0.00 | 2.58 | 0.00 | 1.33 | -5.35 | 295.26 | -13.21 | 121.83 | 0.2691 | 476.0 | 400.1 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -11.01 | 294.69 | -13.79 | 135.50 | 0.3353 | 963.0 | 783.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -2.31 | 294.95 | -13.53 | 110.74 | 0.2511 | 877.0 | 712.6 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -8.64 | 294.76 | -13.71 | 130.15 | 0.3080 | 934.0 | 766.9 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -8.20 | 285.81 | -22.67 | 116.20 | 0.4270 | 835.0 | 649.4 | |
| 0.00 | 2.24 | 0.00 | 1.39 | -18.73 | 278.04 | -30.43 | 126.98 | 0.6028 | 727.0 | 685.4 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -9.07 | 277.91 | -30.57 | 111.67 | 0.5426 | 666.0 | 601.7 | |
| 0.26 | 26.92 | 0.16 | 16.65 | -9.14 | 273.93 | -34.54 | 109.57 | 0.5964 | 887.0 | 562.4 | |
| 15.14 | -10.00 | 9.37 | -10.00 | -9.42 | 273.64 | -34.83 | 109.87 | 0.6014 | 942.4 | 999999 | |
| 5.33 | -10.00 | 3.30 | -10.00 | -9.18 | 273.60 | -34.88 | 109.47 | 0.6010 | 903.7 | 999999 | |
| 1.03 | 2.67 | 0.64 | 1.66 | -9.62 | 273.07 | -35.41 | 109.90 | 0.6098 | 464.6 | 333.5 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -9.35 | 273.06 | -35.41 | 109.47 | 0.6087 | -61.0 | -62.8 | |
| 0.00 | 2.84 | 0.00 | 1.78 | -9.30 | 272.55 | -35.92 | 109.15 | 0.6152 | -211.0 | -197.6 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -15.77 | 271.04 | -37.43 | 117.87 | 0.6641 | 452.0 | 342.7 | |
| 10.58 | 35.44 | 6.73 | 22.53 | -10.02 | 271.67 | -36.80 | 109.85 | 0.6295 | -816.8 | -350.0 | |
| 0.00 | 1.98 | 0.00 | 1.28 | -11.74 | 271.27 | -37.21 | 112.23 | 0.6419 | 804.0 | 599.2 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -8.79 | 271.38 | -37.10 | 107.83 | 0.6285 | -740.0 | -605.1 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -9.25 | 271.24 | -37.23 | 108.47 | 0.6319 | -672.0 | -601.5 | |
| 0.00 | 1.98 | 0.00 | 1.26 | -9.07 | 271.27 | -37.21 | 108.20 | 0.6309 | -682.0 | -573.0 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -8.71 | 271.16 | -37.32 | 107.61 | 0.6310 | -248.0 | -235.7 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -9.68 | 271.04 | -37.44 | 109.03 | 0.6362 | 354.0 | 338.7 | |
| 0.00 | 1.81 | 0.00 | 1.16 | -10.41 | 270.82 | -37.65 | 110.04 | 0.6419 | 763.0 | 536.3 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -7.94 | 270.53 | -37.95 | 106.18 | 0.6365 | 713.0 | 572.2 | |
| 0.00 | 1.03 | 0.00 | 0.78 | -22.11 | 265.38 | -43.10 | 122.90 | 0.7562 | 401.0 | 374.2 | |
| 0.00 | 1.55 | 0.00 | 1.01 | -6.45 | 268.91 | -39.56 | 103.36 | 0.6528 | 659.0 | 548.1 | |
| 0.00 | 1.03 | 0.00 | 0.73 | -17.16 | 266.71 | -41.77 | 117.42 | 0.7193 | 633.0 | 503.2 | |
| 0.00 | 1.03 | 0.00 | 0.72 | -14.52 | 267.22 | -41.26 | 114.17 | 0.7021 | 524.0 | 419.8 | |
| 0.00 | 1.29 | 0.00 | 0.93 | -17.03 | 265.99 | -42.48 | 116.89 | 0.7264 | 698.0 | 535.4 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -10.65 | 267.26 | -41.22 | 108.86 | 0.6867 | 630.0 | 523.3 | |
| 0.00 | 1.38 | 0.00 | 0.99 | -17.07 | 265.73 | -42.75 | 116.82 | 0.7294 | 273.0 | 359.5 | |
| 0.00 | 0.69 | 0.00 | 0.50 | -17.81 | 265.42 | -43.05 | 117.61 | 0.7358 | 411.0 | 368.2 | |
| 0.00 | 2.15 | 0.00 | 1.46 | -10.41 | 267.05 | -41.42 | 108.45 | 0.6883 | 633.0 | 479.2 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -8.16 | 267.34 | -41.13 | 105.35 | 0.6776 | 354.0 | 300.1 | |
| 0.00 | 0.69 | 0.00 | 0.47 | -9.19 | 267.16 | -41.31 | 106.77 | 0.6830 | 628.0 | 550.4 | |
| 0.00 | 0.43 | 0.00 | 0.28 | -1.17 | 267.81 | -40.66 | 95.09 | 0.6564 | 506.0 | 498.2 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -9.63 | 266.90 | -41.58 | 107.29 | 0.6876 | 633.0 | 584.7 | |
| 0.00 | 1.81 | 0.00 | 1.21 | -6.54 | 267.17 | -41.30 | 102.95 | 0.6752 | 574.0 | 426.6 | |
| 0.00 | 1.12 | 0.00 | 0.74 | -4.86 | 267.16 | -41.31 | 100.49 | 0.6713 | 686.0 | 472.9 | |
| 0.00 | 0.86 | 0.00 | 0.59 | -10.01 | 266.39 | -42.08 | 107.64 | 0.6949 | 460.0 | 397.5 | |
| 0.00 | 0.60 | 0.00 | 0.41 | -8.70 | 266.51 | -41.97 | 105.84 | 0.6895 | 561.0 | 484.1 | |
| 0.00 | 0.86 | 0.00 | 0.66 | -19.91 | 263.54 | -44.93 | 119.33 | 0.7641 | 575.0 | 467.8 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -8.01 | 266.40 | -42.08 | 104.82 | 0.6888 | 516.0 | 576.0 | |
| 0.00 | 1.03 | 0.00 | 0.80 | -20.80 | 263.07 | -45.40 | 120.18 | 0.7724 | 519.0 | 355.2 | |
| 0.00 | 1.03 | 0.00 | 0.81 | -20.97 | 262.73 | -45.75 | 120.23 | 0.7764 | 608.0 | 490.5 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -8.08 | 265.98 | -42.49 | 104.80 | 0.6941 | 495.0 | 408.4 | |
| 0.00 | 1.03 | 0.00 | 0.80 | -19.81 | 262.77 | -45.71 | 118.86 | 0.7712 | 449.0 | 380.9 | |
| 0.00 | 1.55 | 0.00 | 1.28 | -22.57 | 260.68 | -47.79 | 121.20 | 0.8019 | 391.0 | 282.0 | |
| 0.00 | 1.81 | 0.00 | 1.42 | -19.65 | 261.91 | -46.56 | 118.29 | 0.7789 | 157.0 | 200.0 | |
| 15.83 | 88.43 | 11.89 | 66.47 | -14.38 | 262.45 | -46.02 | 111.98 | 0.7541 | 951.4 | 302.3 | |
| 0.00 | 1.29 | 0.00 | 0.91 | -6.41 | 263.95 | -44.52 | 101.88 | 0.7144 | 466.0 | 412.9 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -7.44 | 263.62 | -44.86 | 103.21 | 0.7208 | 506.0 | 448.3 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -7.26 | 263.55 | -44.92 | 102.95 | 0.7211 | 558.0 | 400.6 | |
| 0.00 | 0.95 | 0.00 | 0.67 | -6.69 | 263.46 | -45.02 | 102.15 | 0.7210 | 463.0 | 325.6 | |
| 0.00 | 1.03 | 0.00 | 0.76 | -9.90 | 262.50 | -45.98 | 106.19 | 0.7400 | 688.0 | 591.6 | |
| 0.60 | 3.78 | 0.46 | 2.91 | -13.84 | 260.98 | -47.49 | 110.77 | 0.7679 | 457.0 | 363.1 | |
| 0.00 | 2.41 | 0.00 | 1.84 | -12.91 | 261.23 | -47.25 | 109.68 | 0.7625 | 663.0 | 526.0 | |
| 0.00 | 1.46 | 0.00 | 1.13 | -11.45 | 260.13 | -48.35 | 107.48 | 0.7701 | 532.0 | 448.2 | |
| 0.00 | 1.12 | 0.00 | 0.84 | -5.04 | 260.28 | -48.19 | 99.23 | 0.7546 | 503.0 | 357.9 | |
| 0.00 | 1.03 | 0.00 | 0.86 | -14.27 | 257.17 | -51.31 | 110.06 | 0.8075 | 582.0 | 458.0 | |
| 0.00 | 1.03 | 0.00 | 0.89 | -16.48 | 256.29 | -52.19 | 112.42 | 0.8217 | 347.0 | 329.8 | |
| 0.00 | 1.12 | 0.00 | 0.94 | -13.78 | 256.98 | -51.50 | 109.42 | 0.8081 | 431.0 | 366.2 | |
| 0.00 | 1.12 | 0.00 | 0.92 | -9.54 | 256.68 | -51.80 | 104.18 | 0.8016 | -490.0 | -335.5 | |
| 0.00 | 0.86 | 0.00 | 0.71 | -9.36 | 256.62 | -51.86 | 103.95 | 0.8018 | -558.0 | -499.6 | |
| 0.00 | 1.12 | 0.00 | 0.93 | -9.28 | 256.39 | -52.08 | 103.79 | 0.8040 | -454.0 | -362.8 | |
| 0.60 | 3.10 | 0.50 | 2.58 | -9.14 | 256.08 | -52.40 | 103.55 | 0.8069 | -422.6 | -389.3 | |
| 54.80 | 346.07 | 50.91 | 321.93 | -12.43 | 252.38 | -56.10 | 106.62 | 0.8480 | 876.8 | 181.2 | |
| 0.86 | -68.00 | 0.81 | -68.00 | -12.03 | 251.63 | -56.85 | 106.00 | 0.8539 | 339.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.13 | -10.87 | 251.60 | -56.87 | 104.65 | 0.8522 | 575.0 | 422.6 | |
| 4.22 | 16.00 | 3.99 | 15.21 | -10.40 | 251.24 | -57.24 | 104.03 | 0.8546 | -3.9 | -31.5 | |
| 0.69 | 4.90 | 0.66 | 4.68 | -10.90 | 251.03 | -57.44 | 104.56 | 0.8572 | 448.4 | 365.3 | |
| 0.00 | 2.24 | 0.00 | 2.15 | -11.18 | 250.77 | -57.70 | 104.84 | 0.8599 | 254.0 | 209.2 | |
| 0.60 | 1.81 | 0.57 | 1.72 | -9.68 | 250.93 | -57.54 | 103.15 | 0.8562 | -433.1 | -303.1 | |
| 0.00 | 3.35 | 0.00 | 3.21 | -9.87 | 250.77 | -57.71 | 103.33 | 0.8580 | 289.0 | 162.4 | |
| 0.00 | 0.26 | 0.00 | 0.25 | -10.28 | 250.54 | -57.94 | 103.75 | 0.8606 | 212.0 | 195.0 | |
| 0.00 | 0.86 | 0.00 | 1.01 | -13.73 | 245.15 | -63.32 | 106.59 | 0.9075 | -420.0 | -378.3 | |
| 2.67 | 18.92 | 3.12 | 22.31 | -12.99 | 245.02 | -63.45 | 105.77 | 0.9075 | 278.3 | -68.8 | |
| 69.08 | 883.62 | 93.75 | 1191.12 | -16.89 | 241.87 | -66.60 | 109.39 | 0.9326 | -710.9 | -147.9 | |
| 0.00 | 2.41 | 0.00 | 2.85 | -11.92 | 244.48 | -64.00 | 104.50 | 0.9102 | -611.0 | -495.6 | |
| 20.90 | -79.00 | 27.06 | -79.00 | -14.89 | 242.64 | -65.83 | 107.40 | 0.9256 | -684.8 | 999999 | |
| 3.53 | -79.00 | 4.78 | -79.00 | -16.24 | 241.77 | -66.70 | 108.68 | 0.9324 | -336.9 | 999999 | |
| 7.91 | -79.00 | 10.12 | -79.00 | -14.39 | 242.86 | -65.61 | 106.90 | 0.9237 | -951.2 | 999999 | |
| 1.46 | 3.87 | 2.01 | 5.32 | -15.85 | 241.40 | -67.07 | 108.21 | 0.9342 | -369.9 | -259.2 | |
| 1.29 | -79.00 | 1.71 | -79.00 | -14.73 | 242.05 | -66.43 | 107.13 | 0.9292 | -264.5 | 999999 | |
| 13.94 | -79.00 | 17.94 | -79.00 | -13.60 | 242.55 | -65.92 | 106.00 | 0.9248 | -915.0 | 999999 | |
| 2.06 | -79.00 | 2.69 | -79.00 | -13.95 | 242.28 | -66.19 | 106.33 | 0.9269 | -538.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 1.58 | -11.56 | 243.49 | -64.98 | 103.96 | 0.9165 | 176.0 | 104.4 | |
| 0.00 | 0.26 | 0.00 | 0.29 | -4.27 | 245.35 | -63.13 | 96.21 | 0.8966 | -304.0 | -300.3 | |
| 0.00 | 0.69 | 0.00 | 0.85 | -11.36 | 243.22 | -65.26 | 103.71 | 0.9182 | 283.0 | 221.5 | |
| 0.00 | 0.60 | 0.00 | 0.75 | -11.62 | 242.96 | -65.52 | 103.94 | 0.9202 | 142.0 | 120.1 | |
| 18.41 | -79.00 | 24.67 | -79.00 | -13.98 | 241.64 | -66.83 | 106.26 | 0.9309 | -38.3 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.90 | -16.49 | 239.69 | -68.79 | 108.60 | 0.9446 | 246.0 | 294.1 | |
| 1.63 | -79.00 | 2.10 | -79.00 | -11.31 | 242.27 | -66.20 | 103.51 | 0.9244 | 59.4 | 999999 | |
| 6.62 | -79.00 | 9.44 | -79.00 | -14.47 | 240.37 | -68.11 | 106.58 | 0.9390 | 982.8 | 999999 | |
| 3.35 | -79.00 | 4.84 | -79.00 | -14.27 | 240.08 | -68.39 | 106.32 | 0.9404 | 590.5 | 999999 | |
| 0.00 | 1.63 | 0.00 | 2.28 | -12.95 | 240.64 | -67.83 | 105.01 | 0.9360 | 427.0 | 359.9 | |
| 0.00 | 4.04 | 0.00 | 6.06 | -14.37 | 239.24 | -69.24 | 106.30 | 0.9452 | 157.0 | 180.6 | |
| 0.00 | 0.26 | 0.00 | 0.37 | -12.95 | 239.98 | -68.50 | 104.92 | 0.9399 | -160.0 | -125.7 | |
| 9.29 | -79.00 | 13.75 | -79.00 | -13.68 | 239.44 | -69.04 | 105.61 | 0.9435 | 525.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.44 | -14.05 | 238.93 | -69.54 | 105.92 | 0.9466 | 85.0 | 34.2 | |
| 0.00 | 1.63 | 0.00 | 2.49 | -13.07 | 238.69 | -69.79 | 104.86 | 0.9472 | -384.0 | -346.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
