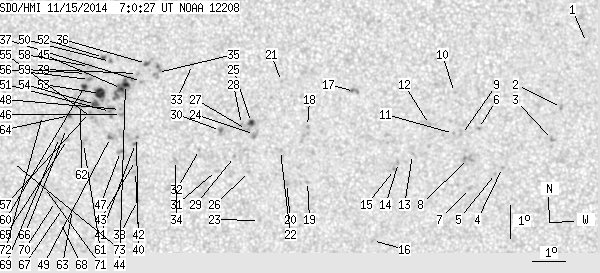

SDO HMI 2014-11-15 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.38 | 166.17 | 8.88 | 85.31 | -11.89 | 307.28 | -0.10 | 178.82 | 0.2640 | -334.0 | -354.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.27 | -9.61 | 319.26 | 11.88 | 223.43 | 0.2965 | 479.0 | 510.7 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -11.58 | 318.56 | 11.18 | 217.45 | 0.3138 | 917.0 | 738.3 | |
| 0.00 | 2.49 | 0.00 | 1.31 | -12.56 | 318.33 | 10.94 | 215.01 | 0.3244 | 902.0 | 697.3 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.41 | 316.81 | 9.43 | 209.74 | 0.3227 | 882.0 | 751.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.59 | 316.60 | 9.22 | 208.90 | 0.3237 | 738.0 | 558.2 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -12.20 | 316.03 | 8.65 | 209.60 | 0.2989 | -714.0 | -557.0 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -14.05 | 315.85 | 8.47 | 206.23 | 0.3246 | 682.0 | 520.5 | |
| 0.00 | 5.08 | 0.00 | 2.64 | -13.12 | 315.75 | 8.37 | 207.33 | 0.3102 | 865.0 | 757.4 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -12.38 | 315.52 | 8.13 | 207.82 | 0.2974 | 656.0 | 485.1 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.09 | 315.27 | 7.88 | 209.27 | 0.2765 | 881.0 | 698.9 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -12.35 | 315.27 | 7.89 | 207.15 | 0.2950 | 844.0 | 718.8 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -12.07 | 314.53 | 7.14 | 205.35 | 0.2853 | 1010.0 | 839.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.98 | 314.03 | 6.65 | 202.51 | 0.2960 | 807.0 | 724.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.23 | 313.61 | 6.22 | 200.91 | 0.2971 | 967.0 | 778.8 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.44 | 313.49 | 6.11 | 200.29 | 0.2998 | 951.0 | 837.5 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -15.65 | 312.87 | 5.49 | 196.21 | 0.3313 | 669.0 | 544.4 | |
| 0.00 | 4.13 | 0.00 | 2.11 | -11.04 | 312.22 | 4.84 | 199.07 | 0.2546 | 735.0 | 858.7 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.10 | 310.81 | 3.43 | 192.79 | 0.2654 | 979.0 | 889.1 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -13.80 | 310.83 | 3.45 | 191.55 | 0.2933 | 561.0 | 567.8 | |
| 0.00 | 2.92 | 0.00 | 1.51 | -13.86 | 310.19 | 2.81 | 189.41 | 0.2923 | 665.0 | 590.7 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.72 | 310.01 | 2.63 | 190.88 | 0.2397 | 847.0 | 659.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.84 | 310.00 | 2.62 | 189.36 | 0.2749 | 873.0 | 771.9 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -15.01 | 309.38 | 1.99 | 186.26 | 0.3095 | 617.0 | 540.6 | |
| 0.00 | 3.96 | 0.00 | 2.03 | -12.34 | 309.20 | 1.82 | 186.77 | 0.2648 | 391.0 | 472.7 | |
| 1.98 | 3.44 | 1.01 | 1.76 | -11.98 | 309.11 | 1.73 | 186.59 | 0.2584 | -631.7 | -266.9 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.48 | 309.06 | 1.68 | 185.78 | 0.2836 | 729.0 | 540.3 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -12.19 | 308.96 | 1.58 | 185.93 | 0.2617 | 45.0 | 0.7 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -12.04 | 308.81 | 1.43 | 185.42 | 0.2589 | -810.0 | -659.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -13.02 | 308.60 | 1.22 | 184.33 | 0.2751 | 763.0 | 470.8 | |
| 0.00 | 3.27 | 0.00 | 1.68 | -12.22 | 308.17 | 0.79 | 182.97 | 0.2612 | -1073.0 | -856.3 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -13.45 | 308.05 | 0.67 | 182.32 | 0.2818 | -643.0 | -581.1 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.80 | 307.53 | 0.15 | 180.55 | 0.2707 | 663.0 | 441.0 | |
| 0.00 | 1.46 | 0.00 | 0.74 | -10.20 | 307.33 | -0.06 | 179.75 | 0.2265 | -858.0 | -636.1 | |
| 0.00 | 2.75 | 0.00 | 1.42 | -13.14 | 306.80 | -0.58 | 177.95 | 0.2766 | -725.0 | -509.7 | |
| 0.00 | 6.37 | 0.00 | 3.24 | -10.44 | 306.27 | -1.11 | 175.24 | 0.2314 | -610.0 | -737.4 | |
| 0.00 | 2.32 | 0.00 | 1.18 | -10.17 | 305.94 | -1.44 | 173.71 | 0.2273 | -1159.0 | -926.8 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -10.72 | 305.79 | -1.60 | 173.33 | 0.2369 | -926.0 | -761.7 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -14.38 | 305.64 | -1.75 | 174.30 | 0.2986 | -866.0 | -777.8 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -10.47 | 305.67 | -1.72 | 172.70 | 0.2330 | -879.0 | -684.0 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -12.43 | 305.62 | -1.76 | 173.49 | 0.2661 | -879.0 | -745.0 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -12.62 | 305.59 | -1.79 | 173.46 | 0.2693 | -891.0 | -754.0 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -13.48 | 305.58 | -1.80 | 173.79 | 0.2837 | -747.0 | -658.0 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.14 | 305.59 | -1.80 | 173.66 | 0.2781 | -887.0 | -710.9 | |
| 2.41 | 22.71 | 1.23 | 11.59 | -10.81 | 305.30 | -2.08 | 171.40 | 0.2395 | -1228.9 | -878.6 | |
| 1.72 | -44.00 | 0.88 | -44.00 | -10.93 | 305.18 | -2.20 | 170.98 | 0.2419 | -1283.8 | 999999 | |
| 0.00 | 2.15 | 0.00 | 1.10 | -11.73 | 305.17 | -2.21 | 171.45 | 0.2553 | -906.0 | -758.7 | |
| 0.00 | 2.49 | 0.00 | 1.28 | -12.86 | 305.13 | -2.25 | 171.94 | 0.2744 | -882.0 | -799.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.57 | 305.14 | -2.24 | 171.25 | 0.2528 | -884.0 | -718.7 | |
| 0.00 | 2.92 | 0.00 | 1.50 | -12.43 | 304.83 | -2.55 | 170.62 | 0.2680 | -1073.0 | -896.1 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -10.11 | 304.86 | -2.53 | 169.02 | 0.2291 | -992.0 | -866.0 | |
| 0.00 | 5.68 | 0.00 | 2.91 | -11.64 | 304.84 | -2.54 | 170.13 | 0.2546 | -1107.0 | -911.4 | |
| 0.52 | 1.89 | 0.26 | 0.96 | -9.99 | 304.65 | -2.74 | 168.02 | 0.2278 | -1125.3 | -901.0 | |
| 6.45 | 10.24 | 3.30 | 5.23 | -11.08 | 304.54 | -2.84 | 168.57 | 0.2464 | -1253.8 | -906.2 | |
| 2.15 | 4.04 | 1.10 | 2.07 | -11.42 | 304.39 | -2.99 | 168.24 | 0.2525 | -1107.0 | -933.0 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.82 | 304.26 | -3.12 | 168.10 | 0.2596 | -910.0 | -865.3 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -10.66 | 304.22 | -3.17 | 166.89 | 0.2405 | -1192.0 | -983.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -11.67 | 304.20 | -3.18 | 167.75 | 0.2572 | -996.0 | -879.8 | |
| 0.00 | 2.67 | 0.00 | 1.36 | -10.26 | 304.22 | -3.16 | 166.52 | 0.2339 | -1031.0 | -807.9 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.48 | 304.13 | -3.26 | 166.35 | 0.2378 | -1030.0 | -893.1 | |
| 1.55 | 4.04 | 0.79 | 2.07 | -10.87 | 304.06 | -3.32 | 166.49 | 0.2446 | -1095.8 | -831.2 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -12.62 | 304.01 | -3.37 | 167.83 | 0.2736 | -954.0 | -765.5 | |
| 0.00 | 7.31 | 0.00 | 3.74 | -11.42 | 303.93 | -3.45 | 166.52 | 0.2542 | -680.0 | -735.8 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -14.66 | 303.64 | -3.74 | 168.12 | 0.3084 | -819.0 | -701.9 | |
| 0.60 | 2.15 | 0.31 | 1.10 | -11.76 | 303.60 | -3.79 | 165.59 | 0.2611 | -1009.9 | -864.6 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -12.50 | 303.52 | -3.86 | 166.03 | 0.2735 | -1001.0 | -696.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.16 | 303.50 | -3.89 | 165.63 | 0.2681 | -544.0 | -573.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -14.63 | 303.33 | -4.05 | 167.16 | 0.3090 | -892.0 | -783.3 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -15.07 | 303.26 | -4.12 | 167.27 | 0.3163 | -596.0 | -438.0 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -12.44 | 303.28 | -4.10 | 165.13 | 0.2735 | -831.0 | -666.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -14.41 | 303.12 | -4.26 | 166.35 | 0.3063 | -805.0 | -668.5 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -13.98 | 302.79 | -4.59 | 164.96 | 0.3006 | -873.0 | -677.5 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -11.76 | 302.78 | -4.61 | 162.65 | 0.2650 | -775.0 | -597.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.21 | 301.83 | -5.55 | 161.16 | 0.2930 | -779.0 | -578.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
