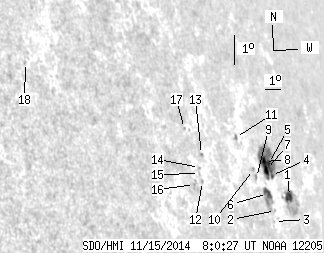

SDO HMI 2014-11-15 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.85 | 91.61 | 30.60 | 125.85 | 13.87 | 15.67 | 68.83 | 283.80 | 0.9333 | -346.0 | -88.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.94 | 23.05 | 8.71 | 33.97 | 13.25 | 17.28 | 70.44 | 283.07 | 0.9431 | -327.8 | -40.6 | |
| 0.00 | 0.86 | 0.00 | 1.18 | 12.89 | 15.80 | 68.96 | 282.73 | 0.9343 | -344.0 | -309.4 | |
| 0.00 | 0.26 | 0.00 | 0.35 | 12.57 | 15.53 | 68.69 | 282.40 | 0.9326 | -431.0 | -355.7 | |
| 1.20 | 39.48 | 1.69 | 54.95 | 13.94 | 16.12 | 69.29 | 283.85 | 0.9365 | 60.6 | 13.8 | |
| 1.98 | -4.00 | 2.77 | -4.00 | 14.31 | 16.11 | 69.27 | 284.24 | 0.9365 | -28.6 | 999999 | |
| 4.56 | 15.40 | 6.18 | 20.82 | 13.43 | 15.45 | 68.61 | 283.32 | 0.9323 | -571.7 | -440.6 | |
| 4.64 | -4.00 | 6.40 | -4.00 | 14.14 | 15.82 | 68.98 | 284.07 | 0.9348 | -591.2 | 999999 | |
| 3.53 | -4.00 | 4.85 | -4.00 | 14.39 | 15.81 | 68.97 | 284.33 | 0.9348 | -687.2 | 999999 | |
| 0.00 | 1.20 | 0.00 | 1.59 | 13.94 | 14.85 | 68.01 | 283.90 | 0.9287 | -478.0 | -378.6 | |
| 0.00 | 1.29 | 0.00 | 1.70 | 14.19 | 14.75 | 67.92 | 284.17 | 0.9282 | -465.0 | -420.7 | |
| 0.00 | 1.72 | 0.00 | 2.20 | 15.21 | 13.95 | 67.11 | 285.32 | 0.9234 | -498.0 | -476.0 | |
| 0.00 | 0.95 | 0.00 | 1.07 | 14.00 | 10.78 | 63.94 | 284.20 | 0.9010 | 281.0 | 252.0 | |
| 0.00 | 1.38 | 0.00 | 1.58 | 14.81 | 11.14 | 64.30 | 285.07 | 0.9040 | -530.0 | -491.2 | |
| 0.00 | 0.95 | 0.00 | 1.07 | 14.43 | 10.79 | 63.95 | 284.68 | 0.9013 | 300.0 | 265.1 | |
| 0.00 | 0.69 | 0.00 | 0.78 | 14.25 | 10.70 | 63.86 | 284.49 | 0.9005 | 315.0 | 247.5 | |
| 0.00 | 2.49 | 0.00 | 2.77 | 13.93 | 10.19 | 63.35 | 284.17 | 0.8966 | 563.0 | 449.0 | |
| 0.00 | 0.60 | 0.00 | 0.68 | 15.64 | 10.41 | 63.57 | 286.05 | 0.8992 | -471.0 | -517.1 | |
| 0.00 | 1.29 | 0.00 | 1.14 | 18.03 | 1.89 | 55.05 | 289.91 | 0.8312 | 499.0 | 469.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
