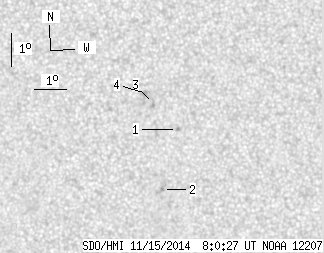

SDO HMI 2014-11-15 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.17 | 0.00 | 4.29 | -8.58 | 322.90 | 16.06 | 234.51 | 0.3381 | 859.8 | 724.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 0.86 | -8.68 | 323.52 | 16.68 | 235.18 | 0.3471 | 949.0 | 738.1 | |
| 0.00 | 1.98 | 0.00 | 1.05 | -10.49 | 323.14 | 16.30 | 230.38 | 0.3598 | 830.0 | 764.0 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -7.88 | 322.73 | 15.90 | 235.87 | 0.3292 | 708.0 | 661.2 | |
| 0.00 | 2.84 | 0.00 | 1.48 | -7.58 | 322.47 | 15.64 | 236.22 | 0.3229 | 952.0 | 727.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
