SDO HMI 2014-11-15 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 314.81 | 1629.70 | 343.11 | 1768.23 | -14.36 | 246.19 | -60.65 | 108.05 | 0.8807 | 56.3 | -44.7 | |
|
previous
or next observation for the same group /

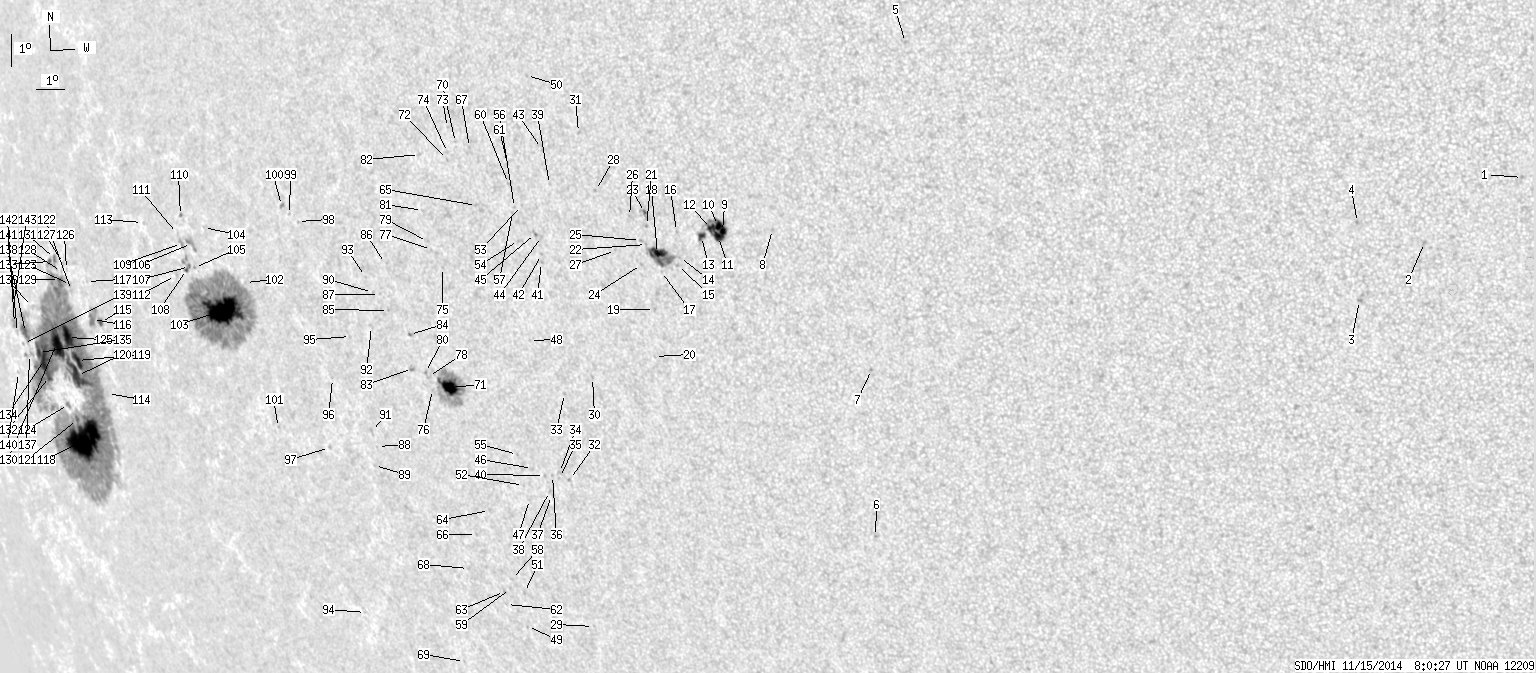

back to the solar disc SDO HMI 2014-11-15 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.65 | -7.25 | 299.87 | -6.97 | 145.40 | 0.2131 | 740.0 | 627.4 | |
| 0.00 | 2.15 | 0.00 | 1.11 | -9.23 | 296.85 | -9.99 | 140.57 | 0.2707 | 929.0 | 674.1 | |
| 0.00 | 1.89 | 0.00 | 0.99 | -11.02 | 294.79 | -12.05 | 139.30 | 0.3155 | 945.0 | 794.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -8.65 | 294.82 | -12.02 | 133.85 | 0.2867 | 950.0 | 718.8 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -3.46 | 280.70 | -26.14 | 103.35 | 0.4539 | 663.0 | 627.8 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -18.64 | 278.09 | -28.75 | 128.32 | 0.5832 | 687.0 | 588.9 | |
| 0.00 | 0.86 | 0.00 | 0.50 | -13.40 | 278.77 | -28.07 | 120.88 | 0.5354 | 696.0 | 569.7 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -9.19 | 275.81 | -31.03 | 111.57 | 0.5493 | 651.0 | 512.5 | |
| 4.56 | 38.28 | 2.75 | 23.18 | -9.29 | 274.02 | -32.81 | 110.71 | 0.5740 | 1184.8 | 433.2 | |
| 4.99 | -9.00 | 3.01 | -9.00 | -9.12 | 273.90 | -32.94 | 110.34 | 0.5748 | 1059.8 | 999999 | |
| 6.02 | -9.00 | 3.64 | -9.00 | -9.45 | 273.86 | -32.98 | 110.87 | 0.5768 | 860.9 | 999999 | |
| 4.30 | -9.00 | 2.61 | -9.00 | -9.21 | 273.64 | -33.20 | 110.36 | 0.5788 | 761.3 | 999999 | |
| 2.92 | -9.00 | 1.78 | -9.00 | -9.47 | 273.25 | -33.59 | 110.56 | 0.5851 | 673.8 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.48 | -10.13 | 272.37 | -34.47 | 111.16 | 0.5997 | -575.0 | -471.3 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -10.37 | 272.26 | -34.57 | 111.49 | 0.6021 | 271.0 | 171.4 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -9.34 | 272.35 | -34.48 | 109.89 | 0.5964 | -470.0 | -309.2 | |
| 0.00 | 1.03 | 0.00 | 0.64 | -10.57 | 271.65 | -35.19 | 111.47 | 0.6110 | 502.0 | 337.7 | |
| 10.67 | 31.48 | 6.65 | 19.61 | -10.03 | 271.57 | -35.27 | 110.58 | 0.6096 | -813.3 | -429.2 | |
| 0.00 | 1.20 | 0.00 | 0.76 | -11.75 | 271.22 | -35.62 | 113.04 | 0.6219 | 751.0 | 609.6 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -13.20 | 270.99 | -35.85 | 115.08 | 0.6319 | 560.0 | 438.7 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -9.19 | 271.27 | -35.57 | 109.12 | 0.6100 | -526.0 | -477.5 | |
| 0.00 | 0.60 | 0.00 | 0.38 | -9.77 | 271.20 | -35.64 | 109.99 | 0.6133 | 245.0 | 261.6 | |
| 0.52 | 4.04 | 0.32 | 2.52 | -8.79 | 271.24 | -35.60 | 108.48 | 0.6088 | -797.3 | -576.8 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -10.38 | 270.93 | -35.91 | 110.81 | 0.6194 | 651.0 | 549.5 | |
| 0.00 | 1.20 | 0.00 | 0.75 | -9.65 | 270.99 | -35.85 | 109.71 | 0.6156 | 476.0 | 342.9 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -8.93 | 270.67 | -36.17 | 108.44 | 0.6169 | 611.0 | 527.6 | |
| 0.00 | 0.77 | 0.00 | 0.49 | -9.98 | 270.01 | -36.83 | 109.75 | 0.6295 | 525.0 | 437.2 | |
| 0.00 | 1.20 | 0.00 | 0.77 | -8.18 | 269.48 | -37.36 | 106.76 | 0.6296 | 617.0 | 489.5 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -21.87 | 266.37 | -40.46 | 124.04 | 0.7292 | 623.0 | 553.4 | |
| 0.00 | 1.29 | 0.00 | 0.85 | -13.92 | 268.47 | -38.36 | 114.75 | 0.6657 | 600.0 | 451.7 | |
| 0.00 | 1.38 | 0.00 | 0.88 | -6.45 | 269.01 | -37.83 | 103.90 | 0.6301 | 632.0 | 527.1 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -17.16 | 266.81 | -40.02 | 118.28 | 0.7002 | 653.0 | 574.6 | |
| 0.00 | 1.20 | 0.00 | 0.81 | -14.45 | 267.26 | -39.58 | 114.87 | 0.6824 | 524.0 | 418.4 | |
| 0.00 | 1.72 | 0.00 | 1.19 | -16.95 | 266.46 | -40.38 | 117.82 | 0.7030 | 695.0 | 620.4 | |
| 0.00 | 0.60 | 0.00 | 0.42 | -17.10 | 266.42 | -40.42 | 118.01 | 0.7042 | 505.0 | 525.7 | |
| 0.00 | 0.77 | 0.00 | 0.54 | -17.05 | 266.15 | -40.69 | 117.79 | 0.7070 | 638.0 | 599.8 | |
| 0.00 | 0.34 | 0.00 | 0.24 | -17.69 | 265.93 | -40.91 | 118.51 | 0.7123 | 516.0 | 528.5 | |
| 0.00 | 1.03 | 0.00 | 0.73 | -17.56 | 265.88 | -40.95 | 118.33 | 0.7123 | 629.0 | 532.4 | |
| 0.00 | 1.03 | 0.00 | 0.67 | -8.05 | 267.73 | -39.11 | 105.89 | 0.6517 | 763.0 | 594.4 | |
| 0.00 | 1.12 | 0.00 | 0.78 | -17.06 | 265.81 | -41.02 | 117.64 | 0.7107 | 660.0 | 523.8 | |
| 0.00 | 1.20 | 0.00 | 0.80 | -10.44 | 267.09 | -39.74 | 109.14 | 0.6679 | 615.0 | 509.6 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -10.19 | 267.13 | -39.71 | 108.80 | 0.6665 | 703.0 | 565.4 | |
| 0.00 | 1.72 | 0.00 | 1.12 | -6.97 | 267.54 | -39.30 | 104.20 | 0.6508 | 402.0 | 307.6 | |
| 0.00 | 1.46 | 0.00 | 0.97 | -9.64 | 267.21 | -39.62 | 108.03 | 0.6636 | 717.0 | 460.0 | |
| 0.00 | 2.58 | 0.00 | 1.71 | -9.56 | 266.99 | -39.85 | 107.82 | 0.6661 | 621.0 | 589.9 | |
| 0.00 | 1.55 | 0.00 | 1.09 | -16.86 | 265.37 | -41.46 | 117.15 | 0.7145 | 227.0 | 303.4 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -17.85 | 264.97 | -41.87 | 118.23 | 0.7234 | 561.0 | 537.2 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -12.85 | 266.19 | -40.65 | 112.15 | 0.6881 | 527.0 | 418.3 | |
| 0.00 | 0.77 | 0.00 | 0.59 | -21.97 | 263.49 | -43.34 | 122.59 | 0.7578 | 434.0 | 376.9 | |
| 0.00 | 1.29 | 0.00 | 0.84 | -4.80 | 267.15 | -39.69 | 100.79 | 0.6502 | 529.0 | 380.9 | |
| 0.00 | 1.46 | 0.00 | 1.09 | -20.86 | 263.78 | -43.06 | 121.39 | 0.7497 | 530.0 | 404.9 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -17.41 | 264.84 | -41.99 | 117.60 | 0.7227 | 459.0 | 392.5 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -8.72 | 266.55 | -40.28 | 106.44 | 0.6687 | 616.0 | 523.5 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -9.79 | 266.28 | -40.55 | 107.89 | 0.6756 | 452.0 | 415.3 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -16.43 | 264.86 | -41.97 | 116.35 | 0.7182 | 535.0 | 453.2 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -8.79 | 266.27 | -40.57 | 106.44 | 0.6725 | 518.0 | 467.1 | |
| 0.00 | 1.38 | 0.00 | 0.92 | -8.95 | 266.17 | -40.67 | 106.63 | 0.6742 | 304.0 | 327.3 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -20.45 | 263.35 | -43.48 | 120.68 | 0.7520 | 542.0 | 426.9 | |
| 0.00 | 0.43 | 0.00 | 0.32 | -20.75 | 263.20 | -43.64 | 120.96 | 0.7549 | 501.0 | 490.0 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -8.07 | 266.12 | -40.71 | 105.35 | 0.6721 | 525.0 | 442.9 | |
| 0.00 | 1.03 | 0.00 | 0.69 | -7.47 | 266.16 | -40.68 | 104.48 | 0.6699 | 279.0 | 292.4 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -21.28 | 262.83 | -44.01 | 121.42 | 0.7610 | 499.0 | 401.4 | |
| 0.00 | 0.52 | 0.00 | 0.39 | -20.86 | 262.90 | -43.94 | 120.94 | 0.7584 | 525.0 | 451.2 | |
| 0.00 | 1.20 | 0.00 | 0.89 | -18.26 | 263.14 | -43.70 | 117.85 | 0.7444 | 316.0 | 258.1 | |
| 0.00 | 1.29 | 0.00 | 0.88 | -8.78 | 264.74 | -42.09 | 105.89 | 0.6912 | 511.0 | 454.1 | |
| 0.00 | 1.12 | 0.00 | 0.84 | -19.05 | 262.31 | -44.53 | 118.45 | 0.7563 | 590.0 | 472.7 | |
| 0.00 | 0.86 | 0.00 | 0.58 | -7.03 | 264.69 | -42.15 | 103.39 | 0.6870 | 459.0 | 428.4 | |
| 0.00 | 1.46 | 0.00 | 1.13 | -20.16 | 261.55 | -45.29 | 119.46 | 0.7685 | 117.0 | 184.8 | |
| 0.00 | 0.60 | 0.00 | 0.49 | -23.24 | 260.08 | -46.76 | 122.42 | 0.7952 | 377.0 | 302.9 | |
| 0.00 | 0.43 | 0.00 | 0.29 | -6.90 | 264.13 | -42.71 | 103.04 | 0.6935 | 509.0 | 457.8 | |
| 14.54 | 76.04 | 10.59 | 55.40 | -14.43 | 262.51 | -44.33 | 112.69 | 0.7358 | 944.9 | 327.5 | |
| 0.00 | 1.20 | 0.00 | 0.83 | -7.43 | 263.74 | -43.10 | 103.67 | 0.6996 | 430.0 | 480.0 | |
| 0.00 | 0.77 | 0.00 | 0.53 | -6.46 | 263.85 | -42.98 | 102.34 | 0.6958 | 583.0 | 497.7 | |
| 0.00 | 1.03 | 0.00 | 0.71 | -7.22 | 263.77 | -43.07 | 103.38 | 0.6987 | 559.0 | 470.4 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -10.72 | 263.03 | -43.81 | 107.98 | 0.7175 | 398.0 | 306.0 | |
| 0.00 | 1.03 | 0.00 | 0.76 | -14.51 | 261.75 | -45.09 | 112.50 | 0.7444 | -162.0 | -168.7 | |
| 0.00 | 0.77 | 0.00 | 0.55 | -10.19 | 262.66 | -44.18 | 107.13 | 0.7201 | 458.0 | 396.0 | |
| 0.00 | 1.55 | 0.00 | 1.14 | -14.11 | 261.68 | -45.16 | 111.96 | 0.7438 | 438.0 | 362.9 | |
| 0.00 | 0.60 | 0.00 | 0.43 | -9.95 | 262.53 | -44.31 | 106.77 | 0.7209 | 726.0 | 579.7 | |
| 0.00 | 1.38 | 0.00 | 1.02 | -13.99 | 261.58 | -45.26 | 111.77 | 0.7444 | 583.0 | 425.6 | |
| 0.00 | 1.20 | 0.00 | 0.85 | -9.01 | 262.48 | -44.36 | 105.48 | 0.7189 | 306.0 | 266.0 | |
| 0.00 | 1.55 | 0.00 | 1.09 | -7.32 | 262.59 | -44.24 | 103.19 | 0.7131 | 578.0 | 443.5 | |
| 0.00 | 3.01 | 0.00 | 2.25 | -13.89 | 261.04 | -45.80 | 111.43 | 0.7499 | 557.0 | 458.1 | |
| 0.34 | 1.81 | 0.25 | 1.33 | -12.84 | 261.17 | -45.67 | 110.12 | 0.7451 | 608.5 | 636.7 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -12.13 | 260.41 | -46.43 | 108.94 | 0.7512 | -304.0 | -287.4 | |
| 0.00 | 0.52 | 0.00 | 0.38 | -10.69 | 260.59 | -46.25 | 107.12 | 0.7451 | 511.0 | 412.2 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -11.65 | 260.12 | -46.72 | 108.22 | 0.7530 | 563.0 | 430.2 | |
| 0.00 | 0.77 | 0.00 | 0.61 | -16.40 | 258.72 | -48.12 | 113.70 | 0.7823 | 256.0 | 348.8 | |
| 0.00 | 0.52 | 0.00 | 0.41 | -17.01 | 258.37 | -48.47 | 114.31 | 0.7878 | 507.0 | 467.5 | |
| 0.00 | 0.60 | 0.00 | 0.45 | -11.60 | 259.82 | -47.02 | 108.06 | 0.7561 | 489.0 | 394.1 | |
| 0.00 | 2.41 | 0.00 | 1.91 | -15.94 | 258.59 | -48.25 | 113.09 | 0.7821 | 87.0 | 178.6 | |
| 0.00 | 2.32 | 0.00 | 1.77 | -12.65 | 259.53 | -47.31 | 109.31 | 0.7623 | 442.0 | 289.3 | |
| 0.00 | 0.52 | 0.00 | 0.39 | -11.12 | 259.61 | -47.23 | 107.38 | 0.7570 | 407.0 | 338.2 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -21.80 | 255.92 | -50.92 | 119.01 | 0.8264 | 462.0 | 442.7 | |
| 0.00 | 1.12 | 0.00 | 0.87 | -13.00 | 258.48 | -48.36 | 109.41 | 0.7743 | 190.0 | 237.5 | |
| 0.00 | 0.77 | 0.00 | 0.62 | -14.34 | 257.26 | -49.58 | 110.67 | 0.7906 | 465.0 | 448.4 | |
| 0.00 | 1.55 | 0.00 | 1.29 | -16.52 | 256.39 | -50.45 | 113.02 | 0.8054 | 461.0 | 388.2 | |
| 0.00 | 0.34 | 0.00 | 0.27 | -9.55 | 256.82 | -50.01 | 104.61 | 0.7831 | -550.0 | -533.0 | |
| 0.00 | 1.12 | 0.00 | 0.89 | -9.35 | 256.49 | -50.35 | 104.27 | 0.7862 | -363.0 | -273.8 | |
| 0.00 | 2.06 | 0.00 | 1.66 | -9.09 | 256.16 | -50.68 | 103.87 | 0.7891 | -574.0 | -437.5 | |
| 0.00 | 0.95 | 0.00 | 0.83 | -15.99 | 254.03 | -52.80 | 111.63 | 0.8260 | 524.0 | 437.6 | |
| 0.00 | 1.03 | 0.00 | 0.88 | -11.52 | 253.82 | -53.02 | 106.28 | 0.8176 | 327.0 | 343.3 | |
| 61.76 | 357.83 | 54.94 | 319.21 | -12.43 | 252.42 | -54.42 | 107.01 | 0.8328 | 860.8 | 158.2 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -9.92 | 252.08 | -54.76 | 103.96 | 0.8312 | -295.0 | -250.0 | |
| 0.00 | 0.95 | 0.00 | 0.86 | -11.17 | 251.26 | -55.58 | 105.26 | 0.8410 | 616.0 | 579.9 | |
| 0.00 | 7.14 | 0.00 | 6.47 | -10.43 | 251.30 | -55.53 | 104.41 | 0.8393 | -51.0 | 108.9 | |
| 0.86 | 8.09 | 0.79 | 7.43 | -11.15 | 250.99 | -55.84 | 105.18 | 0.8434 | 541.3 | 367.1 | |
| 1.20 | -107.00 | 1.11 | -107.00 | -11.25 | 250.80 | -56.04 | 105.25 | 0.8453 | 385.7 | 999999 | |
| 0.00 | 3.96 | 0.00 | 3.63 | -10.46 | 250.76 | -56.08 | 104.32 | 0.8443 | 157.0 | 174.8 | |
| 0.43 | 1.29 | 0.39 | 1.17 | -9.60 | 250.93 | -55.91 | 103.35 | 0.8414 | -386.0 | -321.5 | |
| 0.00 | 1.46 | 0.00 | 1.35 | -10.16 | 250.62 | -56.22 | 103.94 | 0.8451 | 201.0 | 183.5 | |
| 0.00 | 0.60 | 0.00 | 0.57 | -11.46 | 250.13 | -56.71 | 105.35 | 0.8516 | 321.0 | 185.7 | |
| 0.00 | 0.60 | 0.00 | 0.58 | -9.90 | 248.73 | -58.10 | 103.28 | 0.8614 | -386.0 | -379.1 | |
| 0.00 | 1.46 | 0.00 | 1.67 | -15.34 | 244.40 | -62.44 | 108.51 | 0.9034 | -320.0 | -309.9 | |
| 2.49 | 18.75 | 2.76 | 20.93 | -13.12 | 245.02 | -61.82 | 106.19 | 0.8958 | 400.3 | 93.1 | |
| 4.73 | -115.00 | 5.32 | -115.00 | -13.05 | 244.52 | -62.31 | 106.02 | 0.8994 | 120.2 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.86 | -11.88 | 244.63 | -62.21 | 104.76 | 0.8971 | -572.0 | -485.7 | |
| 77.50 | 949.27 | 98.48 | 1198.18 | -16.88 | 241.93 | -64.90 | 109.69 | 0.9221 | -680.5 | -153.6 | |
| 9.29 | -118.00 | 11.17 | -118.00 | -14.39 | 242.84 | -63.99 | 107.17 | 0.9130 | -935.0 | 999999 | |
| 22.97 | -118.00 | 27.98 | -118.00 | -14.86 | 242.58 | -64.25 | 107.64 | 0.9153 | -671.1 | 999999 | |
| 2.06 | -118.00 | 2.62 | -118.00 | -16.27 | 241.74 | -65.10 | 108.99 | 0.9225 | -375.8 | 999999 | |
| 0.00 | 1.38 | 0.00 | 1.60 | -12.20 | 243.49 | -63.35 | 104.92 | 0.9059 | -497.0 | -511.6 | |
| 0.00 | 1.98 | 0.00 | 2.29 | -12.02 | 243.50 | -63.34 | 104.72 | 0.9056 | -412.0 | -443.3 | |
| 1.55 | 3.27 | 1.99 | 4.21 | -15.82 | 241.36 | -65.48 | 108.44 | 0.9244 | -358.0 | -264.2 | |
| 15.74 | -118.00 | 19.06 | -118.00 | -13.69 | 242.50 | -64.34 | 106.36 | 0.9145 | -877.2 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.30 | -11.56 | 243.42 | -63.42 | 104.21 | 0.9056 | 185.0 | 179.7 | |
| 0.00 | 1.72 | 0.00 | 2.00 | -11.39 | 243.29 | -63.55 | 103.99 | 0.9064 | 297.0 | 234.5 | |
| 0.00 | 0.26 | 0.00 | 0.30 | -11.64 | 243.04 | -63.80 | 104.23 | 0.9084 | 142.0 | 151.0 | |
| 1.81 | -118.00 | 2.14 | -118.00 | -11.90 | 242.79 | -64.05 | 104.47 | 0.9104 | -78.2 | 999999 | |
| 24.51 | -118.00 | 30.80 | -118.00 | -13.92 | 241.58 | -65.26 | 106.45 | 0.9208 | -45.1 | 999999 | |
| 1.89 | -118.00 | 2.24 | -118.00 | -11.26 | 242.71 | -64.12 | 103.76 | 0.9103 | 348.3 | 999999 | |
| 4.30 | -118.00 | 5.71 | -118.00 | -14.99 | 240.42 | -66.41 | 107.40 | 0.9293 | 569.3 | 999999 | |
| 1.89 | -118.00 | 2.28 | -118.00 | -11.37 | 242.32 | -64.52 | 103.82 | 0.9132 | 68.4 | 999999 | |
| 16.08 | -118.00 | 21.30 | -118.00 | -14.47 | 240.36 | -66.48 | 106.83 | 0.9292 | 988.8 | 999999 | |
| 4.82 | -118.00 | 6.47 | -118.00 | -14.27 | 240.01 | -66.83 | 106.56 | 0.9311 | 589.7 | 999999 | |
| 0.00 | 1.63 | 0.00 | 2.14 | -12.84 | 240.35 | -66.48 | 105.09 | 0.9276 | 419.0 | 328.3 | |
| 0.00 | 5.16 | 0.00 | 7.17 | -14.37 | 239.23 | -67.61 | 106.54 | 0.9359 | 211.0 | 233.6 | |
| 8.26 | -118.00 | 11.39 | -118.00 | -13.68 | 239.32 | -67.51 | 105.83 | 0.9347 | 525.8 | 999999 | |
| 0.00 | 0.86 | 0.00 | 1.21 | -14.04 | 238.94 | -67.90 | 106.15 | 0.9373 | 83.0 | 58.6 | |
| 0.00 | 0.86 | 0.00 | 1.28 | -14.99 | 237.89 | -68.95 | 106.98 | 0.9441 | 425.0 | 328.2 | |
| 0.00 | 1.38 | 0.00 | 1.96 | -13.71 | 238.65 | -68.19 | 105.76 | 0.9387 | 188.0 | 113.7 | |
| 1.81 | 5.16 | 2.57 | 7.35 | -13.44 | 238.57 | -68.27 | 105.46 | 0.9390 | -410.9 | -315.5 | |
| 0.00 | 1.38 | 0.00 | 1.95 | -13.10 | 238.60 | -68.23 | 105.11 | 0.9384 | -265.0 | -250.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
