SDO HMI 2014-11-15 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.47 | 170.18 | 8.93 | 87.50 | -11.86 | 307.76 | 1.46 | 184.43 | 0.2658 | -185.4 | -275.9 | |
|
previous
or next observation for the same group /

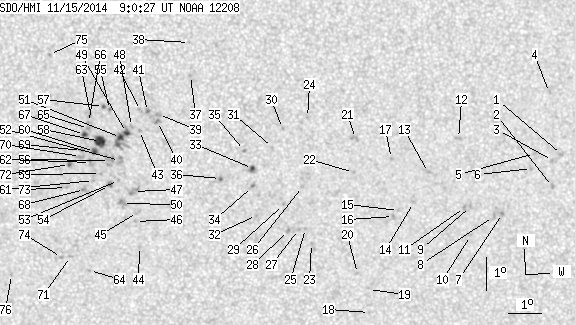

back to the solar disc SDO HMI 2014-11-15 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.32 | 0.00 | 1.22 | -11.57 | 318.61 | 12.32 | 220.19 | 0.3254 | 754.0 | 589.6 | |
| 0.00 | 1.81 | 0.00 | 0.95 | -12.55 | 318.38 | 12.09 | 217.75 | 0.3354 | 879.0 | 756.8 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -11.76 | 318.34 | 12.05 | 219.21 | 0.3248 | 805.0 | 617.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -9.68 | 318.17 | 11.88 | 223.29 | 0.2972 | 873.0 | 697.7 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -11.53 | 317.78 | 11.49 | 218.31 | 0.3161 | 812.0 | 649.8 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -11.99 | 317.70 | 11.41 | 217.23 | 0.3213 | 829.0 | 686.0 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -13.37 | 316.86 | 10.57 | 212.71 | 0.3318 | 873.0 | 697.8 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -13.46 | 316.59 | 10.30 | 211.88 | 0.3306 | 782.0 | 664.7 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -13.14 | 315.87 | 9.57 | 210.56 | 0.3200 | 947.0 | 768.3 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -14.04 | 315.90 | 9.61 | 209.24 | 0.3330 | 781.0 | 554.9 | |
| 0.00 | 2.84 | 0.00 | 1.48 | -13.17 | 315.68 | 9.39 | 210.03 | 0.3188 | 1002.0 | 733.2 | |
| 0.00 | 2.75 | 0.00 | 1.42 | -11.05 | 315.42 | 9.13 | 213.08 | 0.2867 | 793.0 | 700.1 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -12.08 | 314.54 | 8.24 | 208.65 | 0.2938 | 1022.0 | 904.6 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -13.00 | 314.11 | 7.81 | 205.95 | 0.3041 | 888.0 | 584.9 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -13.25 | 313.65 | 7.36 | 204.29 | 0.3045 | 899.0 | 714.9 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -13.43 | 313.50 | 7.21 | 203.60 | 0.3063 | 970.0 | 795.7 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -11.65 | 313.39 | 7.10 | 205.90 | 0.2785 | 914.0 | 681.1 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -16.42 | 312.85 | 6.56 | 198.42 | 0.3484 | 759.0 | 495.7 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -15.69 | 312.80 | 6.51 | 198.98 | 0.3369 | 503.0 | 587.1 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -15.19 | 312.44 | 6.15 | 198.51 | 0.3272 | 675.0 | 527.9 | |
| 0.00 | 3.70 | 0.00 | 1.90 | -11.03 | 312.28 | 5.99 | 203.20 | 0.2612 | 851.0 | 846.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.07 | 312.25 | 5.95 | 201.56 | 0.2772 | 833.0 | 768.6 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -14.25 | 311.01 | 4.71 | 195.19 | 0.3053 | 650.0 | 414.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -10.38 | 310.82 | 4.53 | 198.80 | 0.2421 | 748.0 | 564.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.78 | 310.81 | 4.52 | 195.00 | 0.2970 | 833.0 | 651.6 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -12.49 | 310.70 | 4.41 | 195.87 | 0.2755 | 964.0 | 654.3 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -13.81 | 310.60 | 4.31 | 194.30 | 0.2966 | 830.0 | 605.1 | |
| 0.00 | 2.32 | 0.00 | 1.20 | -13.84 | 310.29 | 4.00 | 193.30 | 0.2958 | 766.0 | 636.3 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.04 | 310.13 | 3.84 | 193.42 | 0.2821 | 883.0 | 747.6 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -10.71 | 310.07 | 3.78 | 195.47 | 0.2437 | 832.0 | 635.6 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -11.29 | 309.77 | 3.48 | 193.73 | 0.2519 | 861.0 | 672.2 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.38 | 309.31 | 3.02 | 190.40 | 0.2848 | 907.0 | 671.1 | |
| 1.38 | 2.67 | 0.71 | 1.37 | -11.93 | 309.17 | 2.88 | 190.93 | 0.2604 | -674.0 | -410.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.48 | 309.18 | 2.88 | 190.55 | 0.2696 | 906.0 | 571.2 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -11.38 | 308.92 | 2.63 | 190.41 | 0.2504 | 881.0 | 709.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.23 | 308.20 | 1.91 | 187.15 | 0.2629 | -999.0 | -912.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -9.09 | 307.29 | 0.99 | 184.75 | 0.2080 | -909.0 | -724.0 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -8.09 | 307.26 | 0.96 | 185.02 | 0.1908 | -854.0 | -552.3 | |
| 0.00 | 2.84 | 0.00 | 1.44 | -10.27 | 306.32 | 0.03 | 180.14 | 0.2275 | -879.0 | -747.8 | |
| 0.00 | 3.01 | 0.00 | 1.53 | -10.48 | 306.29 | 0.00 | 180.01 | 0.2312 | -867.0 | -696.7 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -10.18 | 305.99 | -0.30 | 178.69 | 0.2260 | -1101.0 | -982.8 | |
| 0.00 | 2.24 | 0.00 | 1.14 | -10.15 | 305.78 | -0.51 | 177.76 | 0.2256 | -824.0 | -716.2 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -10.76 | 305.75 | -0.54 | 177.73 | 0.2360 | -982.0 | -794.3 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -14.33 | 305.74 | -0.55 | 178.18 | 0.2963 | -907.0 | -676.8 | |
| 0.00 | 2.49 | 0.00 | 1.29 | -13.27 | 305.68 | -0.61 | 177.85 | 0.2786 | -589.0 | -668.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.55 | 305.62 | -0.67 | 177.68 | 0.2834 | -961.0 | -808.2 | |
| 0.00 | 6.02 | 0.00 | 3.09 | -12.63 | 305.56 | -0.73 | 177.33 | 0.2678 | -764.0 | -796.3 | |
| 0.00 | 2.06 | 0.00 | 1.05 | -10.64 | 305.51 | -0.78 | 176.70 | 0.2341 | -1022.0 | -737.6 | |
| 1.81 | 19.78 | 0.92 | 10.09 | -10.82 | 305.36 | -0.93 | 176.11 | 0.2374 | -1222.4 | -702.6 | |
| 0.00 | 5.16 | 0.00 | 2.66 | -13.00 | 305.23 | -1.07 | 176.19 | 0.2744 | -758.0 | -785.2 | |
| 2.15 | -49.00 | 1.10 | -49.00 | -10.97 | 305.18 | -1.12 | 175.41 | 0.2402 | -1217.1 | 999999 | |
| 0.00 | 4.82 | 0.00 | 2.46 | -11.68 | 305.14 | -1.15 | 175.51 | 0.2522 | -691.0 | -746.6 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.29 | 305.11 | -1.18 | 175.57 | 0.2626 | -976.0 | -751.1 | |
| 0.60 | 2.84 | 0.31 | 1.46 | -12.44 | 304.83 | -1.46 | 174.61 | 0.2656 | -1050.4 | -898.0 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -10.12 | 304.85 | -1.44 | 173.68 | 0.2263 | -1093.0 | -892.3 | |
| 0.00 | 8.26 | 0.00 | 4.23 | -11.68 | 304.84 | -1.45 | 174.33 | 0.2526 | -1029.0 | -803.3 | |
| 0.43 | 1.46 | 0.22 | 0.74 | -10.03 | 304.67 | -1.62 | 172.84 | 0.2251 | -1067.0 | -936.0 | |
| 7.40 | 10.49 | 3.78 | 5.36 | -11.09 | 304.57 | -1.72 | 173.01 | 0.2433 | -1229.6 | -801.7 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -12.07 | 304.56 | -1.73 | 173.45 | 0.2598 | -845.0 | -714.2 | |
| 1.89 | 3.78 | 0.97 | 1.93 | -11.40 | 304.39 | -1.91 | 172.44 | 0.2489 | -1118.0 | -930.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.29 | 304.35 | -1.94 | 172.75 | 0.2639 | -809.0 | -671.4 | |
| 0.00 | 3.61 | 0.00 | 1.85 | -11.74 | 304.26 | -2.03 | 172.14 | 0.2548 | -1007.0 | -824.6 | |
| 0.00 | 2.06 | 0.00 | 1.05 | -10.27 | 304.28 | -2.02 | 171.30 | 0.2301 | -1009.0 | -831.5 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -15.07 | 304.20 | -2.09 | 173.45 | 0.3106 | -711.0 | -629.0 | |
| 0.00 | 2.06 | 0.00 | 1.05 | -10.70 | 304.21 | -2.08 | 171.32 | 0.2375 | -1107.0 | -888.0 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -10.51 | 304.21 | -2.08 | 171.20 | 0.2344 | -1052.0 | -826.3 | |
| 1.29 | 2.49 | 0.66 | 1.27 | -10.88 | 304.09 | -2.20 | 170.94 | 0.2409 | -1102.8 | -923.6 | |
| 0.00 | 2.41 | 0.00 | 1.24 | -12.57 | 304.07 | -2.22 | 171.89 | 0.2691 | -1058.0 | -887.6 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -11.37 | 303.99 | -2.30 | 170.88 | 0.2493 | -929.0 | -863.9 | |
| 0.00 | 3.70 | 0.00 | 1.89 | -11.55 | 303.96 | -2.33 | 170.88 | 0.2525 | -808.0 | -748.9 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -14.64 | 303.62 | -2.67 | 171.45 | 0.3047 | -797.0 | -649.4 | |
| 0.52 | 1.89 | 0.26 | 0.97 | -11.80 | 303.63 | -2.67 | 169.77 | 0.2575 | -993.8 | -915.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -12.50 | 303.53 | -2.77 | 169.89 | 0.2696 | -826.0 | -653.9 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -14.67 | 303.35 | -2.95 | 170.60 | 0.3059 | -890.0 | -712.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -8.45 | 303.06 | -3.23 | 164.05 | 0.2041 | -950.0 | -716.8 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -15.20 | 301.80 | -4.49 | 166.26 | 0.3197 | -800.0 | -638.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
