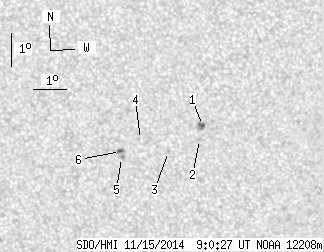

SDO HMI 2014-11-15 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.55 | 12.47 | 0.80 | 6.39 | -10.29 | 299.08 | -7.22 | 151.55 | 0.2594 | 143.2 | 252.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 4.73 | 0.31 | 2.42 | -9.82 | 300.18 | -6.12 | 154.34 | 0.2436 | 1162.0 | 933.7 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -10.25 | 300.08 | -6.22 | 154.74 | 0.2509 | 932.0 | 590.6 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -10.62 | 299.13 | -7.17 | 152.15 | 0.2636 | 888.0 | 628.9 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -10.26 | 298.28 | -8.01 | 148.74 | 0.2654 | -29.0 | -35.6 | |
| 0.00 | 2.06 | 0.00 | 1.06 | -10.81 | 297.69 | -8.60 | 147.99 | 0.2785 | -725.0 | -685.9 | |
| 0.95 | 2.41 | 0.49 | 1.24 | -10.63 | 297.66 | -8.63 | 147.56 | 0.2761 | -1083.5 | -856.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
