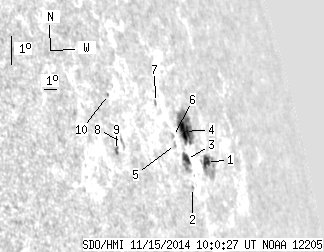

SDO HMI 2014-11-15 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.24 | 81.27 | 31.24 | 117.76 | 13.83 | 15.74 | 69.99 | 283.71 | 0.9403 | -381.6 | -47.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.59 | 21.33 | 8.64 | 33.16 | 13.23 | 17.20 | 71.45 | 283.02 | 0.9487 | -319.6 | 14.2 | |
| 0.00 | 0.95 | 0.00 | 1.35 | 12.55 | 15.45 | 69.70 | 282.35 | 0.9387 | -369.0 | -413.9 | |
| 4.04 | 11.78 | 5.75 | 16.70 | 13.40 | 15.45 | 69.71 | 283.26 | 0.9389 | -565.3 | -477.8 | |
| 11.61 | 36.12 | 16.85 | 52.80 | 14.24 | 15.85 | 70.10 | 284.13 | 0.9414 | -418.1 | 56.9 | |
| 0.00 | 1.55 | 0.00 | 2.14 | 13.89 | 14.81 | 69.06 | 283.80 | 0.9352 | -478.0 | -380.8 | |
| 0.00 | 0.86 | 0.00 | 1.19 | 14.14 | 14.80 | 69.05 | 284.07 | 0.9352 | -438.0 | -392.3 | |
| 0.00 | 1.72 | 0.00 | 2.30 | 15.21 | 13.99 | 68.25 | 285.26 | 0.9306 | -500.0 | -407.0 | |
| 0.00 | 3.44 | 0.00 | 4.04 | 14.13 | 10.75 | 65.00 | 284.28 | 0.9087 | 306.0 | 182.8 | |
| 0.00 | 2.75 | 0.00 | 3.17 | 13.91 | 10.20 | 64.45 | 284.08 | 0.9047 | 498.0 | 398.8 | |
| 0.00 | 0.77 | 0.00 | 0.91 | 15.61 | 10.57 | 64.83 | 285.92 | 0.9082 | -553.0 | -500.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
