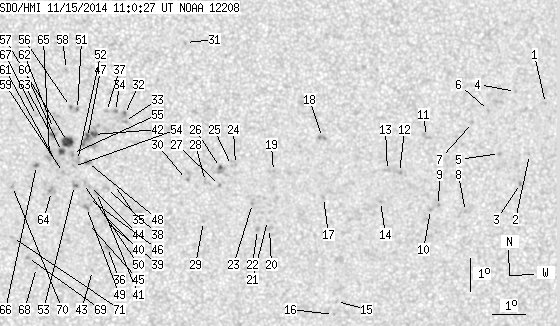

SDO HMI 2014-11-15 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.59 | 145.87 | 6.93 | 74.94 | -11.85 | 307.57 | 2.37 | 187.98 | 0.2666 | -275.5 | -302.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.50 | -10.04 | 319.13 | 13.93 | 227.00 | 0.3256 | 744.0 | 603.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -11.59 | 318.70 | 13.50 | 222.75 | 0.3385 | 768.0 | 471.0 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -12.48 | 318.47 | 13.27 | 220.49 | 0.3466 | 984.0 | 769.1 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -9.67 | 318.19 | 12.99 | 225.88 | 0.3100 | 920.0 | 780.4 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -11.55 | 317.77 | 12.57 | 220.81 | 0.3277 | 866.0 | 728.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -10.24 | 317.37 | 12.17 | 222.73 | 0.3072 | 897.0 | 699.3 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -10.59 | 316.90 | 11.69 | 220.80 | 0.3063 | 832.0 | 630.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.32 | 316.79 | 11.59 | 215.23 | 0.3405 | 852.0 | 658.7 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.13 | 315.95 | 10.75 | 213.56 | 0.3300 | 911.0 | 768.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.25 | 315.70 | 10.50 | 212.76 | 0.3294 | 917.0 | 766.6 | |
| 0.00 | 4.13 | 0.00 | 2.14 | -11.01 | 315.50 | 10.29 | 216.39 | 0.2970 | 638.0 | 670.2 | |
| 0.00 | 2.15 | 0.00 | 1.12 | -12.10 | 314.70 | 9.50 | 212.17 | 0.3046 | 1037.0 | 826.4 | |
| 0.00 | 2.67 | 0.00 | 1.38 | -12.04 | 314.33 | 9.13 | 211.27 | 0.3004 | 720.0 | 670.5 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -12.99 | 314.15 | 8.95 | 209.16 | 0.3125 | 947.0 | 787.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -16.08 | 312.90 | 7.70 | 201.71 | 0.3496 | 641.0 | 537.5 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -16.49 | 312.82 | 7.62 | 201.07 | 0.3553 | 667.0 | 473.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.85 | 312.39 | 7.19 | 204.37 | 0.2972 | 788.0 | 642.5 | |
| 0.00 | 2.84 | 0.00 | 1.46 | -11.01 | 312.32 | 7.12 | 207.02 | 0.2689 | 859.0 | 833.0 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -12.04 | 310.85 | 5.65 | 200.60 | 0.2748 | 888.0 | 635.5 | |
| 0.00 | 2.58 | 0.00 | 1.34 | -13.80 | 310.76 | 5.56 | 198.25 | 0.3020 | 765.0 | 627.7 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.55 | 310.70 | 5.50 | 198.31 | 0.2977 | 721.0 | 651.4 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -13.82 | 310.40 | 5.20 | 197.09 | 0.3006 | 729.0 | 622.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.02 | 310.23 | 5.03 | 197.39 | 0.2869 | 982.0 | 828.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.82 | 309.69 | 4.49 | 196.88 | 0.2650 | 839.0 | 657.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.85 | 309.57 | 4.37 | 196.41 | 0.2649 | 754.0 | 558.1 | |
| 0.69 | 4.99 | 0.35 | 2.56 | -11.91 | 309.23 | 4.03 | 195.16 | 0.2643 | -654.1 | -153.0 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.46 | 309.21 | 4.01 | 194.54 | 0.2732 | 847.0 | 673.7 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -12.34 | 308.78 | 3.58 | 193.16 | 0.2694 | -73.0 | -227.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.57 | 308.74 | 3.54 | 192.01 | 0.2895 | 721.0 | 427.8 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -12.27 | 308.20 | 3.00 | 191.14 | 0.2663 | -875.0 | -784.7 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -8.10 | 308.14 | 2.94 | 195.02 | 0.1968 | -898.0 | -648.1 | |
| 0.00 | 2.24 | 0.00 | 1.14 | -10.28 | 306.32 | 1.12 | 184.84 | 0.2283 | -865.0 | -776.2 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -10.49 | 306.32 | 1.12 | 184.76 | 0.2319 | -820.0 | -660.0 | |
| 0.00 | 2.06 | 0.00 | 1.05 | -10.19 | 306.05 | 0.85 | 183.69 | 0.2264 | -1085.0 | -904.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -12.42 | 306.02 | 0.82 | 183.04 | 0.2642 | -781.0 | -512.2 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -14.36 | 305.81 | 0.61 | 182.00 | 0.2968 | -930.0 | -773.3 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -10.19 | 305.77 | 0.57 | 182.51 | 0.2261 | -980.0 | -788.3 | |
| 0.00 | 2.58 | 0.00 | 1.33 | -12.54 | 305.78 | 0.58 | 182.12 | 0.2661 | -936.0 | -722.7 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.56 | 305.75 | 0.55 | 181.89 | 0.2832 | -921.0 | -721.8 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -13.31 | 305.69 | 0.49 | 181.70 | 0.2791 | -939.0 | -746.3 | |
| 0.00 | 3.53 | 0.00 | 1.81 | -12.66 | 305.47 | 0.27 | 181.00 | 0.2681 | -718.0 | -744.5 | |
| 1.72 | 19.95 | 0.88 | 10.18 | -10.89 | 305.38 | 0.18 | 180.76 | 0.2379 | -1145.6 | -715.6 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -15.08 | 305.35 | 0.15 | 180.47 | 0.3086 | -717.0 | -562.1 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.48 | 305.26 | 0.06 | 180.22 | 0.2649 | -829.0 | -570.1 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -13.62 | 305.23 | 0.03 | 180.10 | 0.2841 | -616.0 | -566.9 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -12.85 | 305.23 | 0.03 | 180.11 | 0.2711 | -915.0 | -818.0 | |
| 1.89 | -42.00 | 0.96 | -42.00 | -10.98 | 305.20 | 0.00 | 180.00 | 0.2394 | -1196.8 | 999999 | |
| 0.00 | 3.44 | 0.00 | 1.76 | -11.74 | 305.20 | 0.00 | 180.00 | 0.2524 | -995.0 | -788.2 | |
| 0.00 | 2.49 | 0.00 | 1.28 | -13.13 | 305.17 | -0.03 | 179.89 | 0.2758 | -869.0 | -770.2 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -12.39 | 305.08 | -0.12 | 179.55 | 0.2633 | -515.0 | -633.3 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -10.12 | 304.90 | -0.30 | 178.69 | 0.2249 | -1021.0 | -797.5 | |
| 0.00 | 3.53 | 0.00 | 1.80 | -11.68 | 304.90 | -0.30 | 178.82 | 0.2514 | -777.0 | -771.3 | |
| 0.00 | 2.58 | 0.00 | 1.32 | -12.45 | 304.81 | -0.40 | 178.53 | 0.2644 | -1002.0 | -843.8 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -11.86 | 304.78 | -0.42 | 178.36 | 0.2546 | -880.0 | -749.3 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -11.47 | 304.75 | -0.45 | 178.20 | 0.2478 | -1014.0 | -879.7 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -10.03 | 304.69 | -0.51 | 177.74 | 0.2235 | -1066.0 | -912.5 | |
| 6.79 | 8.94 | 3.47 | 4.56 | -11.10 | 304.60 | -0.60 | 177.54 | 0.2417 | -1215.8 | -908.6 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -8.91 | 304.57 | -0.63 | 176.96 | 0.2044 | -792.0 | -565.7 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -12.05 | 304.47 | -0.73 | 177.23 | 0.2579 | -1033.0 | -864.5 | |
| 1.81 | 3.53 | 0.92 | 1.80 | -11.41 | 304.41 | -0.79 | 176.87 | 0.2471 | -1124.2 | -912.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -11.74 | 304.26 | -0.94 | 176.35 | 0.2529 | -1006.0 | -917.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.70 | 304.18 | -1.02 | 175.70 | 0.2354 | -998.0 | -815.9 | |
| 0.69 | 1.98 | 0.35 | 1.01 | -10.89 | 304.11 | -1.09 | 175.51 | 0.2386 | -1152.8 | -1025.4 | |
| 0.00 | 4.39 | 0.00 | 2.25 | -12.63 | 304.11 | -1.09 | 176.00 | 0.2681 | -910.0 | -844.5 | |
| 0.00 | 5.50 | 0.00 | 2.81 | -11.53 | 304.05 | -1.15 | 175.46 | 0.2495 | -763.0 | -761.0 | |
| 0.00 | 2.24 | 0.00 | 1.14 | -11.83 | 303.66 | -1.54 | 174.04 | 0.2553 | -1050.0 | -860.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -10.31 | 303.67 | -1.53 | 173.38 | 0.2295 | -872.0 | -692.9 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -14.98 | 303.63 | -1.57 | 175.05 | 0.3081 | -712.0 | -563.7 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -14.67 | 303.36 | -1.84 | 174.09 | 0.3034 | -942.0 | -739.2 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -12.48 | 302.92 | -2.28 | 171.62 | 0.2677 | -859.0 | -659.4 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -14.05 | 302.91 | -2.30 | 172.37 | 0.2940 | -780.0 | -512.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
