SDO HMI 2014-11-15 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.42 | 18.40 | 8.82 | 19.09 | 8.28 | 6.75 | 61.55 | 277.91 | 0.8802 | -456.6 | -206.2 | |
|
previous
or next observation for the same group /

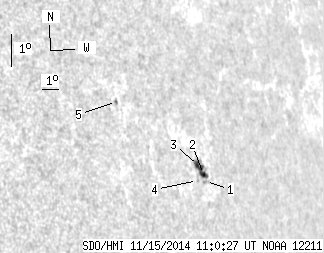

back to the solar disc SDO HMI 2014-11-15 11:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.89 | 0.00 | 1.99 | 7.79 | 7.27 | 62.07 | 277.34 | 0.8845 | -310.0 | -264.6 | |
| 3.35 | 14.19 | 3.53 | 14.86 | 8.01 | 7.20 | 62.00 | 277.58 | 0.8840 | -527.5 | -312.3 | |
| 5.07 | -2.00 | 5.29 | -2.00 | 8.29 | 6.95 | 61.75 | 277.90 | 0.8820 | -632.6 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.89 | 7.85 | 6.77 | 61.57 | 277.40 | 0.8805 | -425.0 | -420.1 | |
| 0.00 | 1.46 | 0.00 | 1.35 | 10.39 | 2.64 | 57.44 | 280.54 | 0.8453 | 547.0 | 498.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
