SDO HMI 2014-11-15 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.26 | 18.75 | 4.25 | 9.71 | 16.51 | 294.93 | -9.72 | 33.91 | 0.2892 | -393.5 | -184.5 | |
|
previous
or next observation for the same group /

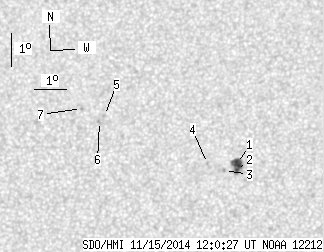

back to the solar disc SDO HMI 2014-11-15 12:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.88 | 12.47 | 3.54 | 6.42 | 16.23 | 296.04 | -8.61 | 31.71 | 0.2747 | -1008.4 | -781.4 | |
| 1.38 | -1.00 | 0.71 | -1.00 | 16.02 | 296.02 | -8.63 | 32.20 | 0.2719 | -1248.4 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.58 | 16.01 | 295.65 | -9.01 | 33.30 | 0.2753 | -844.0 | -735.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 16.22 | 295.11 | -9.55 | 34.39 | 0.2832 | -790.0 | -637.9 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 17.66 | 291.77 | -12.89 | 39.52 | 0.3354 | 714.0 | 579.4 | |
| 0.00 | 1.63 | 0.00 | 0.86 | 17.48 | 291.62 | -13.03 | 40.21 | 0.3347 | 842.0 | 748.5 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 17.87 | 291.01 | -13.64 | 40.66 | 0.3459 | 894.0 | 647.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
