SDO HMI 2014-11-15 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.41 | 0.00 | 4.63 | -8.68 | 339.37 | 35.81 | 251.45 | 0.6096 | -217.2 | -290.5 | |
|
previous
or next observation for the same group /

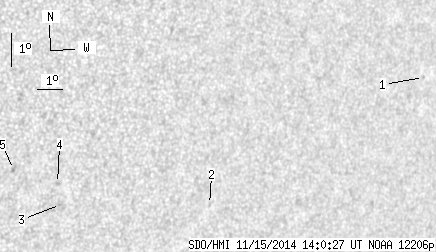

back to the solar disc SDO HMI 2014-11-15 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.64 | -6.26 | 351.31 | 47.75 | 259.10 | 0.7517 | 639.0 | 532.6 | |
| 0.00 | 0.95 | 0.00 | 0.62 | -9.80 | 342.89 | 39.33 | 251.65 | 0.6604 | 430.0 | 414.9 | |
| 0.00 | 1.38 | 0.00 | 0.84 | -9.62 | 337.27 | 33.72 | 249.28 | 0.5874 | -746.0 | -592.6 | |
| 0.00 | 1.81 | 0.00 | 1.10 | -8.98 | 337.10 | 33.54 | 250.23 | 0.5822 | -629.0 | -517.1 | |
| 0.00 | 2.41 | 0.00 | 1.43 | -8.51 | 335.48 | 31.92 | 250.14 | 0.5582 | -780.0 | -615.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
