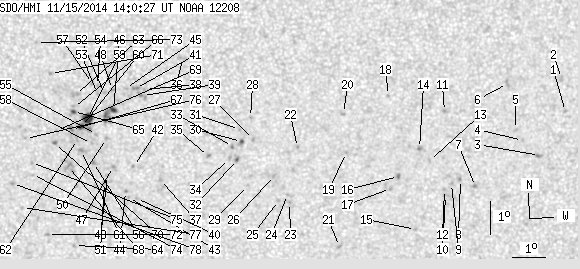

SDO HMI 2014-11-15 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.46 | 160.50 | 6.36 | 82.74 | -11.77 | 307.93 | 4.38 | 194.84 | 0.2731 | -216.6 | -257.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.68 | -11.05 | 319.28 | 15.72 | 228.22 | 0.3583 | 799.0 | 627.7 | |
| 0.00 | 2.49 | 0.00 | 1.32 | -10.04 | 319.10 | 15.55 | 230.12 | 0.3455 | 824.0 | 604.3 | |
| 0.00 | 2.49 | 0.00 | 1.33 | -12.39 | 318.54 | 14.98 | 224.12 | 0.3643 | 849.0 | 732.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -11.92 | 317.98 | 14.42 | 223.98 | 0.3526 | 730.0 | 601.2 | |
| 0.00 | 1.55 | 0.00 | 0.82 | -11.58 | 317.74 | 14.19 | 224.20 | 0.3459 | 733.0 | 638.3 | |
| 0.00 | 3.01 | 0.00 | 1.58 | -10.17 | 317.43 | 13.87 | 226.61 | 0.3262 | 851.0 | 737.4 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -13.31 | 316.58 | 13.03 | 218.44 | 0.3544 | 857.0 | 699.6 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -13.09 | 316.10 | 12.55 | 217.81 | 0.3467 | 1000.0 | 827.2 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.21 | 315.83 | 12.27 | 216.98 | 0.3455 | 893.0 | 746.7 | |
| 0.00 | 2.49 | 0.00 | 1.32 | -13.58 | 315.66 | 12.11 | 215.96 | 0.3487 | 759.0 | 636.1 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -11.00 | 315.51 | 11.96 | 220.57 | 0.3141 | 996.0 | 890.2 | |
| 0.00 | 1.38 | 0.00 | 0.73 | -13.39 | 315.62 | 12.07 | 216.19 | 0.3459 | 895.0 | 653.8 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -12.50 | 315.11 | 11.56 | 216.65 | 0.3291 | 865.0 | 649.0 | |
| 0.00 | 2.41 | 0.00 | 1.26 | -12.12 | 314.79 | 11.23 | 216.57 | 0.3210 | 1074.0 | 849.1 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -14.62 | 314.78 | 11.22 | 212.24 | 0.3546 | 700.0 | 578.7 | |
| 0.00 | 2.06 | 0.00 | 1.08 | -12.98 | 314.17 | 10.62 | 213.51 | 0.3266 | 988.0 | 838.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.34 | 313.94 | 10.38 | 212.31 | 0.3296 | 777.0 | 708.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.49 | 313.77 | 10.22 | 217.27 | 0.2893 | 811.0 | 655.2 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -12.22 | 312.54 | 8.99 | 210.55 | 0.3017 | 816.0 | 685.4 | |
| 0.00 | 1.81 | 0.00 | 0.93 | -11.03 | 312.41 | 8.86 | 212.36 | 0.2836 | 809.0 | 799.6 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -15.13 | 312.43 | 8.88 | 205.86 | 0.3430 | 949.0 | 730.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.06 | 311.04 | 7.48 | 206.43 | 0.2872 | 944.0 | 801.0 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -13.75 | 310.84 | 7.28 | 203.40 | 0.3114 | 845.0 | 753.7 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.50 | 310.77 | 7.21 | 203.53 | 0.3072 | 907.0 | 651.7 | |
| 0.00 | 1.63 | 0.00 | 0.85 | -13.68 | 310.50 | 6.94 | 202.50 | 0.3082 | 689.0 | 584.6 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -12.91 | 310.35 | 6.80 | 203.10 | 0.2954 | 916.0 | 784.5 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -11.80 | 309.69 | 6.13 | 202.54 | 0.2740 | 907.0 | 742.0 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -11.13 | 309.58 | 6.03 | 203.18 | 0.2628 | 844.0 | 608.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -13.21 | 309.54 | 5.98 | 200.20 | 0.2951 | 871.0 | 698.6 | |
| 0.60 | 2.66 | 0.31 | 1.37 | -11.86 | 309.32 | 5.77 | 201.25 | 0.2726 | -545.3 | -347.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.49 | 309.25 | 5.70 | 201.53 | 0.2664 | 700.0 | 496.6 | |
| 0.43 | 1.89 | 0.22 | 0.98 | -12.41 | 309.21 | 5.66 | 200.16 | 0.2806 | 928.6 | 702.6 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.01 | 309.05 | 5.50 | 200.13 | 0.2734 | -749.0 | -667.8 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -12.38 | 308.97 | 5.41 | 199.39 | 0.2787 | -140.0 | 23.9 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -12.32 | 308.33 | 4.77 | 197.31 | 0.2743 | -912.0 | -802.3 | |
| 0.00 | 4.56 | 0.00 | 2.31 | -9.32 | 307.50 | 3.94 | 197.91 | 0.2216 | -801.0 | -635.6 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -13.02 | 306.88 | 3.32 | 191.69 | 0.2796 | -310.0 | -381.6 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.26 | 306.36 | 2.81 | 192.04 | 0.2321 | -918.0 | -685.5 | |
| 0.00 | 4.30 | 0.00 | 2.19 | -10.44 | 306.30 | 2.75 | 191.63 | 0.2349 | -814.0 | -694.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.60 | 306.15 | 2.59 | 188.85 | 0.2870 | -791.0 | -674.8 | |
| 0.00 | 2.49 | 0.00 | 1.27 | -10.23 | 306.09 | 2.53 | 190.93 | 0.2306 | -1041.0 | -908.4 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -12.61 | 306.05 | 2.49 | 189.07 | 0.2704 | -963.0 | -696.0 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -13.57 | 305.91 | 2.35 | 188.05 | 0.2859 | -883.0 | -610.7 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.38 | 305.81 | 2.26 | 187.82 | 0.2826 | -1066.0 | -881.4 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -10.23 | 305.79 | 2.23 | 189.66 | 0.2297 | -862.0 | -725.6 | |
| 2.06 | 11.86 | 1.05 | 6.05 | -10.86 | 305.43 | 1.88 | 187.74 | 0.2395 | -1127.9 | -928.0 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.61 | 305.44 | 1.88 | 186.89 | 0.2689 | -1002.0 | -801.4 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -10.25 | 305.40 | 1.84 | 187.97 | 0.2292 | -758.0 | -653.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.89 | 305.26 | 1.70 | 186.12 | 0.2732 | -994.0 | -681.2 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -11.75 | 305.22 | 1.67 | 186.47 | 0.2540 | -968.0 | -780.9 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -13.10 | 305.17 | 1.61 | 185.72 | 0.2767 | -961.0 | -729.8 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -10.38 | 305.16 | 1.60 | 186.87 | 0.2307 | -739.0 | -615.5 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -10.38 | 304.95 | 1.39 | 185.98 | 0.2303 | -892.0 | -525.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -10.13 | 304.95 | 1.39 | 186.09 | 0.2261 | -881.0 | -625.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -11.63 | 304.92 | 1.36 | 185.35 | 0.2514 | -862.0 | -751.5 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -12.49 | 304.83 | 1.28 | 184.72 | 0.2658 | -978.0 | -801.3 | |
| 0.00 | 1.46 | 0.00 | 0.74 | -10.07 | 304.80 | 1.24 | 185.46 | 0.2248 | -1097.0 | -782.3 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -11.90 | 304.77 | 1.21 | 184.67 | 0.2559 | -904.0 | -736.4 | |
| 6.70 | 16.76 | 3.42 | 8.56 | -11.14 | 304.65 | 1.09 | 184.43 | 0.2427 | -1227.4 | -887.0 | |
| 1.81 | -59.00 | 0.92 | -59.00 | -11.38 | 304.47 | 0.91 | 183.64 | 0.2467 | -1157.7 | 999999 | |
| 0.00 | 2.84 | 0.00 | 1.45 | -12.12 | 304.47 | 0.91 | 183.46 | 0.2591 | -989.0 | -844.7 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -11.78 | 304.35 | 0.79 | 183.07 | 0.2533 | -795.0 | -747.4 | |
| 0.00 | 4.64 | 0.00 | 2.36 | -10.40 | 304.28 | 0.73 | 183.13 | 0.2299 | -758.0 | -746.1 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -15.05 | 304.26 | 0.70 | 182.22 | 0.3082 | -758.0 | -653.2 | |
| 0.86 | 2.32 | 0.44 | 1.18 | -10.92 | 304.22 | 0.67 | 182.76 | 0.2386 | -1085.4 | -811.9 | |
| 0.00 | 2.06 | 0.00 | 1.05 | -10.80 | 304.22 | 0.67 | 182.79 | 0.2366 | -699.0 | -574.3 | |
| 0.00 | 3.01 | 0.00 | 1.54 | -11.47 | 304.16 | 0.61 | 182.41 | 0.2479 | -1054.0 | -828.8 | |
| 0.00 | 10.66 | 0.00 | 5.48 | -12.61 | 304.07 | 0.52 | 181.90 | 0.2671 | -1184.0 | -733.4 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.50 | 303.71 | 0.15 | 180.61 | 0.2482 | -837.0 | -571.3 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -11.90 | 303.65 | 0.09 | 180.36 | 0.2550 | -1019.0 | -915.8 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -9.76 | 303.53 | -0.03 | 179.89 | 0.2186 | -930.0 | -742.0 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -14.71 | 303.43 | -0.12 | 179.60 | 0.3023 | -917.0 | -685.3 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -8.82 | 303.11 | -0.44 | 177.82 | 0.2026 | -725.0 | -546.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -12.85 | 302.98 | -0.58 | 177.92 | 0.2713 | -674.0 | -554.3 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -12.48 | 302.95 | -0.61 | 177.76 | 0.2650 | -651.0 | -572.5 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -11.75 | 302.77 | -0.78 | 176.95 | 0.2527 | -821.0 | -610.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.87 | 302.67 | -0.89 | 177.01 | 0.2886 | -635.0 | -506.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -13.13 | 302.37 | -1.19 | 175.80 | 0.2765 | -898.0 | -721.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
