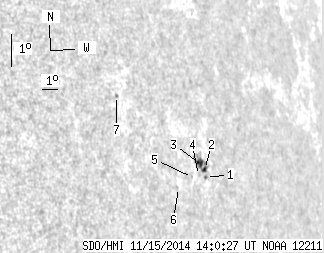

SDO HMI 2014-11-15 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.15 | 15.81 | 5.74 | 17.31 | 8.23 | 6.74 | 63.18 | 277.82 | 0.8932 | -321.0 | -230.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 14:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 1.06 | 7.74 | 7.39 | 63.83 | 277.25 | 0.8984 | -299.0 | -290.3 | |
| 1.63 | 11.60 | 1.83 | 12.89 | 7.98 | 7.39 | 63.83 | 277.52 | 0.8984 | -375.0 | -367.3 | |
| 3.52 | -2.00 | 3.91 | -2.00 | 8.17 | 7.11 | 63.55 | 277.74 | 0.8962 | -617.1 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.85 | 7.82 | 6.94 | 63.38 | 277.35 | 0.8949 | -403.0 | -371.7 | |
| 0.00 | 0.43 | 0.00 | 0.47 | 7.78 | 6.52 | 62.97 | 277.31 | 0.8917 | -466.0 | -486.4 | |
| 0.00 | 0.60 | 0.00 | 0.63 | 7.52 | 5.54 | 61.98 | 277.03 | 0.8838 | 264.0 | 270.3 | |
| 0.00 | 1.46 | 0.00 | 1.41 | 10.41 | 2.55 | 58.99 | 280.47 | 0.8593 | 556.0 | 457.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
