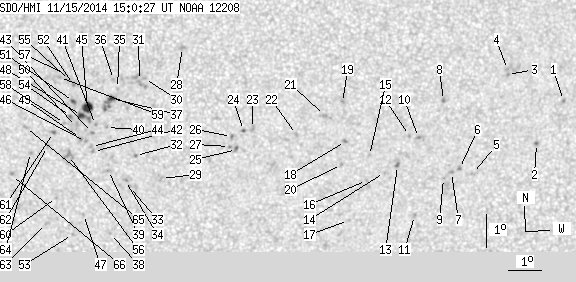

SDO HMI 2014-11-15 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.61 | 128.25 | 5.92 | 66.10 | -11.85 | 307.81 | 4.80 | 196.39 | 0.2754 | -273.6 | -269.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 15:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.73 | -11.06 | 319.27 | 16.26 | 229.15 | 0.3649 | 785.0 | 653.9 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -12.36 | 318.49 | 15.49 | 225.10 | 0.3698 | 998.0 | 815.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -10.24 | 317.47 | 14.47 | 227.64 | 0.3342 | 855.0 | 780.0 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -10.09 | 317.47 | 14.46 | 227.98 | 0.3324 | 971.0 | 783.7 | |
| 0.00 | 1.80 | 0.00 | 0.96 | -13.26 | 316.53 | 13.53 | 219.59 | 0.3589 | 1034.0 | 722.3 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -13.10 | 316.12 | 13.11 | 219.01 | 0.3526 | 984.0 | 807.8 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -13.22 | 315.87 | 12.87 | 218.27 | 0.3516 | 904.0 | 714.7 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -11.01 | 315.52 | 12.51 | 221.84 | 0.3203 | 1049.0 | 839.1 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.40 | 315.63 | 12.63 | 217.43 | 0.3515 | 842.0 | 640.5 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -12.13 | 314.80 | 11.79 | 217.89 | 0.3267 | 1066.0 | 825.3 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -14.54 | 314.79 | 11.78 | 213.64 | 0.3584 | 736.0 | 602.3 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -12.07 | 314.51 | 11.51 | 217.35 | 0.3230 | 885.0 | 629.7 | |
| 0.00 | 1.98 | 0.00 | 1.04 | -12.98 | 314.18 | 11.18 | 214.86 | 0.3319 | 976.0 | 833.5 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.20 | 313.79 | 10.78 | 213.54 | 0.3311 | 865.0 | 667.8 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -12.67 | 313.30 | 10.30 | 213.25 | 0.3194 | 879.0 | 591.2 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.44 | 313.24 | 10.24 | 211.79 | 0.3296 | 872.0 | 702.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -14.67 | 312.74 | 9.73 | 208.62 | 0.3428 | 572.0 | 483.5 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -12.23 | 312.55 | 9.54 | 212.05 | 0.3066 | 879.0 | 755.4 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -11.03 | 312.41 | 9.41 | 213.93 | 0.2887 | 924.0 | 853.8 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -12.94 | 312.45 | 9.44 | 210.58 | 0.3157 | 806.0 | 640.3 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -11.43 | 311.88 | 8.87 | 211.65 | 0.2893 | 1003.0 | 800.2 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -12.00 | 311.04 | 8.03 | 208.18 | 0.2906 | 878.0 | 662.7 | |
| 0.00 | 2.66 | 0.00 | 1.37 | -11.81 | 309.69 | 6.68 | 204.33 | 0.2777 | 823.0 | 698.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -11.87 | 309.41 | 6.41 | 203.36 | 0.2767 | -643.0 | -540.9 | |
| 0.00 | 2.32 | 0.00 | 1.20 | -12.45 | 309.21 | 6.21 | 201.89 | 0.2844 | 1015.0 | 781.5 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -12.05 | 309.05 | 6.05 | 201.92 | 0.2772 | -770.0 | -587.6 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.35 | 309.00 | 5.99 | 201.33 | 0.2817 | -62.0 | 137.7 | |
| 0.00 | 2.84 | 0.00 | 1.44 | -9.33 | 307.52 | 4.52 | 200.31 | 0.2249 | -916.0 | -746.5 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -13.33 | 306.94 | 3.93 | 193.52 | 0.2869 | -730.0 | -639.9 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -10.26 | 306.39 | 3.38 | 194.41 | 0.2343 | -917.0 | -690.1 | |
| 0.00 | 7.74 | 0.00 | 3.94 | -10.32 | 306.24 | 3.23 | 193.73 | 0.2347 | -793.0 | -781.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.62 | 306.14 | 3.13 | 191.35 | 0.2723 | -936.0 | -832.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.57 | 305.97 | 2.96 | 190.10 | 0.2875 | -837.0 | -637.8 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -13.38 | 305.84 | 2.84 | 189.80 | 0.2841 | -980.0 | -854.1 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -10.56 | 305.58 | 2.57 | 190.79 | 0.2363 | -851.0 | -653.6 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -10.29 | 305.45 | 2.45 | 190.51 | 0.2314 | -940.0 | -713.4 | |
| 1.98 | 9.80 | 1.01 | 5.00 | -10.87 | 305.40 | 2.39 | 189.83 | 0.2409 | -1206.8 | -984.3 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -15.03 | 305.40 | 2.39 | 187.51 | 0.3102 | -766.0 | -606.1 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -13.07 | 305.32 | 2.32 | 188.19 | 0.2776 | -892.0 | -717.7 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -11.75 | 305.25 | 2.24 | 188.68 | 0.2553 | -971.0 | -781.4 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -11.66 | 304.92 | 1.91 | 187.45 | 0.2530 | -969.0 | -751.4 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -12.49 | 304.86 | 1.86 | 186.84 | 0.2668 | -951.0 | -766.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -11.90 | 304.83 | 1.82 | 186.99 | 0.2569 | -851.0 | -724.1 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -12.33 | 304.80 | 1.79 | 186.68 | 0.2641 | -857.0 | -740.6 | |
| 6.45 | 8.85 | 3.29 | 4.52 | -11.14 | 304.67 | 1.67 | 186.75 | 0.2437 | -1230.1 | -862.7 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -12.18 | 304.62 | 1.61 | 186.07 | 0.2611 | -885.0 | -784.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -14.43 | 304.57 | 1.56 | 185.09 | 0.2988 | -884.0 | -636.9 | |
| 2.49 | 6.27 | 1.27 | 3.21 | -11.38 | 304.49 | 1.49 | 185.92 | 0.2475 | -1123.2 | -889.5 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.09 | 304.47 | 1.46 | 185.53 | 0.2593 | -1099.0 | -929.9 | |
| 0.00 | 3.27 | 0.00 | 1.67 | -11.72 | 304.34 | 1.34 | 185.20 | 0.2529 | -880.0 | -776.3 | |
| 0.69 | 1.89 | 0.35 | 0.96 | -10.96 | 304.25 | 1.24 | 185.12 | 0.2398 | -1137.2 | -1008.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -10.44 | 304.25 | 1.24 | 185.32 | 0.2310 | -1106.0 | -956.6 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -15.05 | 304.23 | 1.23 | 183.86 | 0.3087 | -765.0 | -490.2 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -11.41 | 304.16 | 1.15 | 184.59 | 0.2475 | -975.0 | -888.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.31 | 304.13 | 1.12 | 184.85 | 0.2288 | -904.0 | -695.9 | |
| 0.00 | 6.19 | 0.00 | 3.18 | -12.61 | 304.10 | 1.10 | 184.02 | 0.2676 | -1117.0 | -847.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -10.13 | 304.01 | 1.00 | 184.39 | 0.2255 | -801.0 | -563.7 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -11.63 | 303.98 | 0.97 | 183.82 | 0.2509 | -616.0 | -483.5 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -10.22 | 303.83 | 0.82 | 183.57 | 0.2268 | -901.0 | -801.2 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -13.90 | 303.74 | 0.73 | 182.48 | 0.2890 | -676.0 | -576.8 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -11.90 | 303.65 | 0.64 | 182.47 | 0.2552 | -1132.0 | -895.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.33 | 303.46 | 0.46 | 181.72 | 0.2624 | -731.0 | -670.4 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -14.71 | 303.44 | 0.43 | 181.38 | 0.3024 | -910.0 | -713.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -12.51 | 302.95 | -0.06 | 179.79 | 0.2654 | -799.0 | -752.0 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -11.75 | 302.80 | -0.21 | 179.19 | 0.2524 | -775.0 | -602.9 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -13.22 | 302.37 | -0.64 | 177.75 | 0.2775 | -644.0 | -682.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
