SDO HMI 2014-11-15 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.98 | 57.15 | 22.88 | 100.66 | 13.95 | 15.69 | 73.79 | 283.73 | 0.9602 | -290.7 | -61.3 | |
|
previous
or next observation for the same group /

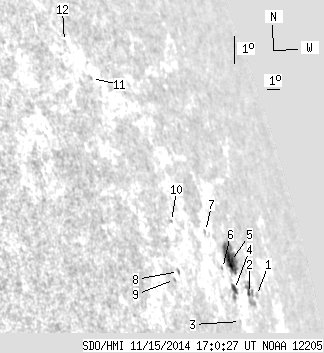

back to the solar disc SDO HMI 2014-11-15 17:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.55 | 0.00 | 3.10 | 13.10 | 17.82 | 75.92 | 282.81 | 0.9699 | 348.0 | 315.7 | |
| 0.95 | 12.46 | 1.79 | 23.82 | 13.20 | 17.04 | 75.14 | 282.92 | 0.9666 | -250.0 | -134.4 | |
| 0.00 | 0.26 | 0.00 | 0.44 | 12.43 | 15.37 | 73.46 | 282.14 | 0.9589 | -296.0 | -300.3 | |
| 2.66 | 7.22 | 4.61 | 12.45 | 13.40 | 15.48 | 73.58 | 283.15 | 0.9595 | -492.2 | -383.3 | |
| 9.37 | 29.22 | 16.48 | 51.72 | 14.24 | 15.76 | 73.86 | 284.02 | 0.9609 | -393.7 | 9.6 | |
| 0.00 | 0.95 | 0.00 | 1.58 | 14.07 | 14.75 | 72.84 | 283.87 | 0.9560 | -266.0 | -235.5 | |
| 0.00 | 0.77 | 0.00 | 1.23 | 15.24 | 13.98 | 72.07 | 285.12 | 0.9523 | -333.0 | -268.9 | |
| 0.00 | 1.63 | 0.00 | 2.23 | 14.16 | 10.66 | 68.76 | 284.12 | 0.9334 | 201.0 | 164.9 | |
| 0.00 | 1.20 | 0.00 | 1.61 | 13.94 | 10.18 | 68.28 | 283.90 | 0.9304 | 284.0 | 265.6 | |
| 0.00 | 0.86 | 0.00 | 1.20 | 15.68 | 11.12 | 69.22 | 285.71 | 0.9366 | -367.0 | -332.6 | |
| 0.00 | 0.77 | 0.00 | 0.97 | 20.26 | 8.14 | 66.23 | 290.87 | 0.9206 | 235.0 | 265.3 | |
| 0.00 | 0.26 | 0.00 | 0.31 | 21.47 | 7.07 | 65.17 | 292.31 | 0.9146 | 130.0 | 207.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
