SDO HMI 2014-11-15 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.00 | 48.81 | 25.45 | 88.81 | 13.91 | 15.72 | 74.37 | 283.67 | 0.9630 | -248.4 | -74.0 | |
|
previous
or next observation for the same group /

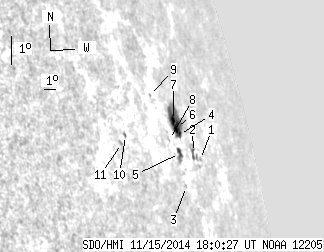

back to the solar disc SDO HMI 2014-11-15 18:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 1.60 | 13.09 | 17.76 | 76.41 | 282.79 | 0.9720 | 293.0 | 296.7 | |
| 0.00 | 7.56 | 0.00 | 14.95 | 13.33 | 17.10 | 75.75 | 283.05 | 0.9692 | -254.0 | -176.4 | |
| 0.00 | 0.69 | 0.00 | 1.23 | 12.37 | 15.43 | 74.08 | 282.07 | 0.9618 | -335.0 | -318.1 | |
| 1.80 | 29.13 | 3.32 | 53.28 | 13.93 | 15.96 | 74.61 | 283.69 | 0.9643 | -19.7 | 20.8 | |
| 2.49 | 6.10 | 4.46 | 10.88 | 13.38 | 15.46 | 74.11 | 283.12 | 0.9620 | -474.4 | -406.0 | |
| 5.50 | -4.00 | 10.06 | -4.00 | 14.15 | 15.81 | 74.46 | 283.92 | 0.9637 | -187.4 | 999999 | |
| 4.21 | -4.00 | 7.61 | -4.00 | 14.38 | 15.67 | 74.32 | 284.15 | 0.9631 | -487.7 | 999999 | |
| 0.00 | 0.95 | 0.00 | 1.62 | 13.84 | 14.74 | 73.39 | 283.61 | 0.9587 | -372.0 | -336.4 | |
| 0.00 | 0.95 | 0.00 | 1.55 | 15.23 | 13.82 | 72.47 | 285.09 | 0.9543 | -103.0 | -225.7 | |
| 0.00 | 1.46 | 0.00 | 2.05 | 14.14 | 10.70 | 69.35 | 284.07 | 0.9370 | 170.0 | 112.3 | |
| 0.00 | 1.20 | 0.00 | 1.65 | 13.92 | 10.20 | 68.85 | 283.85 | 0.9340 | 317.0 | 280.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
