SDO HMI 2014-11-15 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.99 | 0.00 | 4.13 | 14.28 | 293.91 | -6.88 | 30.67 | 0.2463 | 231.4 | 63.9 | |
|
previous
or next observation for the same group /

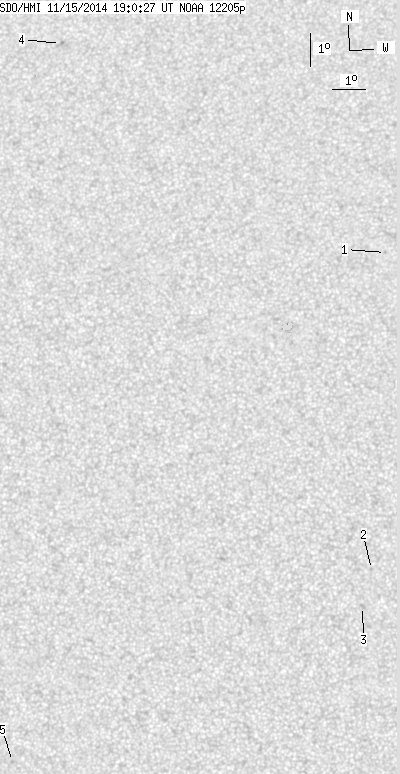

back to the solar disc SDO HMI 2014-11-15 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.53 | 18.41 | 299.22 | -1.58 | 5.55 | 0.2716 | -728.0 | -575.2 | |
| 0.00 | 1.20 | 0.00 | 0.60 | 8.83 | 298.85 | -1.95 | 17.72 | 0.1109 | 851.0 | 647.5 | |
| 0.00 | 2.15 | 0.00 | 1.07 | 7.73 | 298.58 | -2.21 | 23.99 | 0.0946 | 806.0 | 678.4 | |
| 0.00 | 2.49 | 0.00 | 1.36 | 24.91 | 288.43 | -12.36 | 27.22 | 0.4264 | -696.0 | -706.5 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 3.08 | 288.10 | -12.69 | 88.41 | 0.2205 | 924.0 | 738.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
