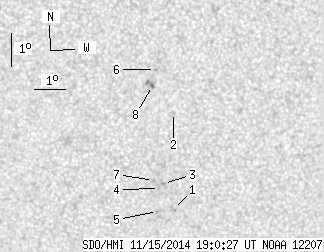

SDO HMI 2014-11-15 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 14.26 | 0.33 | 7.84 | -9.86 | 323.16 | 22.37 | 240.23 | 0.4347 | 781.1 | 681.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.09 | 0.00 | 1.72 | -11.67 | 323.69 | 22.89 | 237.13 | 0.4554 | 704.0 | 627.1 | |
| 0.00 | 1.37 | 0.00 | 0.75 | -8.72 | 323.47 | 22.67 | 242.79 | 0.4302 | 396.0 | 296.9 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -10.87 | 323.29 | 22.50 | 238.24 | 0.4438 | 764.0 | 678.8 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -11.02 | 323.17 | 22.38 | 237.81 | 0.4434 | 898.0 | 772.4 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -11.73 | 323.17 | 22.37 | 236.45 | 0.4490 | 920.0 | 694.2 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -7.41 | 322.81 | 22.01 | 244.96 | 0.4120 | 823.0 | 699.2 | |
| 0.00 | 1.37 | 0.00 | 0.76 | -10.77 | 322.96 | 22.16 | 238.05 | 0.4386 | 861.0 | 808.4 | |
| 0.60 | 3.78 | 0.33 | 2.05 | -7.89 | 322.74 | 21.94 | 243.83 | 0.4141 | 857.7 | 812.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
