SDO HMI 2014-11-15 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.09 | 142.04 | 5.69 | 73.85 | -12.00 | 309.06 | 8.26 | 206.95 | 0.2999 | -107.9 | -111.6 | |
|
previous
or next observation for the same group /

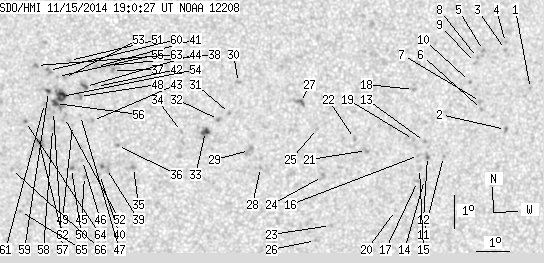

back to the solar disc SDO HMI 2014-11-15 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.60 | -11.10 | 319.24 | 18.45 | 232.57 | 0.3927 | 768.0 | 615.1 | |
| 0.00 | 1.98 | 0.00 | 1.07 | -12.34 | 318.53 | 17.73 | 228.97 | 0.3961 | 850.0 | 716.3 | |
| 0.00 | 1.29 | 0.00 | 0.69 | -9.90 | 318.38 | 17.58 | 233.84 | 0.3702 | 743.0 | 613.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -9.69 | 318.37 | 17.57 | 234.30 | 0.3681 | 860.0 | 710.0 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -9.92 | 317.69 | 16.89 | 232.70 | 0.3613 | 946.0 | 790.0 | |
| 0.00 | 1.37 | 0.00 | 0.74 | -11.72 | 317.73 | 16.93 | 228.93 | 0.3799 | 977.0 | 706.9 | |
| 0.00 | 2.23 | 0.00 | 1.19 | -11.47 | 317.68 | 16.88 | 229.35 | 0.3768 | 912.0 | 609.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -10.13 | 317.51 | 16.71 | 231.95 | 0.3611 | 999.0 | 828.8 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -10.28 | 317.46 | 16.66 | 231.52 | 0.3619 | 891.0 | 713.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -10.86 | 317.30 | 16.50 | 230.00 | 0.3657 | 747.0 | 712.6 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -13.14 | 316.62 | 15.82 | 224.22 | 0.3823 | 848.0 | 646.8 | |
| 0.00 | 2.41 | 0.00 | 1.29 | -13.14 | 316.11 | 15.31 | 223.31 | 0.3765 | 971.0 | 814.4 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -12.67 | 315.99 | 15.19 | 223.96 | 0.3698 | 825.0 | 701.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -13.85 | 316.06 | 15.26 | 221.92 | 0.3843 | 712.0 | 541.2 | |
| 0.00 | 1.72 | 0.00 | 0.92 | -13.50 | 315.88 | 15.08 | 222.20 | 0.3783 | 696.0 | 633.0 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.10 | 315.82 | 15.03 | 222.84 | 0.3730 | 864.0 | 696.6 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -13.91 | 315.84 | 15.05 | 221.41 | 0.3826 | 874.0 | 688.2 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -11.07 | 315.55 | 14.76 | 226.39 | 0.3467 | 918.0 | 737.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -12.61 | 315.64 | 14.84 | 223.43 | 0.3651 | 831.0 | 680.2 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -14.80 | 315.21 | 14.41 | 218.66 | 0.3868 | 75.0 | 79.4 | |
| 0.00 | 2.06 | 0.00 | 1.09 | -12.93 | 314.18 | 13.38 | 219.92 | 0.3531 | 930.0 | 804.5 | |
| 0.00 | 1.72 | 0.00 | 0.91 | -12.55 | 313.79 | 12.99 | 219.79 | 0.3443 | 848.0 | 671.0 | |
| 0.00 | 1.46 | 0.00 | 0.78 | -15.24 | 313.18 | 12.39 | 213.86 | 0.3730 | 720.0 | 588.2 | |
| 0.00 | 3.44 | 0.00 | 1.82 | -13.71 | 312.85 | 12.05 | 215.62 | 0.3498 | 767.0 | 578.0 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -12.23 | 312.62 | 11.82 | 217.80 | 0.3282 | 788.0 | 721.9 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -15.70 | 312.74 | 11.94 | 212.21 | 0.3753 | 851.0 | 603.6 | |
| 0.00 | 4.64 | 0.00 | 2.42 | -11.43 | 312.06 | 11.27 | 218.04 | 0.3121 | 1001.0 | 917.3 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -13.41 | 310.91 | 10.11 | 211.53 | 0.3280 | 925.0 | 766.5 | |
| 0.00 | 6.53 | 0.00 | 3.41 | -12.88 | 310.55 | 9.75 | 211.48 | 0.3175 | 1002.0 | 721.2 | |
| 0.00 | 2.15 | 0.00 | 1.11 | -10.80 | 310.14 | 9.34 | 214.22 | 0.2847 | 904.0 | 727.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -11.74 | 309.89 | 9.09 | 211.72 | 0.2957 | 957.0 | 809.8 | |
| 0.00 | 1.98 | 0.00 | 1.02 | -11.92 | 309.56 | 8.76 | 210.46 | 0.2954 | -187.0 | -76.9 | |
| 2.32 | 7.30 | 1.20 | 3.79 | -12.29 | 309.17 | 8.38 | 208.72 | 0.2975 | 623.1 | 252.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.28 | 308.44 | 7.64 | 206.58 | 0.2917 | -818.0 | -641.8 | |
| 0.00 | 2.49 | 0.00 | 1.29 | -13.38 | 307.00 | 6.20 | 200.68 | 0.2988 | -891.0 | -689.1 | |
| 0.00 | 1.72 | 0.00 | 0.89 | -12.70 | 306.49 | 5.69 | 199.94 | 0.2852 | -951.0 | -713.8 | |
| 0.00 | 1.89 | 0.00 | 0.97 | -10.40 | 306.30 | 5.50 | 202.45 | 0.2479 | -1023.0 | -819.6 | |
| 0.00 | 2.23 | 0.00 | 1.14 | -10.25 | 306.20 | 5.41 | 202.35 | 0.2449 | -947.0 | -684.7 | |
| 0.00 | 4.90 | 0.00 | 2.54 | -13.41 | 306.17 | 5.37 | 198.10 | 0.2946 | -627.0 | -786.0 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -13.59 | 305.96 | 5.16 | 197.24 | 0.2965 | -921.0 | -697.5 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -10.28 | 305.81 | 5.01 | 200.83 | 0.2429 | -1023.0 | -827.1 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -10.89 | 305.82 | 5.02 | 199.99 | 0.2526 | -703.0 | -592.8 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -11.93 | 305.72 | 4.92 | 198.28 | 0.2686 | -904.0 | -708.8 | |
| 0.86 | 3.52 | 0.44 | 1.80 | -10.89 | 305.49 | 4.69 | 198.76 | 0.2507 | -1124.7 | -889.6 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -13.65 | 305.50 | 4.70 | 195.74 | 0.2952 | -829.0 | -717.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.15 | 305.43 | 4.63 | 195.99 | 0.2869 | -790.0 | -558.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.77 | 305.35 | 4.55 | 197.17 | 0.2642 | -865.0 | -696.6 | |
| 0.00 | 3.18 | 0.00 | 1.63 | -11.19 | 305.31 | 4.51 | 197.72 | 0.2547 | -911.0 | -847.9 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -12.08 | 305.11 | 4.31 | 196.00 | 0.2680 | -908.0 | -598.2 | |
| 0.00 | 1.89 | 0.00 | 0.98 | -13.40 | 305.10 | 4.30 | 194.67 | 0.2894 | -906.0 | -826.0 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -10.09 | 304.99 | 4.19 | 197.91 | 0.2353 | -997.0 | -713.5 | |
| 0.00 | 3.35 | 0.00 | 1.72 | -11.83 | 304.86 | 4.07 | 195.38 | 0.2629 | -811.0 | -699.7 | |
| 0.00 | 1.98 | 0.00 | 1.01 | -10.61 | 304.85 | 4.05 | 196.68 | 0.2429 | -945.0 | -711.5 | |
| 5.59 | 18.56 | 2.86 | 9.50 | -11.19 | 304.76 | 3.97 | 195.69 | 0.2520 | -1215.0 | -907.8 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -10.58 | 304.64 | 3.84 | 195.89 | 0.2414 | -861.0 | -660.3 | |
| 1.63 | -54.00 | 0.84 | -54.00 | -11.40 | 304.58 | 3.79 | 194.80 | 0.2547 | -1178.4 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.64 | 304.53 | 3.73 | 194.34 | 0.2584 | -899.0 | -770.6 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -12.17 | 304.50 | 3.71 | 193.76 | 0.2669 | -1100.0 | -966.4 | |
| 0.69 | 2.32 | 0.35 | 1.19 | -11.03 | 304.37 | 3.57 | 194.35 | 0.2477 | -1150.4 | -831.5 | |
| 0.00 | 3.44 | 0.00 | 1.75 | -10.39 | 304.36 | 3.56 | 195.01 | 0.2372 | -796.0 | -831.8 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -11.40 | 304.25 | 3.45 | 193.55 | 0.2533 | -971.0 | -767.8 | |
| 0.00 | 5.16 | 0.00 | 2.65 | -12.62 | 304.11 | 3.32 | 191.99 | 0.2729 | -993.0 | -903.7 | |
| 0.00 | 2.06 | 0.00 | 1.05 | -10.24 | 304.00 | 3.20 | 193.70 | 0.2331 | -1098.0 | -902.2 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -11.95 | 303.68 | 2.88 | 190.95 | 0.2603 | -1143.0 | -1020.0 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -14.72 | 303.56 | 2.76 | 188.80 | 0.3059 | -945.0 | -792.2 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -13.42 | 303.27 | 2.47 | 188.54 | 0.2836 | -759.0 | -721.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
