SDO HMI 2014-11-15 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.66 | 16.93 | 1.36 | 8.71 | 16.68 | 294.22 | -6.58 | 23.90 | 0.2667 | -318.4 | -204.8 | |
|
previous
or next observation for the same group /

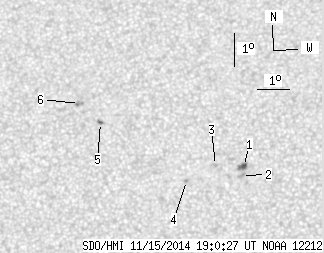

back to the solar disc SDO HMI 2014-11-15 19:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.06 | 5.24 | 1.05 | 2.68 | 16.14 | 296.24 | -4.56 | 18.30 | 0.2443 | -1038.0 | -869.8 | |
| 0.00 | 2.49 | 0.00 | 1.27 | 15.86 | 296.18 | -4.62 | 18.89 | 0.2402 | -1035.0 | -904.6 | |
| 0.00 | 1.89 | 0.00 | 0.97 | 16.16 | 295.37 | -5.43 | 21.43 | 0.2498 | -779.0 | -618.3 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 15.70 | 294.48 | -6.31 | 25.33 | 0.2486 | -937.0 | -739.1 | |
| 0.60 | 2.41 | 0.31 | 1.25 | 17.46 | 291.73 | -9.07 | 30.64 | 0.2963 | 719.9 | 591.3 | |
| 0.00 | 3.70 | 0.00 | 1.92 | 18.04 | 291.04 | -9.76 | 31.44 | 0.3104 | 873.0 | 809.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
