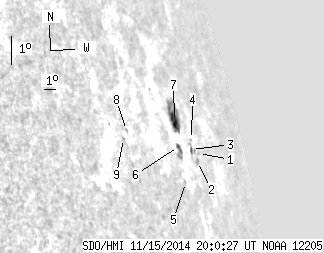

SDO HMI 2014-11-15 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.14 | 41.24 | 19.71 | 80.50 | 13.85 | 15.72 | 75.48 | 283.60 | 0.9679 | -191.6 | -82.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 1.73 | 13.12 | 17.81 | 77.56 | 282.82 | 0.9764 | 299.0 | 294.3 | |
| 0.00 | 2.32 | 0.00 | 5.06 | 12.89 | 17.43 | 77.18 | 282.59 | 0.9750 | 74.0 | 55.4 | |
| 0.00 | 2.75 | 0.00 | 5.81 | 13.28 | 16.99 | 76.75 | 282.99 | 0.9733 | -232.0 | -245.8 | |
| 0.00 | 0.60 | 0.00 | 1.30 | 13.57 | 17.30 | 77.06 | 283.29 | 0.9745 | 14.0 | -11.7 | |
| 0.00 | 0.69 | 0.00 | 1.31 | 12.35 | 15.36 | 75.12 | 282.04 | 0.9665 | -303.0 | -285.6 | |
| 0.86 | 6.79 | 1.64 | 12.99 | 13.44 | 15.48 | 75.24 | 283.17 | 0.9671 | -493.5 | -352.9 | |
| 9.28 | 25.09 | 18.07 | 49.05 | 14.19 | 15.71 | 75.47 | 283.95 | 0.9681 | -244.5 | -18.8 | |
| 0.00 | 1.20 | 0.00 | 1.77 | 14.15 | 10.60 | 70.35 | 284.04 | 0.9428 | 83.0 | 130.2 | |
| 0.00 | 1.03 | 0.00 | 1.48 | 13.93 | 10.16 | 69.92 | 283.81 | 0.9403 | 175.0 | 237.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
