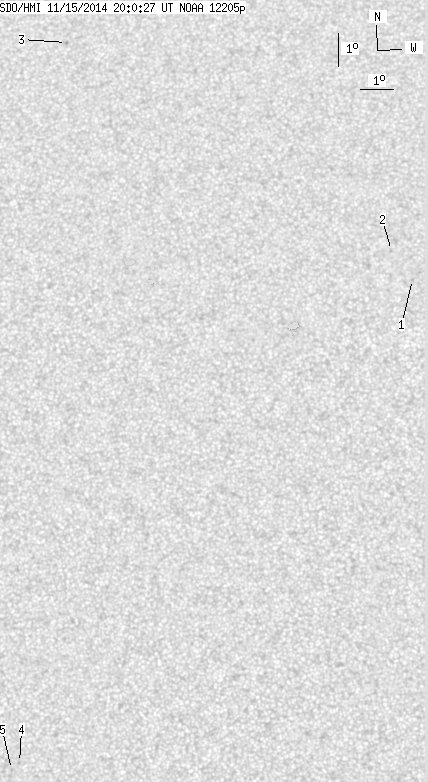

SDO HMI 2014-11-15 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.67 | 0.00 | 2.95 | 14.50 | 292.96 | -7.28 | 37.79 | 0.2842 | -161.2 | -181.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.03 | 0.00 | 0.53 | 17.54 | 299.88 | -0.36 | 1.35 | 0.2559 | -784.0 | -576.4 | |
| 0.00 | 1.37 | 0.00 | 0.71 | 18.43 | 299.23 | -1.02 | 3.58 | 0.2714 | -744.0 | -523.4 | |
| 0.00 | 1.29 | 0.00 | 0.70 | 24.91 | 288.48 | -11.76 | 26.09 | 0.4222 | -930.0 | -746.1 | |
| 0.00 | 1.12 | 0.00 | 0.57 | 3.02 | 288.13 | -12.11 | 88.62 | 0.2106 | 949.0 | 748.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | 2.81 | 287.89 | -12.36 | 89.62 | 0.2147 | 703.0 | 552.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
