SDO HMI 2014-11-15 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.23 | 120.53 | 3.70 | 62.53 | -11.84 | 308.42 | 8.17 | 207.35 | 0.2955 | -124.2 | -197.2 | |
|
previous
or next observation for the same group /

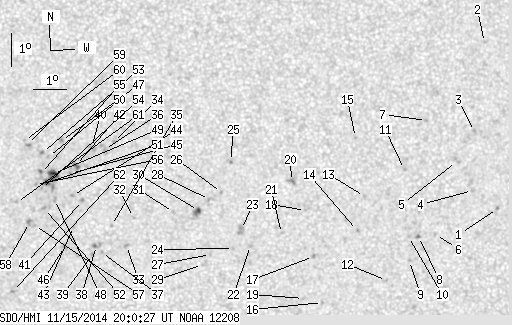

back to the solar disc SDO HMI 2014-11-15 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.60 | -12.33 | 318.58 | 18.34 | 229.95 | 0.4033 | 897.0 | 780.3 | |
| 0.00 | 1.29 | 0.00 | 0.68 | -7.27 | 317.89 | 17.65 | 240.16 | 0.3482 | 764.0 | 596.5 | |
| 0.00 | 1.89 | 0.00 | 1.01 | -9.96 | 317.70 | 17.46 | 233.52 | 0.3692 | 912.0 | 772.3 | |
| 0.00 | 1.55 | 0.00 | 0.83 | -11.76 | 317.75 | 17.50 | 229.77 | 0.3873 | 858.0 | 705.3 | |
| 0.00 | 2.66 | 0.00 | 1.42 | -10.87 | 317.19 | 16.94 | 230.72 | 0.3713 | 711.0 | 667.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -13.10 | 316.66 | 16.42 | 225.37 | 0.3885 | 840.0 | 627.4 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -9.60 | 316.18 | 15.93 | 231.83 | 0.3458 | 794.0 | 665.6 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -13.15 | 316.13 | 15.88 | 224.33 | 0.3830 | 906.0 | 797.3 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -13.89 | 315.89 | 15.65 | 222.55 | 0.3889 | 909.0 | 823.5 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -13.15 | 315.81 | 15.57 | 223.77 | 0.3794 | 760.0 | 583.3 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -11.09 | 315.56 | 15.32 | 227.43 | 0.3536 | 938.0 | 746.4 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -14.50 | 315.20 | 14.96 | 220.22 | 0.3887 | 756.0 | 569.7 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -11.90 | 314.36 | 14.11 | 223.42 | 0.3486 | 901.0 | 653.8 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -12.94 | 314.19 | 13.95 | 221.06 | 0.3592 | 956.0 | 810.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -10.09 | 313.99 | 13.75 | 226.56 | 0.3236 | 826.0 | 597.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -15.15 | 313.22 | 12.98 | 215.24 | 0.3774 | 803.0 | 659.7 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -13.72 | 312.86 | 12.61 | 216.85 | 0.3553 | 824.0 | 677.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -12.30 | 312.54 | 12.29 | 218.74 | 0.3339 | 756.0 | 621.1 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -15.02 | 312.62 | 12.37 | 214.17 | 0.3700 | 713.0 | 496.4 | |
| 0.00 | 3.70 | 0.00 | 1.93 | -11.41 | 312.06 | 11.82 | 219.42 | 0.3176 | 1019.0 | 932.7 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -13.00 | 311.82 | 11.58 | 215.80 | 0.3358 | 787.0 | 557.2 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -13.36 | 310.88 | 10.63 | 212.92 | 0.3319 | 859.0 | 783.4 | |
| 0.00 | 5.93 | 0.00 | 3.10 | -12.86 | 310.58 | 10.34 | 213.03 | 0.3223 | 985.0 | 768.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.45 | 310.36 | 10.11 | 211.48 | 0.3285 | 745.0 | 550.2 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -10.78 | 310.17 | 9.92 | 215.89 | 0.2900 | 857.0 | 770.4 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -11.72 | 309.92 | 9.68 | 213.37 | 0.3006 | 1027.0 | 819.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -13.63 | 309.65 | 9.41 | 209.40 | 0.3251 | 750.0 | 643.6 | |
| 0.00 | 1.98 | 0.00 | 1.03 | -11.93 | 309.56 | 9.32 | 211.99 | 0.3003 | -249.0 | -109.9 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -13.93 | 309.42 | 9.17 | 208.32 | 0.3276 | 546.0 | 428.4 | |
| 1.29 | 3.78 | 0.67 | 1.96 | -12.27 | 309.23 | 8.99 | 210.50 | 0.3022 | 834.3 | 343.4 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -12.32 | 308.47 | 8.22 | 208.24 | 0.2967 | -843.0 | -619.7 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -12.47 | 307.25 | 7.00 | 204.37 | 0.2898 | -740.0 | -554.2 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -13.33 | 307.06 | 6.81 | 202.60 | 0.3017 | -819.0 | -665.7 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -10.14 | 306.59 | 6.34 | 205.95 | 0.2496 | -857.0 | -668.1 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.71 | 306.58 | 6.34 | 201.97 | 0.2891 | -854.0 | -749.9 | |
| 0.00 | 5.16 | 0.00 | 2.64 | -10.38 | 306.32 | 6.07 | 204.58 | 0.2514 | -942.0 | -686.4 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -13.54 | 306.29 | 6.05 | 200.04 | 0.3003 | -827.0 | -677.5 | |
| 0.00 | 4.73 | 0.00 | 2.45 | -13.32 | 306.14 | 5.89 | 199.81 | 0.2960 | -913.0 | -815.3 | |
| 0.00 | 1.55 | 0.00 | 0.80 | -13.60 | 306.02 | 5.78 | 199.14 | 0.2997 | -818.0 | -642.6 | |
| 0.00 | 4.38 | 0.00 | 2.24 | -10.32 | 305.92 | 5.68 | 203.26 | 0.2477 | -985.0 | -766.7 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -11.93 | 305.68 | 5.44 | 200.05 | 0.2715 | -909.0 | -766.2 | |
| 0.52 | 4.21 | 0.26 | 2.16 | -10.86 | 305.45 | 5.20 | 200.69 | 0.2532 | -1119.5 | -820.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -12.73 | 305.42 | 5.18 | 198.22 | 0.2828 | -859.0 | -745.8 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -11.78 | 305.37 | 5.13 | 199.19 | 0.2674 | -838.0 | -686.7 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -11.11 | 305.30 | 5.06 | 199.82 | 0.2562 | -1177.0 | -860.0 | |
| 0.00 | 1.80 | 0.00 | 0.93 | -13.35 | 305.16 | 4.91 | 196.70 | 0.2913 | -1040.0 | -859.0 | |
| 0.00 | 1.46 | 0.00 | 0.74 | -10.10 | 305.01 | 4.77 | 200.16 | 0.2385 | -1086.0 | -838.5 | |
| 0.00 | 2.23 | 0.00 | 1.15 | -11.90 | 304.83 | 4.58 | 197.15 | 0.2664 | -776.0 | -719.5 | |
| 3.70 | 15.81 | 1.89 | 8.10 | -11.10 | 304.79 | 4.54 | 197.94 | 0.2534 | -1191.5 | -995.6 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -10.58 | 304.63 | 4.38 | 198.00 | 0.2442 | -786.0 | -619.3 | |
| 1.72 | -49.00 | 0.88 | -49.00 | -11.38 | 304.61 | 4.36 | 196.96 | 0.2569 | -1224.0 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.84 | -12.17 | 304.53 | 4.28 | 195.80 | 0.2694 | -1131.0 | -895.7 | |
| 0.00 | 1.72 | 0.00 | 0.88 | -10.46 | 304.44 | 4.20 | 197.45 | 0.2412 | -1064.0 | -895.5 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -11.56 | 304.43 | 4.18 | 196.09 | 0.2590 | -928.0 | -766.2 | |
| 0.00 | 3.09 | 0.00 | 1.58 | -11.10 | 304.39 | 4.15 | 196.48 | 0.2514 | -907.0 | -818.2 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -11.44 | 304.24 | 4.00 | 195.55 | 0.2561 | -821.0 | -686.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.69 | 304.23 | 3.99 | 194.26 | 0.2766 | -884.0 | -740.2 | |
| 0.00 | 3.01 | 0.00 | 1.55 | -12.60 | 304.08 | 3.83 | 193.82 | 0.2744 | -1223.0 | -1026.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -10.18 | 303.99 | 3.74 | 195.98 | 0.2345 | -725.0 | -771.3 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.09 | 303.90 | 3.65 | 195.72 | 0.2326 | -877.0 | -651.0 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -11.98 | 303.67 | 3.43 | 192.93 | 0.2628 | -1153.0 | -874.1 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -14.73 | 303.59 | 3.34 | 190.62 | 0.3076 | -976.0 | -756.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
