SDO HMI 2014-11-15 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.60 | 12.29 | 0.70 | 15.23 | 8.06 | 6.84 | 66.60 | 277.60 | 0.9178 | -343.4 | -269.9 | |
|
previous
or next observation for the same group /

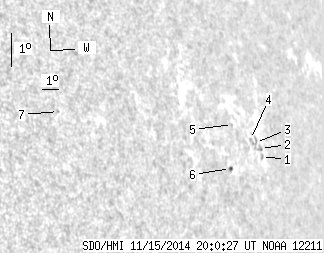

back to the solar disc SDO HMI 2014-11-15 20:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.72 | 0.00 | 2.21 | 7.75 | 7.74 | 67.50 | 277.24 | 0.9245 | -281.0 | -155.6 | |
| 0.00 | 2.41 | 0.00 | 3.09 | 7.99 | 7.75 | 67.50 | 277.50 | 0.9245 | -274.0 | -197.7 | |
| 0.00 | 4.47 | 0.00 | 5.66 | 8.18 | 7.42 | 67.18 | 277.71 | 0.9223 | -510.0 | -381.8 | |
| 0.00 | 1.20 | 0.00 | 1.50 | 8.29 | 7.07 | 66.83 | 277.83 | 0.9200 | -557.0 | -513.9 | |
| 0.00 | 0.34 | 0.00 | 0.41 | 8.79 | 5.89 | 65.64 | 278.39 | 0.9118 | -485.0 | -422.5 | |
| 0.60 | 1.63 | 0.70 | 1.91 | 7.50 | 5.33 | 65.09 | 276.97 | 0.9077 | 287.7 | 236.5 | |
| 0.00 | 0.52 | 0.00 | 0.45 | 9.62 | 355.43 | 55.19 | 279.78 | 0.8236 | -395.0 | -326.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
