SDO HMI 2014-11-15 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.74 | 42.63 | 21.78 | 87.02 | 13.81 | 15.84 | 76.15 | 283.55 | 0.9708 | -215.2 | -80.1 | |
|
previous
or next observation for the same group /

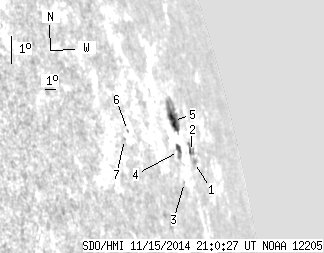

back to the solar disc SDO HMI 2014-11-15 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.92 | 0.00 | 6.54 | 12.88 | 17.16 | 77.47 | 282.58 | 0.9760 | -75.0 | -28.4 | |
| 0.77 | 5.50 | 1.69 | 12.18 | 13.23 | 16.96 | 77.26 | 282.93 | 0.9753 | -113.3 | -83.1 | |
| 0.00 | 0.60 | 0.00 | 1.18 | 12.36 | 15.32 | 75.63 | 282.05 | 0.9687 | -252.0 | -270.0 | |
| 0.00 | 6.88 | 0.00 | 13.63 | 13.30 | 15.43 | 75.74 | 283.02 | 0.9692 | -484.0 | -339.3 | |
| 9.97 | 25.52 | 20.09 | 51.68 | 14.23 | 15.72 | 76.03 | 283.98 | 0.9705 | -249.3 | 17.6 | |
| 0.00 | 0.95 | 0.00 | 1.43 | 14.16 | 10.62 | 70.93 | 284.03 | 0.9460 | 78.0 | 96.6 | |
| 0.00 | 0.26 | 0.00 | 0.38 | 13.90 | 10.15 | 70.46 | 283.77 | 0.9434 | 172.0 | 217.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
