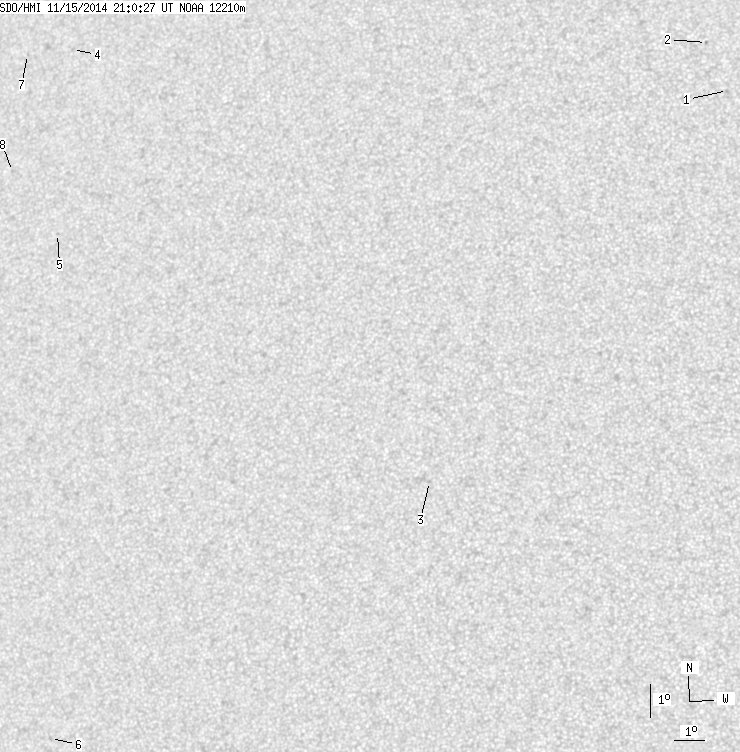

SDO HMI 2014-11-15 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.86 | 0.00 | 5.15 | 16.18 | 272.96 | -26.73 | 59.22 | 0.5167 | 83.8 | 102.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.29 | 0.00 | 0.69 | 22.38 | 288.58 | -11.11 | 27.92 | 0.3821 | -639.0 | -511.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | 23.89 | 287.76 | -11.93 | 27.63 | 0.4093 | 720.0 | 622.5 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 10.33 | 279.93 | -19.76 | 68.04 | 0.3602 | 686.0 | 546.5 | |
| 0.00 | 1.12 | 0.00 | 0.71 | 23.29 | 265.41 | -34.28 | 55.31 | 0.6315 | -501.0 | -355.4 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 17.57 | 266.27 | -33.42 | 63.42 | 0.5895 | 768.0 | 574.1 | |
| 0.00 | 1.89 | 0.00 | 1.10 | 2.44 | 267.72 | -31.97 | 89.85 | 0.5311 | 663.0 | 429.6 | |
| 0.00 | 0.52 | 0.00 | 0.33 | 23.09 | 263.69 | -36.00 | 56.67 | 0.6494 | -622.0 | -511.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 19.43 | 264.13 | -35.56 | 61.73 | 0.6250 | -405.0 | -368.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
