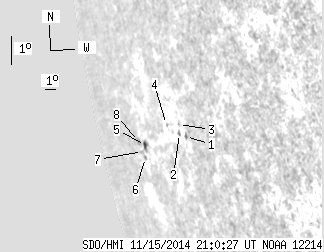

SDO HMI 2014-11-15 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.46 | 12.63 | 3.35 | 27.46 | -12.07 | 223.82 | -75.87 | 103.10 | 0.9740 | -1.8 | 54.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-15 21:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 2.43 | -11.68 | 228.01 | -71.68 | 103.14 | 0.9560 | 408.0 | 282.7 | |
| 0.00 | 1.72 | 0.00 | 2.96 | -11.61 | 227.46 | -72.23 | 103.01 | 0.9587 | 206.0 | 104.8 | |
| 0.00 | 0.26 | 0.00 | 0.44 | -11.33 | 227.54 | -72.15 | 102.73 | 0.9582 | 258.0 | 199.7 | |
| 0.00 | 0.43 | 0.00 | 0.79 | -11.39 | 226.25 | -73.44 | 102.65 | 0.9642 | -11.0 | -53.2 | |
| 1.46 | 3.44 | 3.35 | 7.88 | -12.18 | 223.11 | -76.58 | 103.13 | 0.9773 | -400.2 | -369.8 | |
| 0.00 | 0.77 | 0.00 | 1.83 | -12.57 | 222.74 | -76.95 | 103.49 | 0.9788 | -75.0 | -111.4 | |
| 0.00 | 1.46 | 0.00 | 3.51 | -12.40 | 222.49 | -77.20 | 103.29 | 0.9795 | 255.0 | 119.6 | |
| 0.00 | 3.09 | 0.00 | 7.62 | -12.11 | 222.22 | -77.47 | 102.97 | 0.9804 | 281.0 | 227.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
