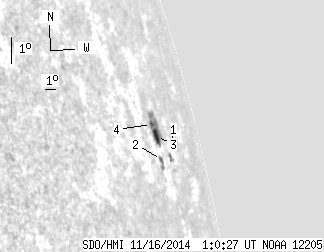

SDO HMI 2014-11-16 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.40 | 30.95 | 24.55 | 73.94 | 13.97 | 15.75 | 78.27 | 283.70 | 0.9789 | -204.4 | -19.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.69 | 3.44 | 1.81 | 9.11 | 13.45 | 17.07 | 79.59 | 283.17 | 0.9833 | -103.6 | -54.0 | |
| 1.20 | 4.99 | 2.80 | 11.59 | 13.40 | 15.55 | 78.07 | 283.12 | 0.9782 | -281.8 | -229.8 | |
| 6.53 | 22.52 | 15.37 | 53.24 | 14.10 | 15.63 | 78.15 | 283.83 | 0.9785 | -151.6 | 43.0 | |
| 1.98 | -3.00 | 4.57 | -3.00 | 14.48 | 15.34 | 77.86 | 284.22 | 0.9775 | -374.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
