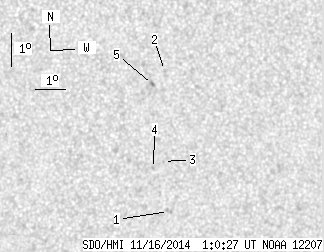

SDO HMI 2014-11-16 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.48 | 0.00 | 4.22 | -9.62 | 323.30 | 25.82 | 244.06 | 0.4803 | 718.8 | 637.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.58 | 0.00 | 1.47 | -11.59 | 323.70 | 26.22 | 240.68 | 0.4984 | 730.0 | 635.2 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -7.31 | 323.22 | 25.74 | 248.46 | 0.4650 | 511.0 | 456.0 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -10.06 | 323.39 | 25.91 | 243.22 | 0.4839 | 637.0 | 512.9 | |
| 0.00 | 1.29 | 0.00 | 0.73 | -10.27 | 323.07 | 25.59 | 242.55 | 0.4809 | 864.0 | 715.9 | |
| 0.00 | 1.63 | 0.00 | 0.91 | -7.72 | 322.85 | 25.37 | 247.33 | 0.4620 | 852.0 | 778.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
