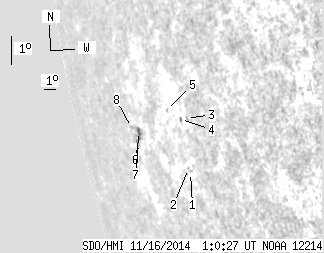

SDO HMI 2014-11-16 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.38 | 11.79 | 2.71 | 21.75 | -12.18 | 224.10 | -73.38 | 103.47 | 0.9637 | -31.8 | -61.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 01:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.93 | -13.23 | 227.49 | -70.00 | 104.97 | 0.9483 | 48.0 | -81.9 | |
| 0.00 | 0.26 | 0.00 | 0.40 | -13.11 | 227.38 | -70.10 | 104.83 | 0.9488 | 193.0 | 191.3 | |
| 0.00 | 0.95 | 0.00 | 1.39 | -11.55 | 228.15 | -69.33 | 103.29 | 0.9434 | 420.0 | 352.1 | |
| 0.00 | 1.55 | 0.00 | 2.34 | -11.60 | 227.59 | -69.89 | 103.28 | 0.9466 | 68.0 | 23.6 | |
| 0.00 | 0.60 | 0.00 | 0.97 | -11.38 | 226.43 | -71.05 | 102.90 | 0.9526 | 125.0 | 75.7 | |
| 1.38 | 4.13 | 2.71 | 8.14 | -12.18 | 223.08 | -74.40 | 103.35 | 0.9688 | -467.7 | -409.1 | |
| 0.00 | 2.32 | 0.00 | 4.72 | -12.57 | 222.65 | -74.83 | 103.70 | 0.9707 | -196.0 | -61.0 | |
| 0.00 | 1.38 | 0.00 | 2.86 | -12.10 | 222.20 | -75.28 | 103.17 | 0.9723 | 301.0 | 253.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
