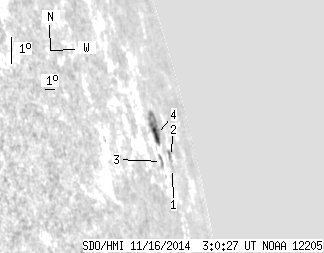

SDO HMI 2014-11-16 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.10 | 30.94 | 15.68 | 82.10 | 13.81 | 16.00 | 79.62 | 283.54 | 0.9833 | -118.4 | -50.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.63 | 0.00 | 4.76 | 13.00 | 17.03 | 80.65 | 282.73 | 0.9864 | -144.0 | -63.4 | |
| 0.00 | 4.81 | 0.00 | 14.28 | 13.36 | 17.18 | 80.79 | 283.09 | 0.9868 | -2.0 | -35.3 | |
| 0.00 | 3.95 | 0.00 | 10.04 | 13.29 | 15.46 | 79.07 | 283.01 | 0.9816 | -335.0 | -225.9 | |
| 6.10 | 20.55 | 15.68 | 53.02 | 14.10 | 15.69 | 79.31 | 283.84 | 0.9824 | -110.4 | -7.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
