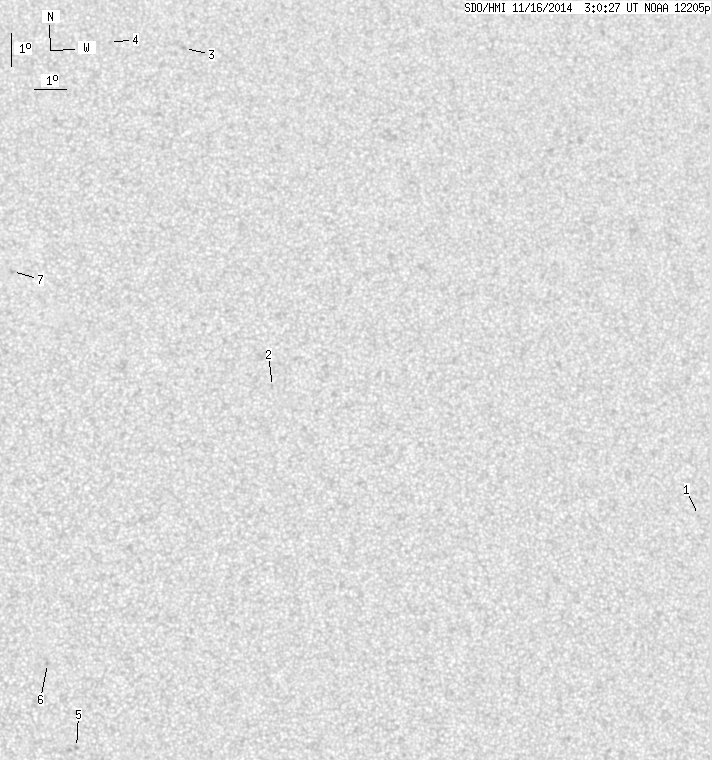

SDO HMI 2014-11-16 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.81 | 0.00 | 5.11 | 16.77 | 302.77 | 6.39 | 331.28 | 0.2780 | -99.1 | -110.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.33 | 11.68 | 319.41 | 23.03 | 292.56 | 0.4166 | -706.0 | -613.0 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 15.77 | 306.12 | 9.73 | 324.27 | 0.2798 | -688.0 | -567.1 | |
| 0.00 | 1.98 | 0.00 | 1.08 | 26.37 | 303.91 | 7.53 | 343.69 | 0.4197 | -694.0 | -546.5 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 26.58 | 301.42 | 5.04 | 349.01 | 0.4136 | 553.0 | 448.2 | |
| 0.00 | 1.72 | 0.00 | 0.85 | 5.00 | 299.90 | 3.51 | 302.90 | 0.0730 | 883.0 | 705.1 | |
| 0.00 | 1.29 | 0.00 | 0.64 | 7.50 | 299.05 | 2.66 | 330.96 | 0.0953 | 844.0 | 646.1 | |
| 0.00 | 1.55 | 0.00 | 0.80 | 19.35 | 298.10 | 1.71 | 354.37 | 0.2885 | -886.0 | -764.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
