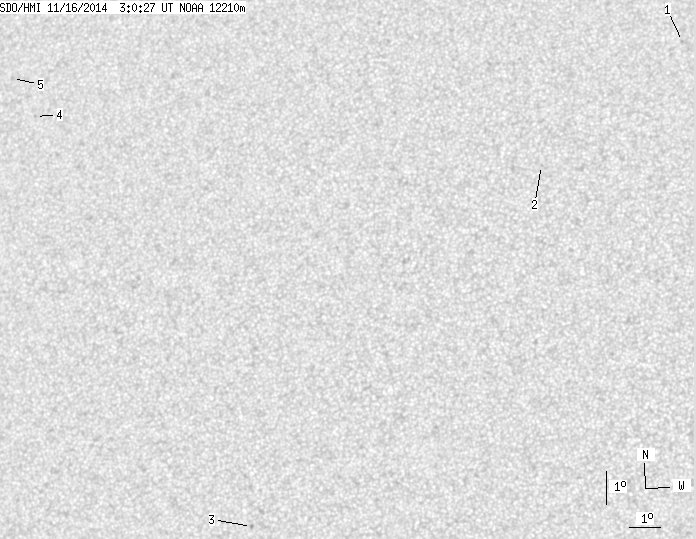

SDO HMI 2014-11-16 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.67 | 0.00 | 3.24 | 20.38 | 273.45 | -22.94 | 48.71 | 0.4891 | -343.6 | -302.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 03:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.42 | 24.97 | 288.37 | -8.02 | 18.46 | 0.4009 | -536.0 | -501.2 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 21.01 | 284.05 | -12.34 | 32.38 | 0.3741 | -862.0 | -704.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | 9.92 | 275.59 | -20.80 | 69.91 | 0.3740 | 938.0 | 766.1 | |
| 0.00 | 1.03 | 0.00 | 0.62 | 22.28 | 266.47 | -29.92 | 53.59 | 0.5757 | -548.0 | -502.8 | |
| 0.00 | 1.72 | 0.00 | 1.06 | 23.46 | 265.32 | -31.07 | 52.74 | 0.5971 | -710.0 | -562.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
