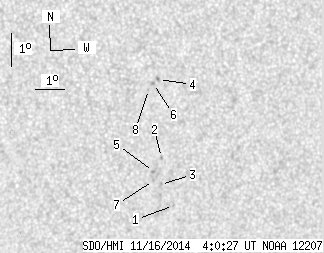

SDO HMI 2014-11-16 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.78 | 0.00 | 5.01 | -9.56 | 323.12 | 27.28 | 245.38 | 0.4997 | 763.2 | 665.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.40 | -11.51 | 323.82 | 27.98 | 242.39 | 0.5210 | 654.0 | 585.5 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -10.03 | 323.27 | 27.43 | 244.57 | 0.5043 | 678.0 | 626.9 | |
| 0.00 | 1.63 | 0.00 | 0.94 | -10.85 | 323.31 | 27.47 | 243.12 | 0.5100 | 705.0 | 629.9 | |
| 0.00 | 1.46 | 0.00 | 0.83 | -7.66 | 322.98 | 27.14 | 248.81 | 0.4869 | 832.0 | 746.9 | |
| 0.00 | 1.29 | 0.00 | 0.74 | -10.45 | 323.03 | 27.20 | 243.62 | 0.5037 | 892.0 | 736.1 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -7.78 | 322.82 | 26.98 | 248.47 | 0.4852 | 797.0 | 660.8 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -10.72 | 323.06 | 27.22 | 243.15 | 0.5058 | 795.0 | 707.9 | |
| 0.00 | 0.52 | 0.00 | 0.29 | -7.96 | 322.66 | 26.82 | 248.01 | 0.4839 | 753.0 | 511.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
