SDO HMI 2014-11-16 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.84 | 0.00 | 4.54 | 17.66 | 270.08 | -25.76 | 55.52 | 0.5022 | 58.2 | -58.9 | |
|
previous
or next observation for the same group /

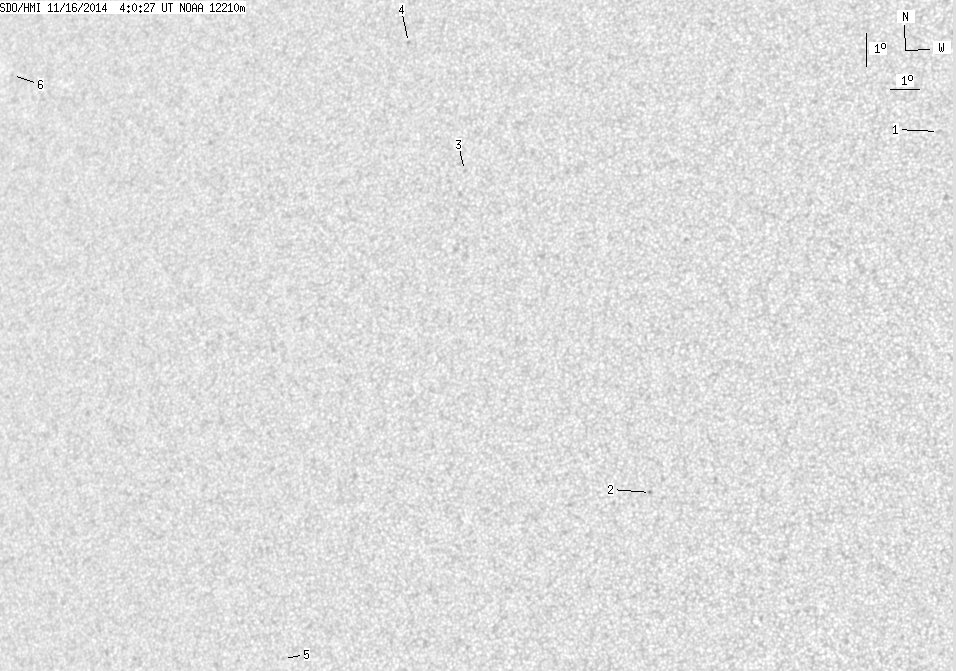

back to the solar disc SDO HMI 2014-11-16 04:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.15 | 0.00 | 1.14 | 20.98 | 284.02 | -11.81 | 31.33 | 0.3693 | -820.0 | -639.2 | |
| 0.00 | 1.29 | 0.00 | 0.69 | 9.89 | 275.62 | -20.22 | 69.48 | 0.3651 | 884.0 | 764.0 | |
| 0.00 | 1.38 | 0.00 | 0.80 | 19.54 | 268.24 | -27.60 | 56.02 | 0.5287 | -87.0 | -83.8 | |
| 0.00 | 1.38 | 0.00 | 0.84 | 23.50 | 265.32 | -30.51 | 52.24 | 0.5912 | -749.0 | -607.1 | |
| 0.00 | 0.95 | 0.00 | 0.55 | 4.71 | 263.67 | -32.17 | 85.50 | 0.5344 | 667.0 | 513.1 | |
| 0.00 | 0.69 | 0.00 | 0.52 | 22.02 | 249.45 | -46.39 | 62.86 | 0.7565 | 454.0 | 452.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
