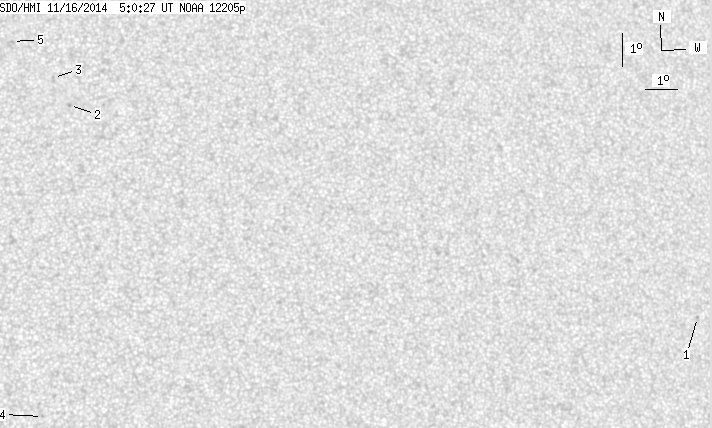

SDO HMI 2014-11-16 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.58 | 0.00 | 2.89 | 14.99 | 303.42 | 8.13 | 330.94 | 0.2817 | -402.4 | -365.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.61 | 10.84 | 319.44 | 24.14 | 289.87 | 0.4290 | -726.0 | -569.4 | |
| 0.00 | 1.46 | 0.00 | 0.75 | 17.50 | 299.91 | 4.62 | 343.25 | 0.2677 | -800.0 | -635.2 | |
| 0.00 | 0.77 | 0.00 | 0.40 | 18.37 | 299.44 | 4.14 | 345.73 | 0.2795 | -600.0 | -488.7 | |
| 0.00 | 1.03 | 0.00 | 0.51 | 8.13 | 298.92 | 3.63 | 326.40 | 0.1137 | 865.0 | 665.0 | |
| 0.00 | 1.20 | 0.00 | 0.62 | 19.48 | 298.17 | 2.88 | 350.67 | 0.2935 | -751.0 | -611.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
