SDO HMI 2014-11-16 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.18 | 93.22 | 1.65 | 49.44 | -12.06 | 309.26 | 13.97 | 221.31 | 0.3523 | 23.6 | -94.4 | |
|
previous
or next observation for the same group /

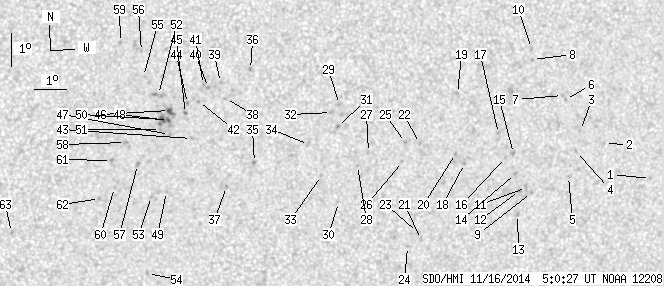

back to the solar disc SDO HMI 2014-11-16 05:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.64 | -13.41 | 320.43 | 25.14 | 236.49 | 0.4976 | 759.0 | 580.2 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -12.30 | 318.78 | 23.49 | 236.73 | 0.4676 | 719.0 | 478.3 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -11.89 | 317.95 | 22.66 | 236.59 | 0.4535 | 764.0 | 645.7 | |
| 0.00 | 1.29 | 0.00 | 0.72 | -12.53 | 317.87 | 22.58 | 235.30 | 0.4579 | 752.0 | 634.9 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -13.29 | 317.68 | 22.39 | 233.68 | 0.4620 | 593.0 | 469.2 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -10.93 | 317.38 | 22.09 | 237.79 | 0.4382 | 834.0 | 720.4 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -10.80 | 317.27 | 21.98 | 237.91 | 0.4358 | 832.0 | 628.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -9.69 | 316.22 | 20.93 | 238.96 | 0.4127 | 825.0 | 707.3 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -13.76 | 316.51 | 21.22 | 231.39 | 0.4518 | 642.0 | 512.2 | |
| 0.00 | 1.46 | 0.00 | 0.79 | -9.35 | 316.17 | 20.88 | 239.61 | 0.4093 | 856.0 | 612.1 | |
| 0.00 | 1.89 | 0.00 | 1.05 | -13.61 | 316.33 | 21.04 | 231.44 | 0.4481 | 839.0 | 653.8 | |
| 0.00 | 1.20 | 0.00 | 0.67 | -13.70 | 316.11 | 20.82 | 231.00 | 0.4463 | 959.0 | 821.5 | |
| 0.00 | 1.72 | 0.00 | 0.95 | -14.44 | 316.12 | 20.82 | 229.69 | 0.4534 | 598.0 | 492.8 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -13.17 | 315.93 | 20.64 | 231.72 | 0.4391 | 908.0 | 749.6 | |
| 0.00 | 1.89 | 0.00 | 1.04 | -12.55 | 315.82 | 20.52 | 232.72 | 0.4319 | 917.0 | 767.0 | |
| 0.00 | 0.95 | 0.00 | 0.52 | -12.67 | 315.57 | 20.27 | 232.16 | 0.4299 | 701.0 | 515.2 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -11.93 | 315.28 | 19.99 | 233.21 | 0.4195 | 909.0 | 699.5 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -12.83 | 314.26 | 18.96 | 230.02 | 0.4153 | 1011.0 | 810.8 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -10.68 | 313.88 | 18.59 | 233.78 | 0.3900 | 862.0 | 588.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -12.52 | 313.94 | 18.65 | 230.16 | 0.4083 | 821.0 | 662.2 | |
| 0.00 | 1.81 | 0.00 | 0.99 | -15.16 | 313.06 | 17.77 | 224.01 | 0.4258 | 650.0 | 602.8 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -12.19 | 312.77 | 17.48 | 228.99 | 0.3907 | 899.0 | 769.9 | |
| 0.00 | 1.72 | 0.00 | 0.94 | -14.94 | 312.91 | 17.62 | 224.15 | 0.4217 | 755.0 | 563.5 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -15.37 | 312.63 | 17.34 | 222.96 | 0.4234 | 809.0 | 719.4 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -12.15 | 312.32 | 17.03 | 228.34 | 0.3849 | 1053.0 | 783.7 | |
| 0.00 | 0.77 | 0.00 | 0.42 | -12.74 | 312.27 | 16.97 | 227.10 | 0.3904 | 706.0 | 535.1 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -12.44 | 311.17 | 15.88 | 225.79 | 0.3743 | 681.0 | 492.0 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -12.84 | 310.85 | 15.55 | 224.44 | 0.3750 | 790.0 | 627.2 | |
| 0.00 | 2.06 | 0.00 | 1.09 | -10.96 | 310.18 | 14.88 | 227.02 | 0.3462 | 886.0 | 630.7 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -13.97 | 310.32 | 15.03 | 221.36 | 0.3824 | 433.0 | 360.7 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -11.63 | 310.15 | 14.86 | 225.54 | 0.3534 | 933.0 | 767.5 | |
| 0.00 | 2.49 | 0.00 | 1.32 | -11.20 | 309.94 | 14.65 | 226.04 | 0.3461 | 811.0 | 585.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | -13.13 | 309.73 | 14.44 | 221.78 | 0.3660 | 863.0 | 564.5 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -12.17 | 309.27 | 13.98 | 222.72 | 0.3496 | 143.0 | 171.9 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -12.70 | 307.61 | 12.32 | 218.15 | 0.3384 | -825.0 | -760.9 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -9.86 | 307.37 | 12.08 | 223.55 | 0.3005 | -968.0 | -763.5 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -13.43 | 306.78 | 11.48 | 214.92 | 0.3398 | -826.0 | -685.6 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -10.73 | 306.63 | 11.34 | 219.80 | 0.3031 | -679.0 | -564.9 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -10.24 | 306.46 | 11.17 | 220.45 | 0.2951 | -767.0 | -598.2 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -10.39 | 306.10 | 10.80 | 219.19 | 0.2931 | -1034.0 | -883.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -10.30 | 305.94 | 10.65 | 218.99 | 0.2902 | -904.0 | -735.9 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -10.81 | 305.80 | 10.51 | 217.52 | 0.2955 | -725.0 | -643.8 | |
| 0.00 | 1.29 | 0.00 | 0.67 | -11.94 | 305.63 | 10.34 | 214.81 | 0.3089 | -805.0 | -667.8 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -10.87 | 305.47 | 10.18 | 216.51 | 0.2929 | -1009.0 | -874.8 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -11.18 | 305.42 | 10.12 | 215.75 | 0.2965 | -896.0 | -762.6 | |
| 1.12 | 17.63 | 0.58 | 9.13 | -11.08 | 304.92 | 9.63 | 214.60 | 0.2904 | -1199.3 | -872.2 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.81 | 304.95 | 9.66 | 213.25 | 0.3008 | -697.0 | -584.5 | |
| 0.60 | -46.00 | 0.31 | -46.00 | -11.39 | 304.90 | 9.61 | 213.94 | 0.2944 | -1090.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -13.57 | 304.92 | 9.63 | 210.15 | 0.3252 | -660.0 | -531.1 | |
| 1.46 | -46.00 | 0.76 | -46.00 | -11.35 | 304.72 | 9.43 | 213.49 | 0.2923 | -1212.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -11.66 | 304.67 | 9.37 | 212.77 | 0.2960 | -1006.0 | -835.2 | |
| 0.00 | 3.35 | 0.00 | 1.73 | -10.59 | 304.57 | 9.28 | 214.61 | 0.2803 | -770.0 | -883.5 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -13.72 | 304.46 | 9.17 | 208.73 | 0.3236 | -818.0 | -711.3 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -16.11 | 304.44 | 9.15 | 205.35 | 0.3583 | -807.0 | -556.2 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -10.04 | 304.10 | 8.81 | 214.37 | 0.2682 | -690.0 | -641.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -9.28 | 304.02 | 8.73 | 215.82 | 0.2570 | -819.0 | -691.8 | |
| 0.00 | 2.24 | 0.00 | 1.16 | -12.73 | 304.00 | 8.70 | 209.03 | 0.3055 | -1132.0 | -858.7 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -12.05 | 303.61 | 8.31 | 209.05 | 0.2925 | -791.0 | -707.9 | |
| 0.00 | 1.55 | 0.00 | 0.79 | -9.00 | 303.37 | 8.08 | 214.41 | 0.2469 | -912.0 | -619.0 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -13.43 | 303.31 | 8.02 | 206.03 | 0.3106 | -831.0 | -684.7 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.60 | 303.19 | 7.90 | 206.95 | 0.2973 | -982.0 | -750.4 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -13.77 | 302.86 | 7.57 | 204.29 | 0.3124 | -877.0 | -729.3 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -14.80 | 300.18 | 4.89 | 195.30 | 0.3135 | -761.0 | -635.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
