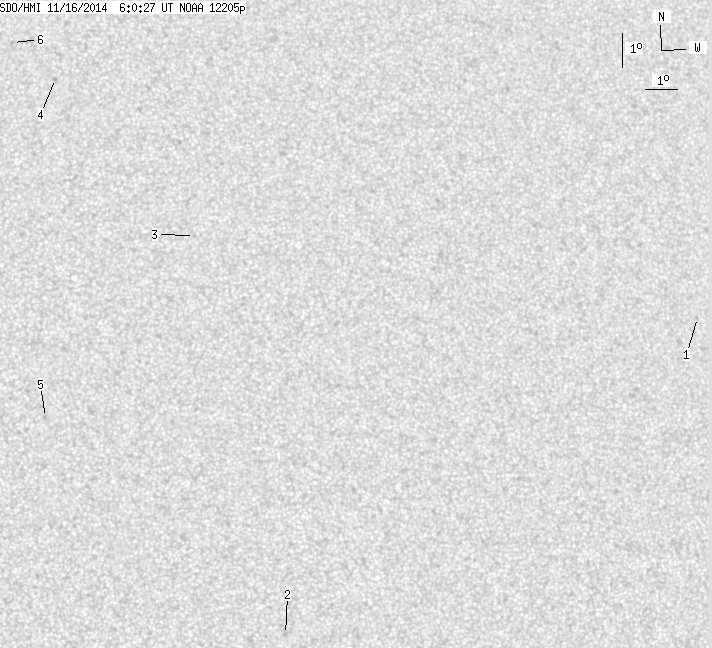

SDO HMI 2014-11-16 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.70 | 0.00 | 4.46 | 10.24 | 304.24 | 9.50 | 308.39 | 0.2441 | -247.7 | -2.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 06:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.61 | 10.85 | 319.42 | 24.67 | 289.56 | 0.4369 | -852.0 | -606.1 | |
| 0.00 | 2.41 | 0.00 | 1.22 | 1.63 | 306.08 | 11.34 | 264.73 | 0.1982 | 848.0 | 650.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | 13.54 | 303.60 | 8.86 | 321.53 | 0.2417 | -852.0 | -620.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | 18.35 | 299.45 | 4.71 | 343.90 | 0.2820 | -638.0 | -528.8 | |
| 0.00 | 1.81 | 0.00 | 0.90 | 8.12 | 298.94 | 4.20 | 322.45 | 0.1195 | 800.0 | 625.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | 19.47 | 298.13 | 3.38 | 349.08 | 0.2950 | -792.0 | -592.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
