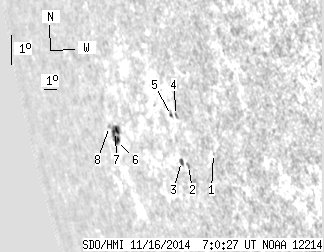

SDO HMI 2014-11-16 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.17 | 20.91 | 13.20 | 31.70 | -12.39 | 224.42 | -69.78 | 104.12 | 0.9455 | -145.4 | 50.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 07:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.71 | -12.61 | 230.42 | -63.78 | 105.23 | 0.9091 | -298.0 | -278.0 | |
| 0.00 | 1.81 | 0.00 | 2.31 | -13.06 | 228.39 | -65.81 | 105.39 | 0.9233 | 363.0 | 296.7 | |
| 0.95 | 2.75 | 1.23 | 3.58 | -12.96 | 227.92 | -66.28 | 105.21 | 0.9263 | 355.9 | 197.9 | |
| 0.00 | 1.38 | 0.00 | 1.75 | -11.54 | 228.25 | -65.95 | 103.74 | 0.9228 | 368.0 | 387.0 | |
| 0.00 | 1.38 | 0.00 | 1.78 | -11.56 | 227.86 | -66.34 | 103.70 | 0.9253 | 184.0 | 124.2 | |
| 2.58 | 11.61 | 4.28 | 19.23 | -12.55 | 222.68 | -71.52 | 104.05 | 0.9557 | -354.9 | -218.5 | |
| 4.64 | -6.00 | 7.69 | -6.00 | -12.28 | 222.67 | -71.53 | 103.77 | 0.9555 | -323.2 | 999999 | |
| 0.00 | 1.38 | 0.00 | 2.34 | -12.15 | 222.17 | -72.04 | 103.57 | 0.9580 | 304.0 | 281.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
