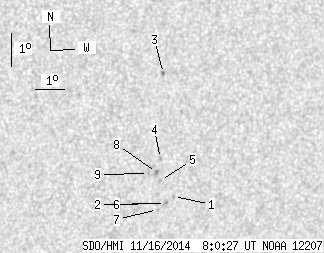

SDO HMI 2014-11-16 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.86 | 0.00 | 6.97 | -10.62 | 323.34 | 29.69 | 245.29 | 0.5383 | 687.3 | 575.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 08:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.66 | -11.38 | 323.88 | 30.22 | 244.34 | 0.5496 | 623.0 | 536.2 | |
| 0.00 | 1.46 | 0.00 | 0.86 | -11.58 | 323.62 | 29.96 | 243.81 | 0.5474 | 693.0 | 583.5 | |
| 0.00 | 1.46 | 0.00 | 0.85 | -7.63 | 323.17 | 29.51 | 250.46 | 0.5202 | 742.0 | 585.2 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -10.20 | 323.29 | 29.64 | 245.94 | 0.5351 | 620.0 | 502.7 | |
| 0.00 | 1.20 | 0.00 | 0.71 | -10.87 | 323.36 | 29.71 | 244.83 | 0.5399 | 571.0 | 393.2 | |
| 0.00 | 1.29 | 0.00 | 0.76 | -11.58 | 323.34 | 29.68 | 243.62 | 0.5437 | 801.0 | 600.7 | |
| 0.00 | 0.86 | 0.00 | 0.51 | -11.76 | 323.36 | 29.71 | 243.33 | 0.5451 | 477.0 | 447.7 | |
| 0.00 | 2.15 | 0.00 | 1.26 | -10.63 | 323.20 | 29.54 | 245.14 | 0.5363 | 848.0 | 738.4 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -10.65 | 322.92 | 29.27 | 244.90 | 0.5327 | 811.0 | 638.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
