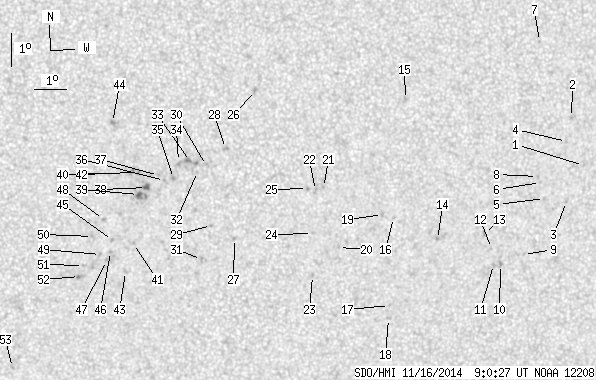

SDO HMI 2014-11-16 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.41 | 88.33 | 1.25 | 47.14 | -11.67 | 308.79 | 15.68 | 225.72 | 0.3673 | -72.3 | -218.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 09:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.77 | 0.00 | 0.44 | -10.70 | 318.94 | 25.83 | 242.06 | 0.4867 | 571.0 | 500.2 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -9.23 | 318.42 | 25.31 | 244.39 | 0.4699 | 910.0 | 695.8 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -11.79 | 318.48 | 25.37 | 239.63 | 0.4880 | 750.0 | 640.0 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -9.95 | 318.31 | 25.20 | 242.90 | 0.4731 | 891.0 | 678.2 | |
| 0.00 | 1.55 | 0.00 | 0.87 | -11.68 | 317.73 | 24.62 | 239.10 | 0.4774 | 769.0 | 566.9 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -11.19 | 317.55 | 24.44 | 239.84 | 0.4714 | 761.0 | 531.2 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -6.91 | 317.21 | 24.10 | 248.11 | 0.4388 | 757.0 | 613.8 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -11.00 | 317.43 | 24.32 | 240.08 | 0.4685 | 865.0 | 680.4 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -13.39 | 317.20 | 24.09 | 235.48 | 0.4839 | 593.0 | 555.3 | |
| 0.00 | 2.58 | 0.00 | 1.45 | -13.68 | 316.46 | 23.35 | 234.15 | 0.4771 | 766.0 | 629.9 | |
| 0.00 | 1.20 | 0.00 | 0.68 | -13.68 | 316.23 | 23.12 | 233.90 | 0.4742 | 931.0 | 723.6 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -13.18 | 316.11 | 23.00 | 234.64 | 0.4685 | 744.0 | 616.0 | |
| 0.00 | 1.98 | 0.00 | 1.10 | -12.71 | 315.84 | 22.73 | 235.17 | 0.4610 | 787.0 | 638.5 | |
| 0.00 | 1.46 | 0.00 | 0.81 | -12.87 | 314.31 | 21.20 | 233.04 | 0.4430 | 863.0 | 749.4 | |
| 0.00 | 1.81 | 0.00 | 0.97 | -8.58 | 312.98 | 19.87 | 240.16 | 0.3891 | 867.0 | 639.4 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -12.16 | 312.82 | 19.71 | 232.41 | 0.4179 | 687.0 | 523.6 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -14.88 | 312.93 | 19.82 | 227.58 | 0.4457 | 718.0 | 543.0 | |
| 0.00 | 1.81 | 0.00 | 1.00 | -15.29 | 312.93 | 19.82 | 226.90 | 0.4499 | 698.0 | 495.0 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -12.07 | 312.46 | 19.35 | 232.10 | 0.4124 | 923.0 | 776.4 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -13.06 | 311.12 | 18.01 | 228.20 | 0.4058 | 820.0 | 593.6 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -11.21 | 310.52 | 17.41 | 230.93 | 0.3797 | 966.0 | 801.6 | |
| 0.00 | 1.98 | 0.00 | 1.06 | -11.30 | 310.27 | 17.16 | 230.35 | 0.3775 | 723.0 | 686.7 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -13.91 | 310.36 | 17.25 | 225.40 | 0.4059 | 108.0 | 183.1 | |
| 0.00 | 0.52 | 0.00 | 0.28 | -12.61 | 310.26 | 17.15 | 227.68 | 0.3909 | 887.0 | 736.7 | |
| 0.00 | 1.12 | 0.00 | 0.60 | -11.23 | 310.02 | 16.91 | 230.07 | 0.3736 | 937.0 | 819.0 | |
| 0.00 | 2.75 | 0.00 | 1.44 | -8.23 | 308.24 | 15.13 | 233.96 | 0.3210 | -806.0 | -614.3 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -12.73 | 307.80 | 14.69 | 223.08 | 0.3638 | -804.0 | -609.1 | |
| 0.00 | 2.32 | 0.00 | 1.22 | -9.97 | 307.38 | 14.27 | 228.08 | 0.3278 | -797.0 | -699.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -12.32 | 307.06 | 13.95 | 222.41 | 0.3508 | -744.0 | -637.9 | |
| 0.00 | 2.41 | 0.00 | 1.26 | -10.48 | 306.82 | 13.71 | 225.77 | 0.3266 | -533.0 | -531.9 | |
| 0.00 | 1.81 | 0.00 | 0.96 | -13.36 | 306.80 | 13.69 | 219.91 | 0.3606 | -870.0 | -726.7 | |
| 0.00 | 0.77 | 0.00 | 0.41 | -10.66 | 306.54 | 13.43 | 224.81 | 0.3254 | -605.0 | -497.2 | |
| 0.00 | 5.76 | 0.00 | 3.01 | -10.36 | 306.31 | 13.20 | 225.00 | 0.3192 | -935.0 | -843.7 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -10.35 | 305.94 | 12.83 | 224.20 | 0.3148 | -346.0 | -596.4 | |
| 0.00 | 1.81 | 0.00 | 0.94 | -10.87 | 305.81 | 12.70 | 222.76 | 0.3194 | -912.0 | -794.6 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -10.93 | 305.53 | 12.42 | 222.01 | 0.3170 | -945.0 | -782.6 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -10.77 | 305.34 | 12.23 | 221.91 | 0.3130 | -667.0 | -506.9 | |
| 1.29 | 3.52 | 0.67 | 1.84 | -11.13 | 304.99 | 11.88 | 220.30 | 0.3136 | -1160.5 | -925.9 | |
| 1.12 | 7.14 | 0.58 | 3.72 | -11.34 | 304.75 | 11.64 | 219.29 | 0.3137 | -1225.1 | -940.0 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -10.67 | 304.72 | 11.61 | 220.65 | 0.3050 | -974.0 | -796.9 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -12.85 | 304.66 | 11.55 | 216.16 | 0.3323 | -819.0 | -655.9 | |
| 0.00 | 2.67 | 0.00 | 1.38 | -10.67 | 304.51 | 11.40 | 220.13 | 0.3026 | -802.0 | -848.5 | |
| 0.00 | 1.89 | 0.00 | 1.00 | -13.71 | 304.45 | 11.34 | 214.15 | 0.3418 | -886.0 | -625.9 | |
| 0.00 | 2.41 | 0.00 | 1.24 | -9.14 | 303.87 | 10.76 | 222.04 | 0.2765 | -1084.0 | -930.2 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -12.75 | 304.00 | 10.89 | 214.76 | 0.3246 | -1118.0 | -767.3 | |
| 0.00 | 1.55 | 0.00 | 0.81 | -13.08 | 303.95 | 10.84 | 214.05 | 0.3288 | -890.0 | -627.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -13.36 | 303.84 | 10.73 | 213.30 | 0.3315 | -890.0 | -724.5 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -12.10 | 303.70 | 10.59 | 215.20 | 0.3130 | -923.0 | -631.8 | |
| 0.00 | 1.38 | 0.00 | 0.72 | -13.17 | 303.65 | 10.54 | 213.14 | 0.3272 | -847.0 | -732.2 | |
| 0.00 | 1.72 | 0.00 | 0.90 | -12.62 | 303.38 | 10.27 | 213.44 | 0.3171 | -839.0 | -740.5 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -13.51 | 303.14 | 10.03 | 211.30 | 0.3273 | -841.0 | -674.2 | |
| 0.00 | 2.24 | 0.00 | 1.17 | -13.85 | 303.03 | 9.92 | 210.48 | 0.3311 | -987.0 | -852.5 | |
| 0.00 | 1.20 | 0.00 | 0.64 | -16.67 | 301.06 | 7.95 | 201.80 | 0.3583 | -719.0 | -500.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
