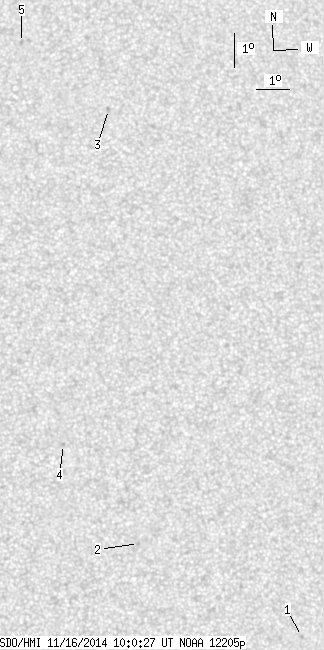

SDO HMI 2014-11-16 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.23 | 0.00 | 3.69 | 11.33 | 301.08 | 8.52 | 309.82 | 0.2398 | 198.2 | 7.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-11-16 10:00:27 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.38 | 0.00 | 0.70 | 1.58 | 306.21 | 13.64 | 265.58 | 0.2376 | 879.0 | 694.9 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 4.38 | 301.30 | 8.74 | 281.19 | 0.1552 | 879.0 | 731.6 | |
| 0.00 | 2.15 | 0.00 | 1.11 | 17.41 | 300.78 | 8.21 | 331.83 | 0.2900 | -792.0 | -684.5 | |
| 0.00 | 1.12 | 0.00 | 0.56 | 7.34 | 299.09 | 6.53 | 305.77 | 0.1396 | 893.0 | 766.1 | |
| 0.00 | 1.46 | 0.00 | 0.76 | 19.50 | 298.12 | 5.56 | 342.48 | 0.3047 | -868.0 | -708.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
